Chapter 13: Alarm and event setup
TruVision DVR 12HD User Manual 95
8. Click Copy to copy these settings to other cameras, if required, and then click
Apply to save the changes.
9. Click Exit to return to live view.
Remote alarm host setup
If a remote alarm host is set, the recorder sends a signal to the host when an alarm is
triggered. The remote alarm host must have the TruVision Navigator server software
installed.

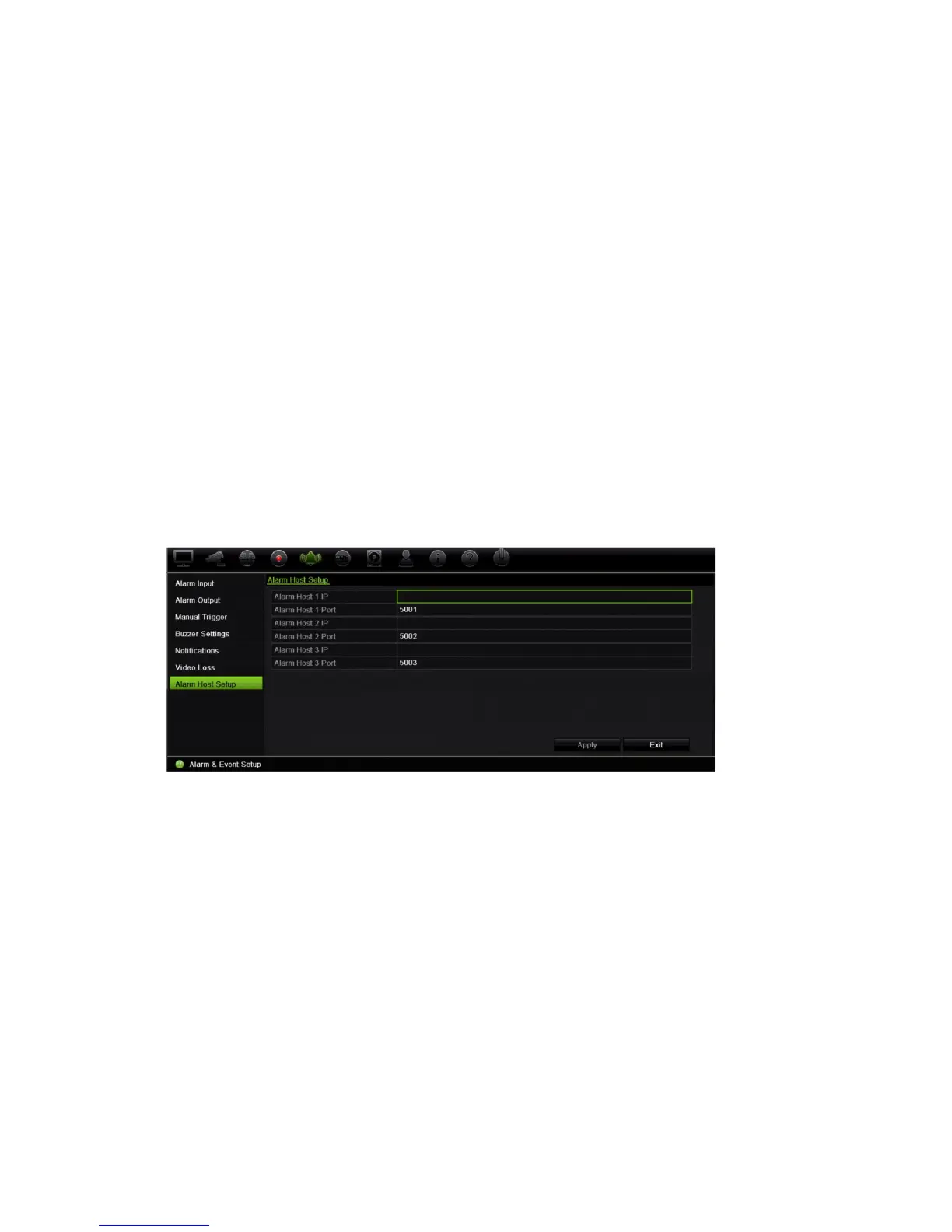

To set up a remote alarm host:
1. From the menu toolbar, click Alarm & Event Setup > Alarm Host Setup.
2. Enter Alarm Host IP and Alarm Host Port values.
Alarm host IP represents the IP of the remote PC where the Network Video
Surveillance software installed. The alarm host port value must be the same as
software’s alarm monitor port. Up to three alarm hosts can be set. For each alarm
host, the default port is 5001, 5002, and 5003.
3. Click Apply to save the settings.
4. Click Exit to return to live view.
