Appendix E: KTD-405 keypad
TruVision DVR 12HD User Manual 143

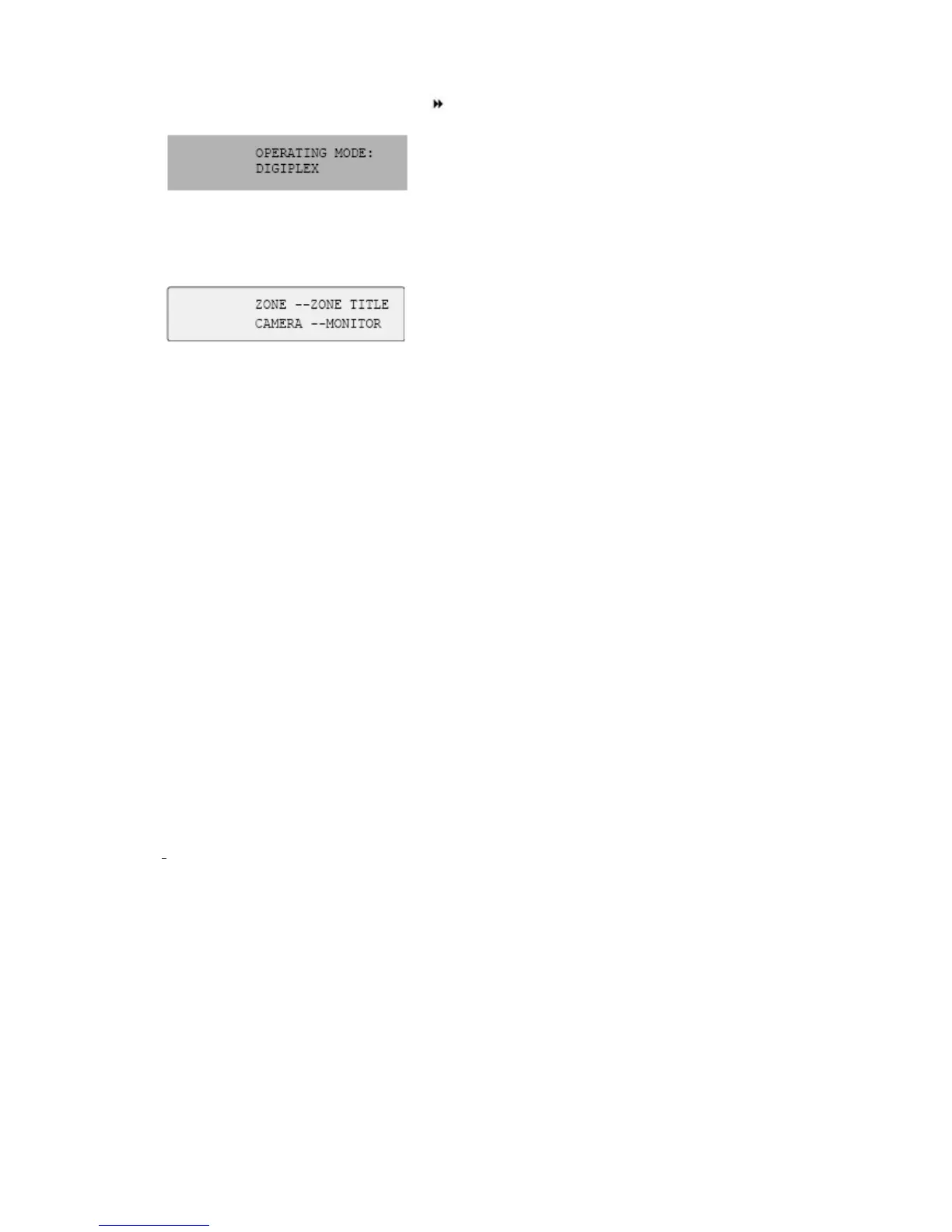

2. Scroll through the menus with the button until this menu appears:
3. Change Operating Mode to Zone by moving the joystick down.
4. Quit the menu by pressing the seq button. The display will show, for example:
5. To connect it to the recorder, press the zone button and enter the ID number of the
recorder. The default value is “1”.
6. To configure the recorder zone ID number, at the recorder enter the Monitor screen
by selecting Display Mode Settings in the main menu and select Monitor. Under
Zone ID, enter the zone ID value. The default value is “1”.
Note: The zone ID value must be identical for the recorder and keypad.
The recorder is now connected to the KTD-405 keypad.
Recorder and keypad functions
The KTD-405U acts as a recorder control keypad when connected to the recorder. The
keypad mimics many of the functions available from the front panel of the recorder.
Unavailable recorder functions
The following TVR 12 functions are unavailable when using the keypad to control the
recorder:
Shadow tour
Select motion detection or tampering zones
Archive records
Capture video
If these functions are required, it is recommended to use a mouse in conjunction with
the keypad as all recorder functions will then be available.
Unavailable keypad functions
The following keypad buttons are unavailable when using the keypad to control the
recorder:
To Next Page
