Interlogix TruVision User Manual

Appendix E: KTD-405 keypad
142 TruVision DVR 12HD User Manual

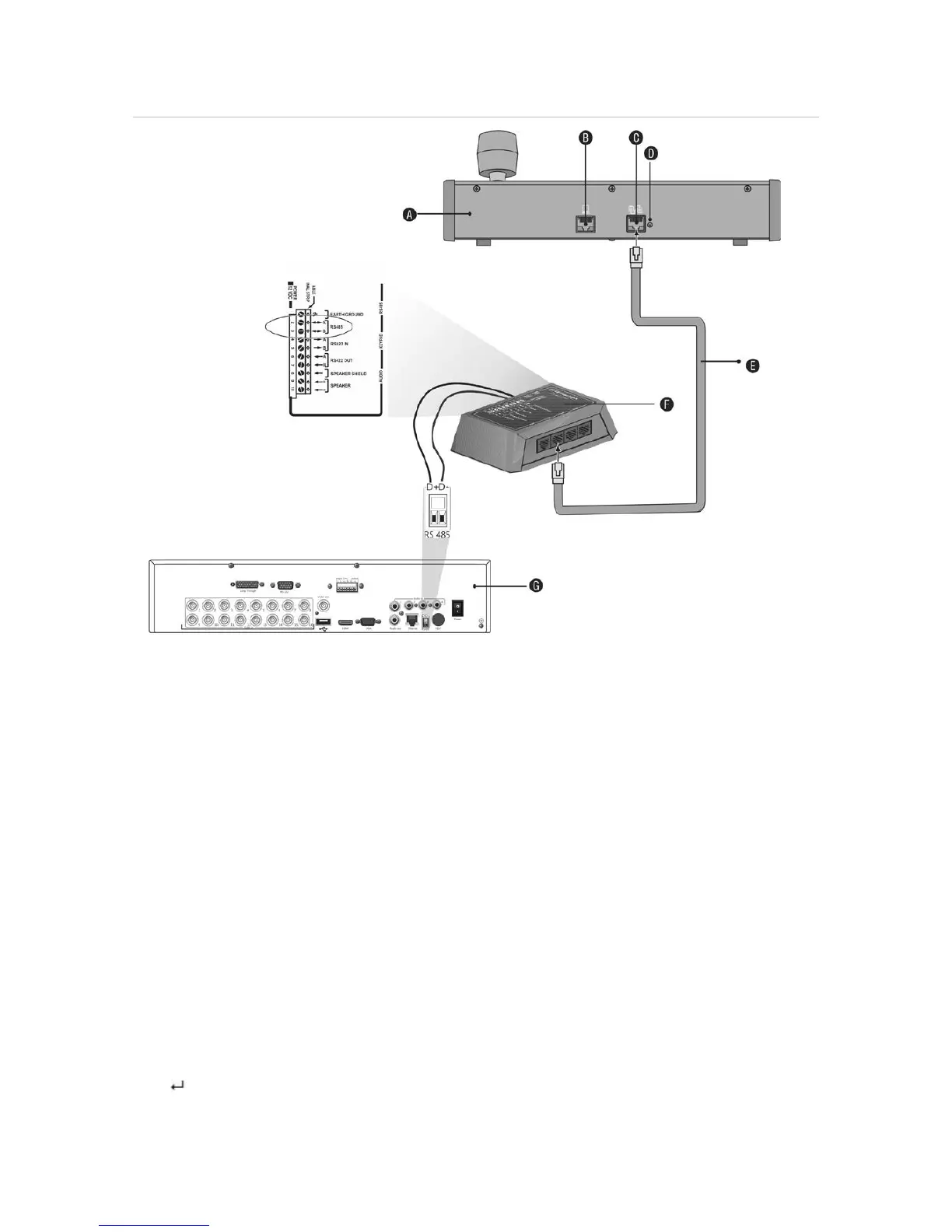

Figure 36: Keypad and recorder connections
A. KTD-405 keypad
B. RS-232 programming port
C. RS-485 and RS-422 in/out
D. RS-485 termination switch
E. RJ45 cable control (use the cable provided
with the equipment)
F. I/O box
G. Recorder back panel
See “Connecting a KTD-405 keypad and dome camera to the recorder” on page 148 for
information on how to connect both a keypad and dome camera to the recorder.
Setting the keypad to work with the recorder
The keypad must be in zone mode to connect correctly with the recorder.
Further information on connecting and programming the KTD-405 keypad can be found
in the user manual.
To set the keypad in zone mode:
1. Log into the keypad using the Admin password. Hold down the Enter button
( ) until a beep sounds and then enter the following code: 1 4 7 6. Push the seq
button to confirm.
