Intermec EasyCoder 201 II – Technical Manual
SETUP PARAMETERS, cont'd.
Print Defines, cont'd.

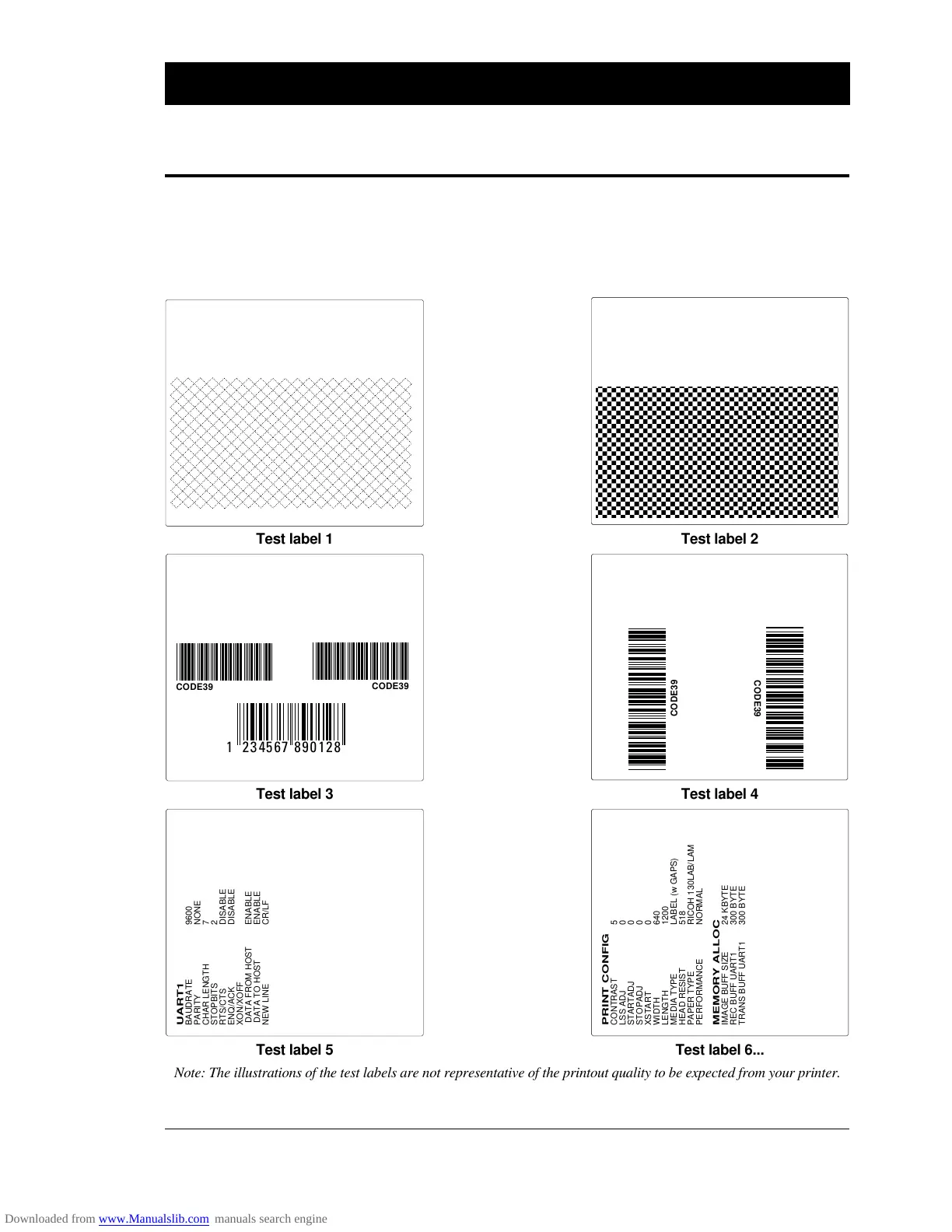

First, four test labels intended to facilitate adjustment of the
printhead alignment are printed. Then come two or more labels
showing the printer's current setup, before the loop starts all over
again.
676 ohms / 8 dots
Test label 1 Test label 2
Note: The illustrations of the test labels are not representative of the printout quality to be expected from your printer.
CODE39
CODE39
1234567890128
PRINT CONFIG
CONTRAST 5
LSS ADJ 0
STARTADJ 0
STOPADJ 0
XSTART 0
WIDTH 640
LENGTH 1200
MEDIA TYPE LABEL (w GAPS)
HEAD RESIST 518
PAPER TYPE RICOH 130LAB/LAM
PERFORMANCE NORMAL
MEMORY ALLOC
IMAGE BUFF SIZE 24 KBYTE
REC BUFF UART1 300 BYTE
TRANS BUFF UART1 300 BYTE
