Intermec EasyCoder 201 II – Technical Manual
INTERFACES, cont'd.
Serial Interface Board
MADE IN SWEDEN
Thermal Printer 201
Model #
1-201011-11
Serial #
115-230V 2.6-1.3A 50-60Hz
INTERMEC PRINTER AB
MADE IN SWEDEN
50105
This equipment complies with the requirements for a Class A computing device in FCC Rules
Part 15 Subpart J. Operation of this device in a residential area may cause harmful interference
requiring the user to take whatever steps may be necessary to correct the interference.
U
L
LISTED 65B5
R
N309
LR67809
V
DE
geprüfte
Sicherheit
"uart1:"
"uart3:"
"uart2:"

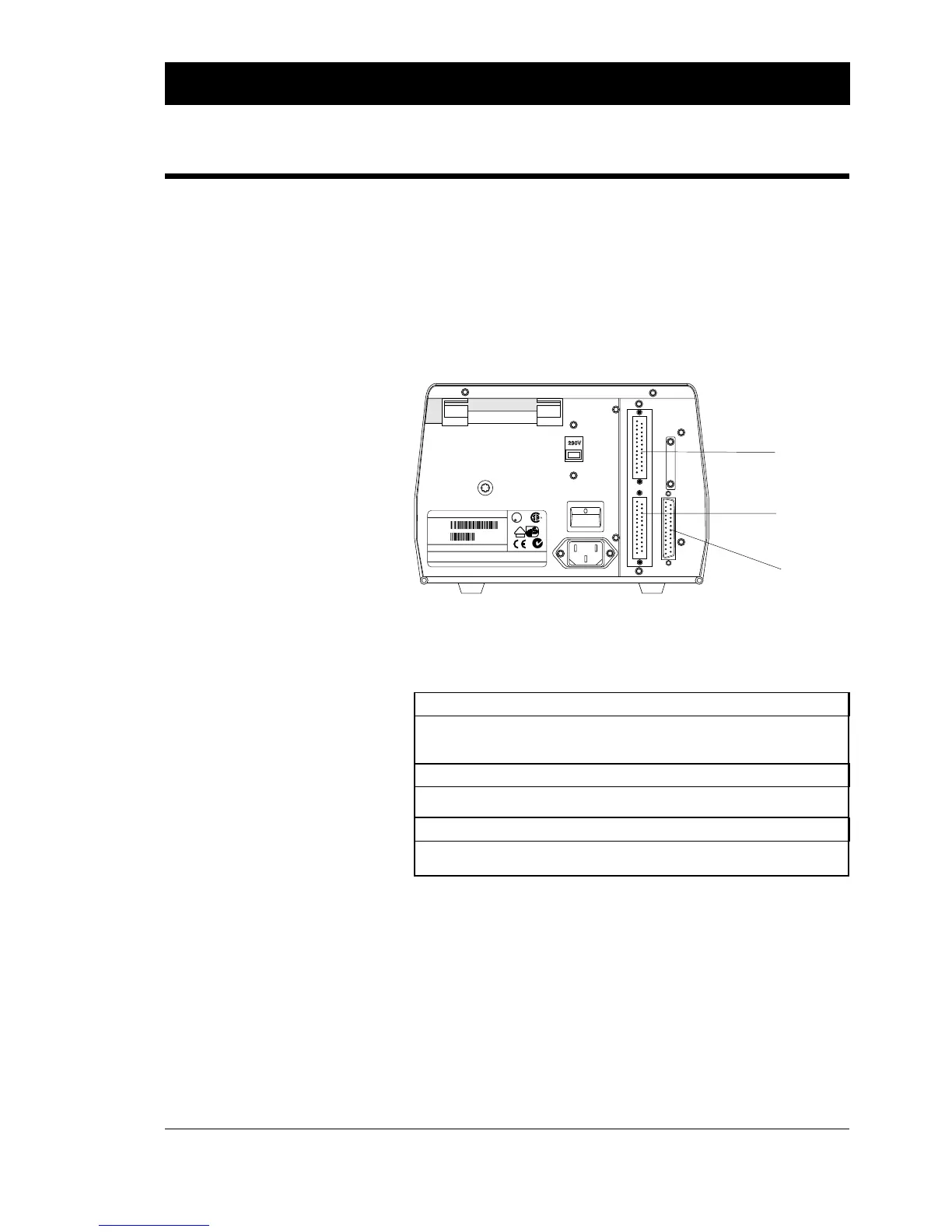

The Serial Interface Board adds two serial communication ports
("uart2:" and "uart3:") to the standard serial communication port
("uart1:").
The Serial Interface Board may either be bought separately as a kit
complete with installation instructions, or be factory installed.
With the Serial Interface Board installed, the following types of
interfaces can be selected:
"uart1:"
Fitted on printer's CPU pcb.
RS 232C Standard
20 mA Current Loop Option. Additional opto-couplers required.
"uart2:"
Fitted on serial interface pcb.
RS 232C
"uart3:"
Fitted on serial interface pcb.
RS 232C or 20 mA CL Select by strap.
