Intermec EasyCoder 201 II - Interfaces Communication Port Uart1; Technical Manual

73
Intermec EasyCoder 201 II – Technical Manual
MADE IN SWEDEN
Thermal Printer 201
Model #
1-201011-11
Serial #
115-230V 2.6-1.3A 50-60Hz
INTERMEC PRINTER AB
MADE IN SWEDEN
50105
This equipment complies with the requirements for a Class A computing device in FCC Rules
Part 15 Subpart J. Operation of this device in a residential area may cause harmful interference
requiring the user to take whatever steps may be necessary to correct the interference.
U
L
LISTED 65B5
R
N309
LR67809
V
DE
geprüfte
Sicherheit
INTERFACES
Communication Port
"uart1:"
All EasyCoder 201 II printers are fitted with a DB25 male interface
connector on their rear plates (comm. port "uart1:"). This connector
can be used for an RS 232C (standard), or a 20 mA current loop
interface depending on how the CPU board is strapped. In the latter
case, two optional opto-couplers must be fitted. The configuration
of the connection cable is also important.
If the printer is ordered without any connection cable, a suitable
cable can be procured locally and, if necessary, be modified
according to the pinout descriptions in this chapter.
NOTE!
A shielded communication cable is required in order to comply
with the FCC/DOC approval and to avoid
the risk of interference to radio communications.

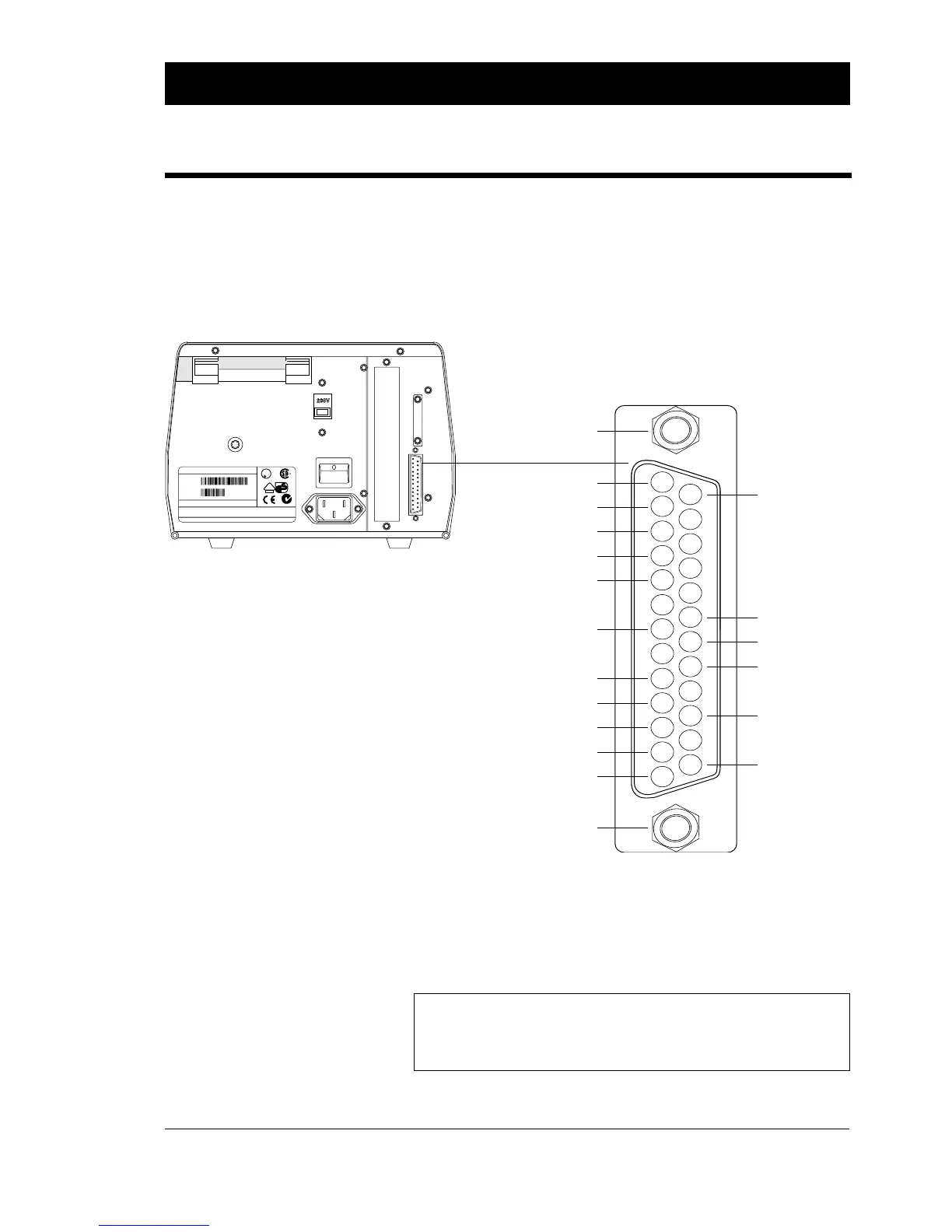

Signals on the printer's
communication port "uart1:"
GNDC
2
1
3
4
5
6
7
8
9
10
11
12
13
15
14
16
17
18
19
20
21
22
23
24
25
GNDC
TXD out
RXD in
RTS out
CTS in
GNDI
+20 mA 1
-20 mA 1
+TXD
-TXD
+20 mA 2
GNDC
-20 mA 2
+5V Ext.
+RXD
DTR out
-RXD
UART = Universal Asynchronous
Receiver and Transmitter
