Intermec EasyCoder 201 II – Technical Manual
PAPER DIMENSIONS, cont'd.
1
/. The last third of a label with maxi-
mum length cannot be used for print-
ing! Also see “Max. printable length”.
NORMAL ROLL PRINTERS:
← a → Web width (incl. backing paper):
Maximum .................................................. : 89.0 mm (3.50")
Minimum .................................................. : 40.0 mm (1.58")
← b → Label width (excl. backing paper):
Maximum .................................................. : 87.4 mm (3.44")
Minimum .................................................. : 38.4 mm (1.51")
← c → Label length:
Max. label length (6 dots/mm)
1
.................. : 2475 mm (97.4")
Max. label length (8 dots/mm)
1
.................. : 1875 mm (73.8")
Min. label length (all) ................................ : 15.0 mm (0.59")
Max. printable length (6 dots/mm) ............. : 1650 mm (65.0")
'
← d → Label gap:
Maximum .................................................. : 10.0 mm (0.39")
Recommended........................................... : 1.6 mm (0.06")
Minimum .................................................. : 1.2 mm (0.05")
The label stop sensor must be able to detect the extreme edges of the labels.
Therefore the corner radii must not exceed 2.0 mm (0.08").
← e → Backing paper:
The backing paper must not extend more than 1.6 mm (0.06") outside the
paper and should protrude equally on both sides.
Minimum transparency: 40% (DIN 53147)
“BIG ROLL” PRINTERS (7" internal roll):
← a → Web width (incl. backing paper):
Maximum .................................................. : 80.2 mm (3.16")
Minimum .................................................. : 40.0 mm (1.58")
← b → Label width (excl. backing paper):
Maximum .................................................. : 78.6 mm (3.10")
Minimum .................................................. : 38.4 mm (1.51")
← c → Label length:
Max. label length (6 dots/mm)
1
.................. : 2475 mm (97.4")
Max. label length (8 dots/mm)
1
.................. : 1875 mm (73.8")
Min. label length (all) ................................ : 15.0 mm (0.59")
Max. printable length (6 dots/mm) ............. : 1650 mm (65.0")
Max. printable length (8 dots/mm) ............. : 1250 mm (49.2")
← d → Label gap:
Maximum .................................................. : 10.0 mm (0.39")
Recommended........................................... : 1.6 mm (0.06")
Minimum .................................................. : 1.2 mm (0.05")
The label stop sensor must be able to detect the extreme edges of the labels.
Therefore the corner radii must not exceed 2.0 mm (0.08").
← e → Backing paper:
The backing paper must not extend more than 1.6 mm (0.06") outside the
paper and should protrude equally on both sides.
Minimum transparency: 40% (DIN 53147)

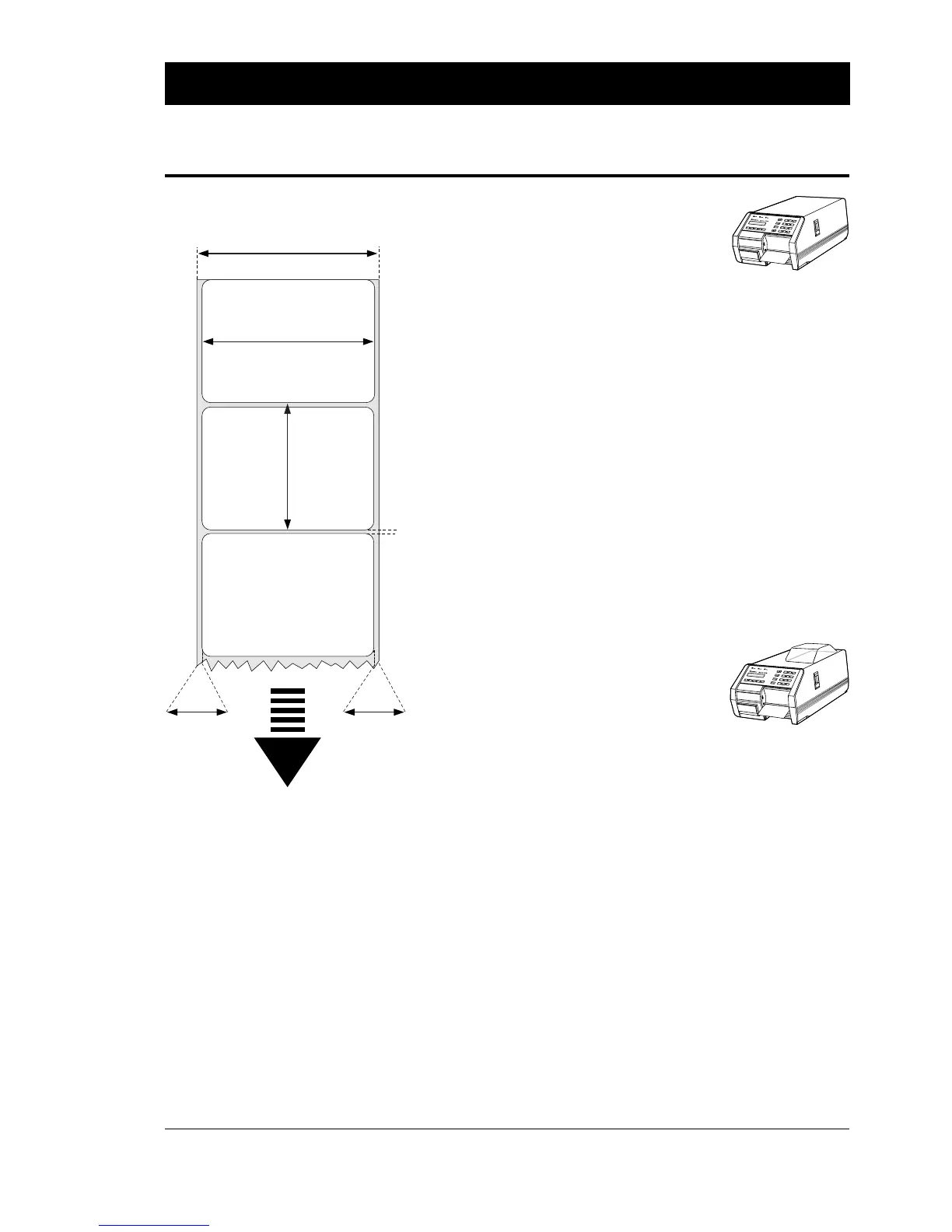

Self-adhesive Labels
a
e
b
c
d
SELF-ADHESIVE
LABELS
e
PAPER FEED
DIRECTION
