Intermec EasyCoder 201 II – Technical Manual
The RS 422/485 Interface Board adds two more serial communica-
tion ports ("uart2:" and "uart3:") to the standard serial communica-
tion port ("uart1:").
The RS 422/485 interface is galvanically insulated from the printer
in order to avoid electrical interference.
The RS 422/485 Interface Board may either be bought separately
as a kit complete with installation instructions, or be factory
installed.
With the RS 422/485 interface pcb installed, the following types of
interfaces can be selected:
"uart1:"
Fitted on printer's CPU- pcb.
RS 232C Standard
20 mA Current Loop Option. Additional opto-couplers required.
"uart2:"
Fitted on RS 422/485 interface pcb.
RS 422/RS 485 Type selected by straps and cable configuration
"uart3:"
Fitted on RS 422/485 interface pcb.
RS 232C
INTERFACES, cont'd.
Continued!
MADE IN SWEDEN
Thermal Printer 201
Model #
1-201011-11
Serial #
115-230V 2.6-1.3A 50-60Hz
INTERMEC PRINTER AB
MADE IN SWEDEN
50105
This equipment complies with the requirements for a Class A computing device in FCC Rules
Part 15 Subpart J. Operation of this device in a residential area may cause harmful interference
requiring the user to take whatever steps may be necessary to correct the interference.
U
L
LISTED 65B5
R
N309
LR67809
V
DE
geprüfte
Sicherheit

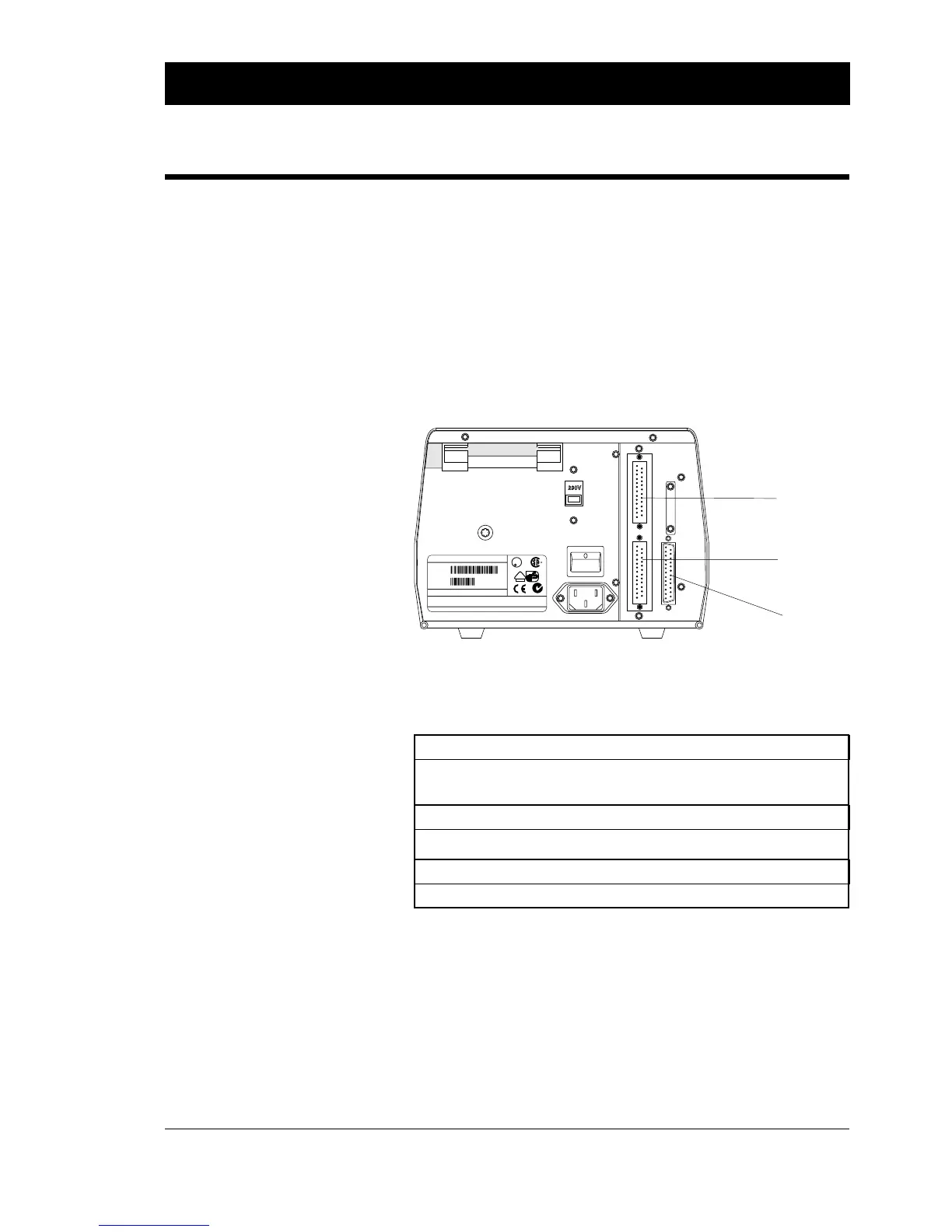

"uart1:"
"uart3:"
"uart2:"
RS 422/485 Interface Board
