Intermec EasyCoder 201 II – Technical Manual
NORMAL ROLL PRINTERS:
← a → Web width:
Maximum .................................................. : 89.0 mm (3.50")
Minimum .................................................. : 40.0 mm (1.58")
← b → Copy length:
Max. length between slots (6 dots/mm)
1
.........
: 2475 mm (97.4")
Max. length between slots (8 dots/mm)
1
.... : 1875 mm (73.8")
Min. length between slots (all) ................... : 15.0 mm (0.59")
Max. printable length (6 dots/mm) ............. : 1650 mm (65.0")
Max. printable length (8 dots/mm) ............. : 1250 mm (49.2")
← c → Detection slot height:
Maximum .................................................. : 10.0 mm (0.39")
Recommended........................................... : 1.6 mm (0.06")
Minimum .................................................. : 1.2 mm (0.05")
← d → Detection slot length:
Minimum .................................................. : 17.0 mm (0.67")
← e → Detection slot offset:
Maximum .................................................. : 12.0 mm (0.47")
“BIG ROLL” PRINTERS (7" internal roll):
← a → Web width:
Maximum .................................................. : 80.2 mm (3.16")
Minimum .................................................. : 40.0 mm (1.58")
← b → Copy length:
Max. length between slots (6 dots/mm)
1
.... : 2475 mm (97.4")
Max. length between slots (8 dots/mm)
1
.... : 1875 mm (73.8")
Min. length between slots (all) ................... : 15.0 mm (0.59")
Max. printable length (6 dots/mm) ............. : 1650 mm (65.0")
Max. printable length (8 dots/mm) ............. : 1250 mm (49.2")
← c → Detection slot height:
Maximum .................................................. : 10.0 mm (0.39")
Recommended........................................... : 1.6 mm (0.06")
Minimum .................................................. : 1.2 mm (0.05")
← d → Detection slot length:
Minimum .................................................. : 16.0 mm (0.63")
← e → Detection slot offset:
Maximum .................................................. : 11.0 mm (0.43")
Tickets and Tags
PAPER DIMENSIONS, cont'd.
1
/. The last third of a ticket or tag with
maximum length cannot be used for
printing! Also see “Max. printable
length”.

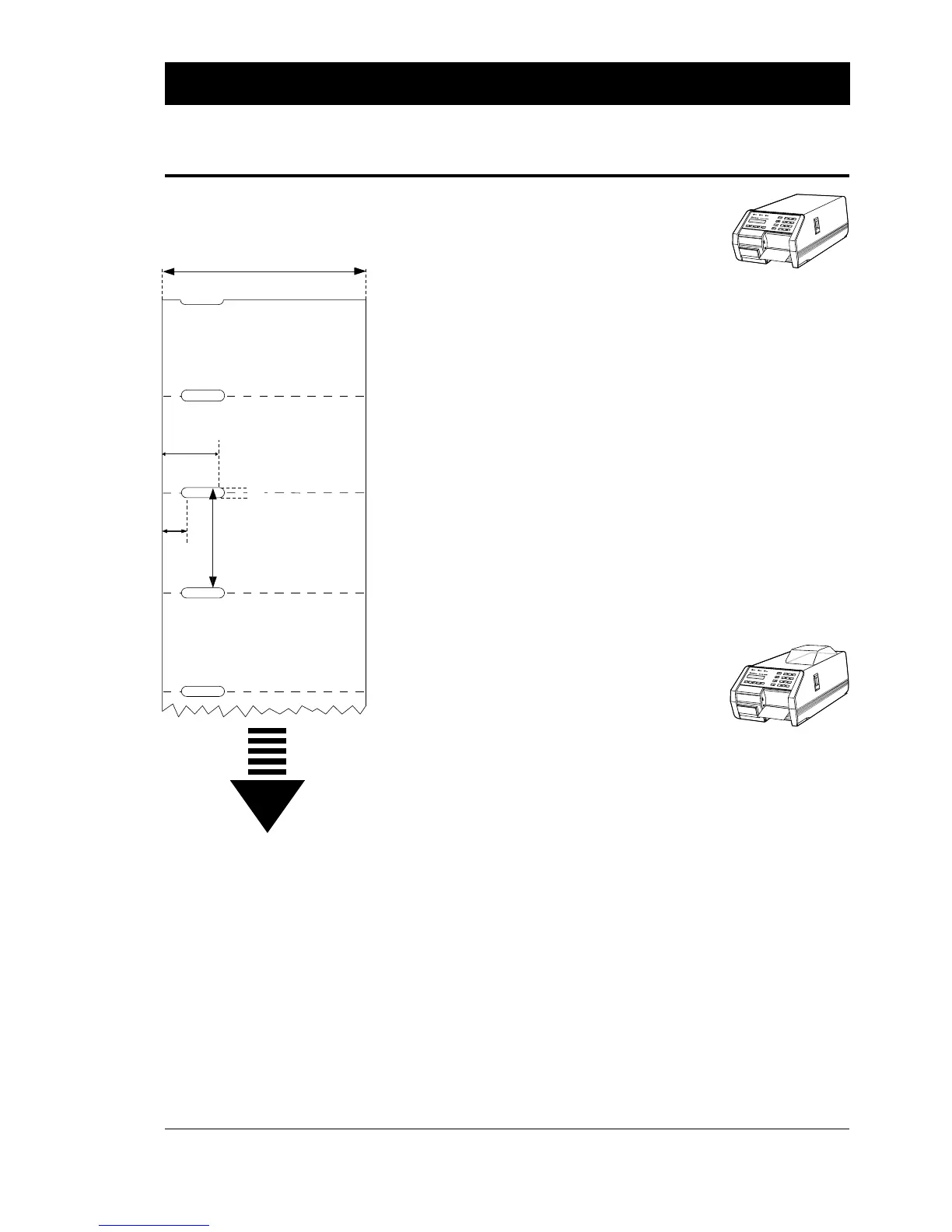

a
c
TICKETS & TAGS
e
d
b
PAPER FEED
DIRECTION
