50
Intermec EasyCoder 201 II – Technical Manual
PAPER DIMENSIONS, cont'd.

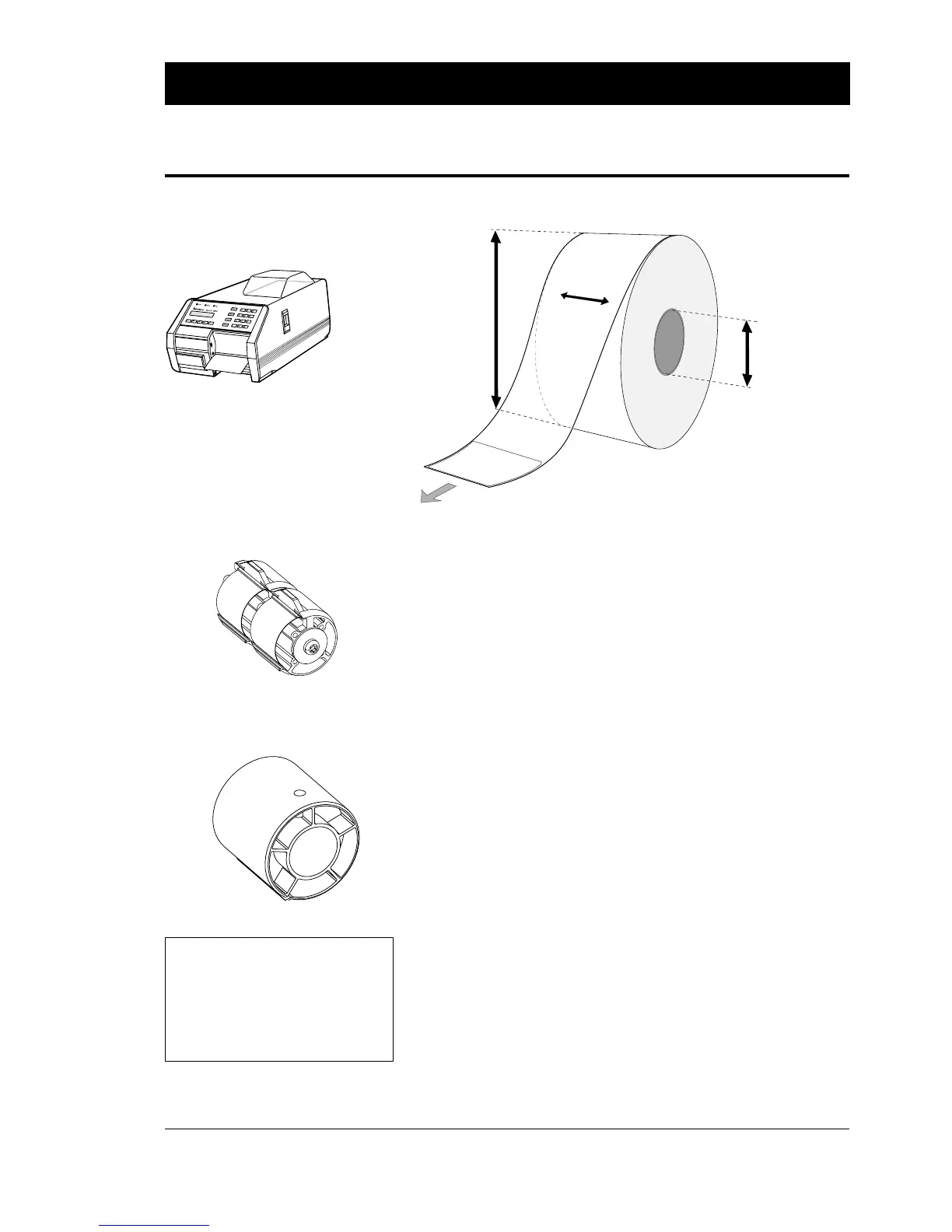

Roll Size, “Big Roll” Printers
(internal 7" paper roll)
The following restrictions only apply to “Big Roll” printers with a
7.25" paper roll protruding through the roof and covered by a
transparent lid.
Core:
Diameter w/o adapter ... : 38–40 mm (1.5–1.6")
Diameter w. adapter ..... : 76.2 mm (3.0")
Width .......................... : Must not protrude outside the web.
Roll:
Max. diameter .............. : 185 mm (7.25")
Max. web width ........... : 80.2 mm (3.16")
Min. web width ............ : 40 mm (1.58")
Max. web thickness...... : 175 µm (0.007") see note!
The paper roll may be wound with the labels or thermal coating
facing either outwards or inwards.
An exception is thin, flexible, non-dispensing media, like baggage
tags, where paper rolls with the thermal layer facing inwards are
strongly recommended.
Adapter (Ø 76 mm/3")
Bobbin (Ø 38 mm/1.5")
Note:
This is the recommended maximum
thickness. Thicker web may be used at
the possible expense of an impaired
printout quality. However, the stiffness
is also important. A stiff web limits the
maximum thickness and vice versa.
Web width:
Max. 80.2 mm ( 3.16")
Min. 40.0 mm (1.6")
Printable
side
or
labels
Core diam
eter:
38 - 40 m
m (1.5" - 1.6")
or
76.2 m
m
(3")
Roll diam
eter:
m
ax. 185 m
m
(7.25")
