Intermec PC43d User Manual

Chapter 4 — Configure the Printer
94 PC23 and PC43 Desktop Printer User Manual
To upload or delete applications or resources from the printer web
page, the printer must be turned on and connected to your Wi-Fi or
Ethernet network.
1 On your PC, start a browser.

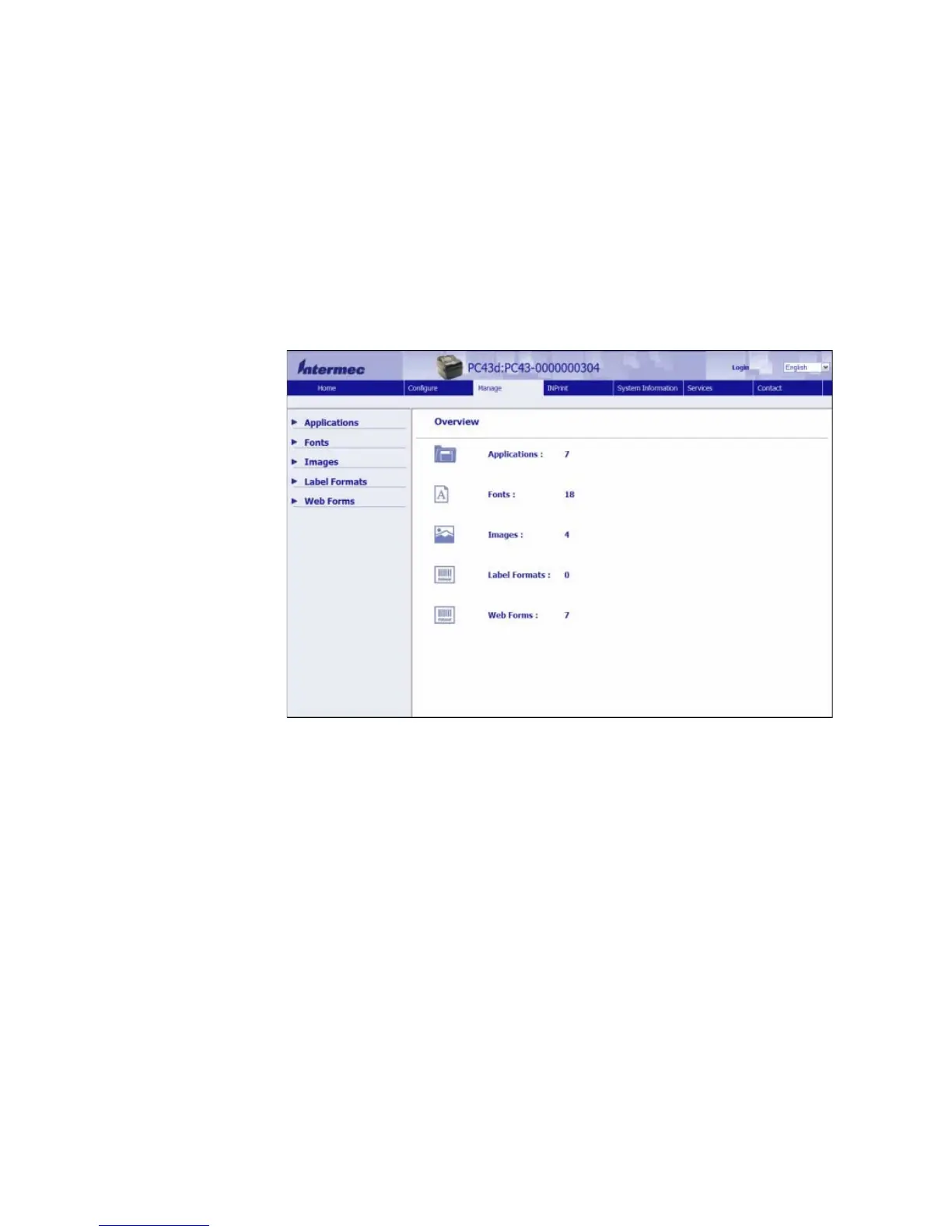

2 In the Location or Address field, type the printer IP address and
press Enter. The printer web page appears.
3 Click the Manage tab.
4 In the navigation list, click the type of file you want to upload or
delete: Applications, Fonts, Images, Label Formats, or Web
Forms. The page for that type of file appears, including a list of
Resident (Intermec-supplied) files of that type and a list of
Customer Downloaded files of that type (if any).
5 To upload an application or file to the printer:
a Click Browse to locate your application or file.
b Double-click the file to select it.
c Click Upload. The application or file uploads to the printer.
To delete an application or file, click the file name in the Customer
Downloaded list and then click Delete. The file is deleted.

Intermec PC43d Specifications

General

Print Technology	Direct Thermal
Print Resolution	203 dpi (8 dots/mm)
Max Print Width	4.1 inches
Max Print Speed	8 ips
Connectivity	USB, Serial, Ethernet
Media Handling	fanfold
Memory	128 MB Flash, 64 MB SDRAM
Media Type	Tags
Roll Maximum Outer Diameter	5 inches
Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	10 to 90% RH non-condensing
Power Requirements	100-240V AC, 50-60 Hz
