Intermec PC43d User Manual

Chapter 3 — Connect the Printer
76 PC23 and PC43 Desktop Printer User Manual

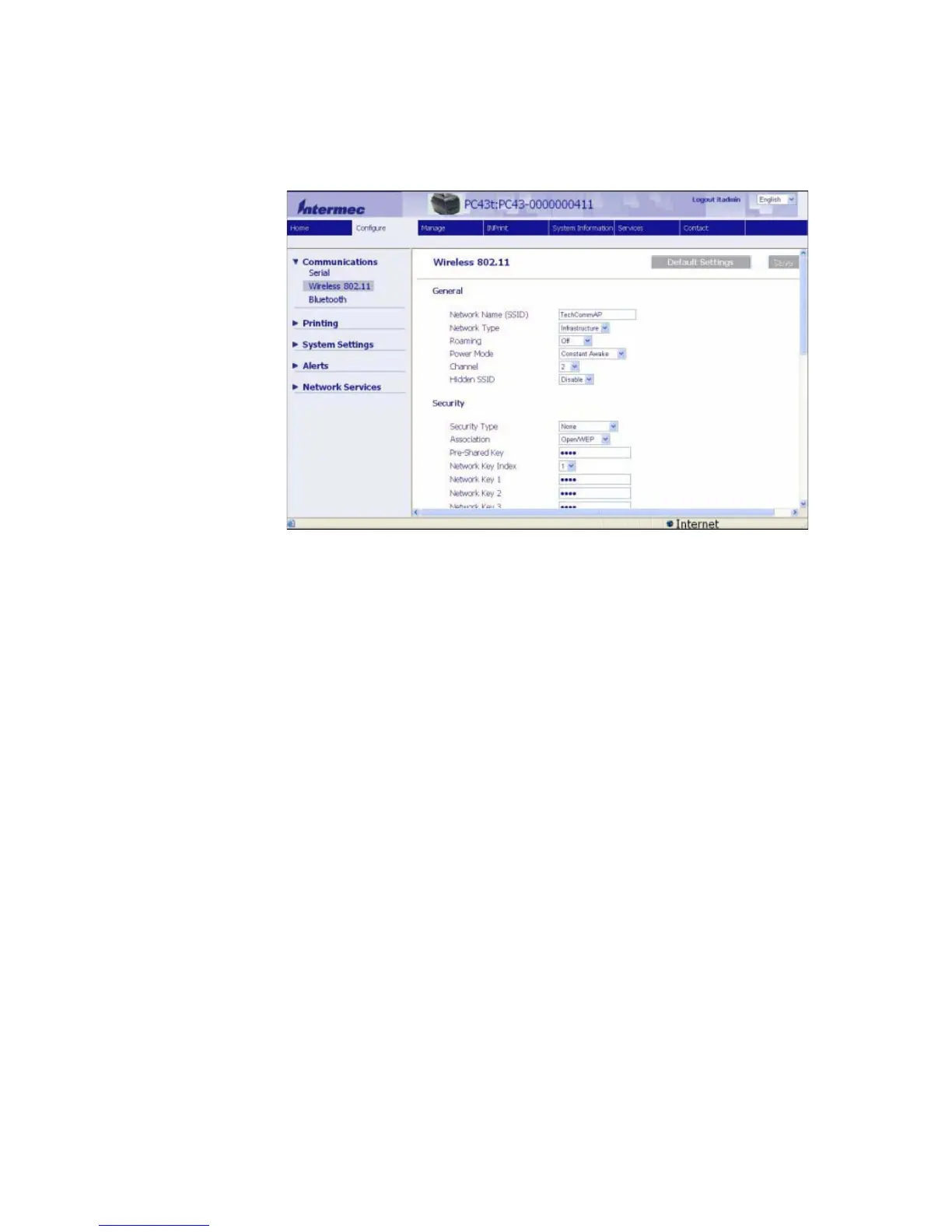

6 Click Communications > Wireless 802.11. The Wireless 802.11
page appears.
7 Change settings as needed, or click Default Settings to restore all
default Wireless 802.11 settings.
8 Click Save when you are done.
About Bluetooth Communications
The printer supports Bluetooth communications when the optional
Wi-Fi/Bluetooth module is installed. When Bluetooth is enabled, you
can connect the printer to other Bluetooth devices, such as bar code
scanners and keyboards. You can also make the printer discoverable by
Bluetooth-enabled devices such as mobile computers.
When the Wi-Fi/Bluetooth module is installed:
• the Bluetooth icon appears in the status bar on the LCD printer
screen.

Intermec PC43d Specifications

General

Print Technology	Direct Thermal
Print Resolution	203 dpi (8 dots/mm)
Max Print Width	4.1 inches
Max Print Speed	8 ips
Connectivity	USB, Serial, Ethernet
Media Handling	fanfold
Memory	128 MB Flash, 64 MB SDRAM
Media Type	Tags
Roll Maximum Outer Diameter	5 inches
Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	10 to 90% RH non-condensing
Power Requirements	100-240V AC, 50-60 Hz
