Intermec PC43d User Manual

Chapter 5 — Troubleshoot the Printer
100 PC23 and PC43 Desktop Printer User Manual

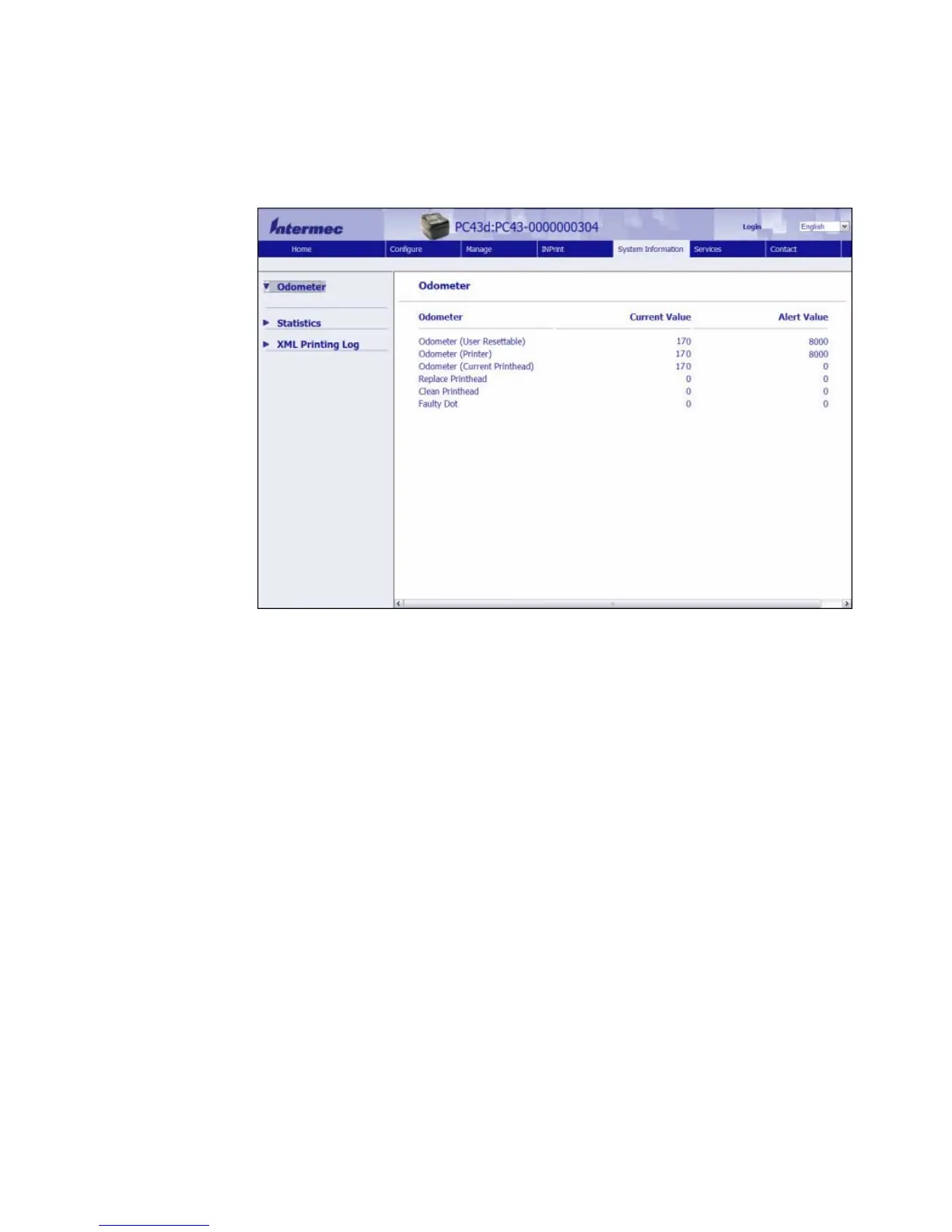

3 Click the System Information tab.
4 Click Odometer. The list of current odometer statistics appears.
About Alerts
To help maintain the printer, you can configure the printer to send
alert messages when certain conditions occur. For example, the printer
can send a message when the odometer reaches a certain value, or if the
printhead is lifted during printing.
There are three types of alerts:
• Error alerts
• Information alerts
• Warning alerts
You configure alert settings in the printer web page. Alert messages can
be sent to an email address, an SNMP trap, or both. You can enable or
disable each type of alert, set the number of times the alert is repeated,
set the unit of measure that determines how often the alert is sent, and
change the default text message for the alert.

Intermec PC43d Specifications

General

Print Technology	Direct Thermal
Print Resolution	203 dpi (8 dots/mm)
Max Print Width	4.1 inches
Max Print Speed	8 ips
Connectivity	USB, Serial, Ethernet
Media Handling	fanfold
Memory	128 MB Flash, 64 MB SDRAM
Media Type	Tags
Roll Maximum Outer Diameter	5 inches
Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	10 to 90% RH non-condensing
Power Requirements	100-240V AC, 50-60 Hz
