Intermec PC43d User Manual

Chapter 6 — Maintain the Printer
PC23 and PC43 Desktop Printer User Manual 117
Replace the Printhead
You need to replace the printhead periodically when it wears out due
to the rapid heating and cooling process used during printing. How
often you need to replace the printhead depends on factors such as
what type of images you print, the type of media or ribbon you use, the
amount of energy to the printhead, the print speed, and the ambient
temperature of the room you print in. The firmware detects the new
printhead when you restart the printer.
1 Turn off the printer and disconnect the power cord.
2 Pull one or both of the printer latches toward the front of the
printer and lift the printer lid.
For a thermal transfer printer, remove the ribbon.

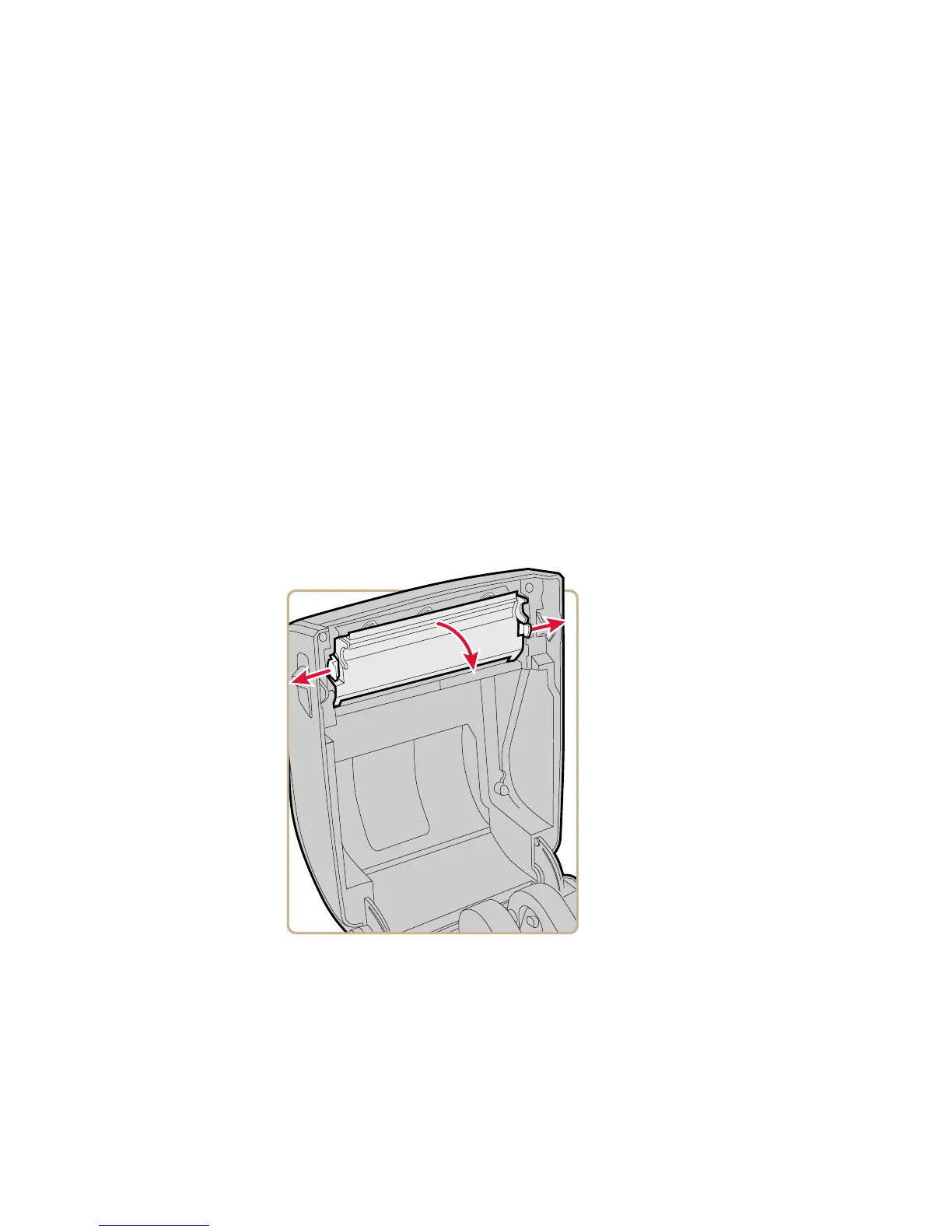

3 Press the printhead latches apart until the printhead slides
forward.

Intermec PC43d Specifications

General

Print Technology	Direct Thermal
Print Resolution	203 dpi (8 dots/mm)
Max Print Width	4.1 inches
Max Print Speed	8 ips
Connectivity	USB, Serial, Ethernet
Media Handling	fanfold
Memory	128 MB Flash, 64 MB SDRAM
Media Type	Tags
Roll Maximum Outer Diameter	5 inches
Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	10 to 90% RH non-condensing
Power Requirements	100-240V AC, 50-60 Hz
