Intermec PC43d User Manual

Chapter 5 — Troubleshoot the Printer
PC23 and PC43 Desktop Printer User Manual 109
Restore Defaults from the Printer Web Page
If the printer is connected to an Ethernet or wireless network, you can
restore default settings from the printer web page.
1 On your desktop PC, start a web browser.
2 In the address field, type the printer IP address and then press

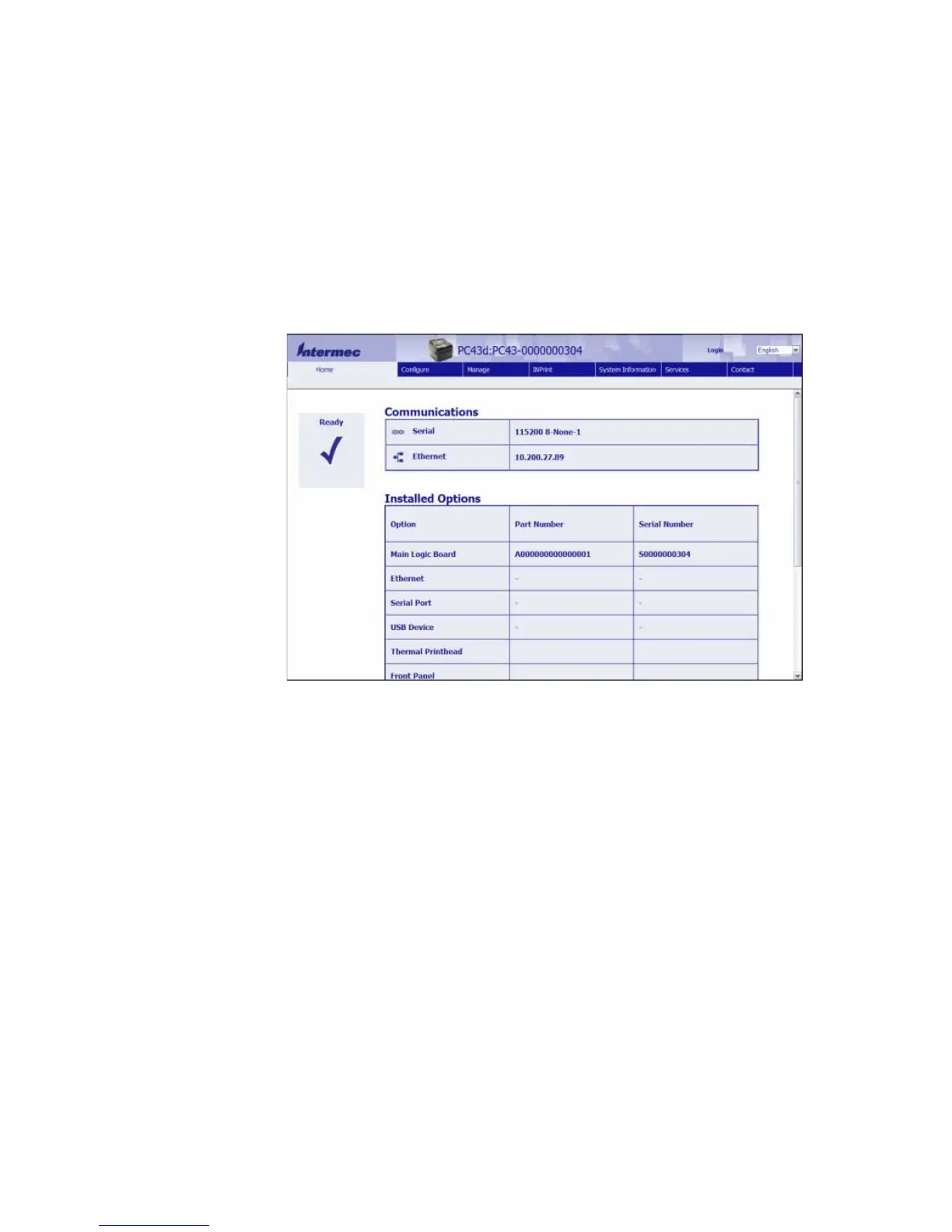

Enter. The printer web page appears.
3 Click Login in the upper right corner of the screen. The Login page
appears.
4 Type your Username and Password in the entry fields and then
click Login. The default username is itadmin and the default
password is pass.

Intermec PC43d Specifications

General

Print Technology	Direct Thermal
Print Resolution	203 dpi (8 dots/mm)
Max Print Width	4.1 inches
Max Print Speed	8 ips
Connectivity	USB, Serial, Ethernet
Media Handling	fanfold
Memory	128 MB Flash, 64 MB SDRAM
Media Type	Tags
Roll Maximum Outer Diameter	5 inches
Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	10 to 90% RH non-condensing
Power Requirements	100-240V AC, 50-60 Hz
