Intermec PC43d User Manual

Chapter 2 — Set Up the Printer
44 PC23 and PC43 Desktop Printer User Manual
3 If you are going to load the same size media, continue with the next
step.
If you are using large rolls of media stored outside the printer, such
as in an external media holder, feed the media through the external
media feed slot.
To adjust the media holders for a different media size:

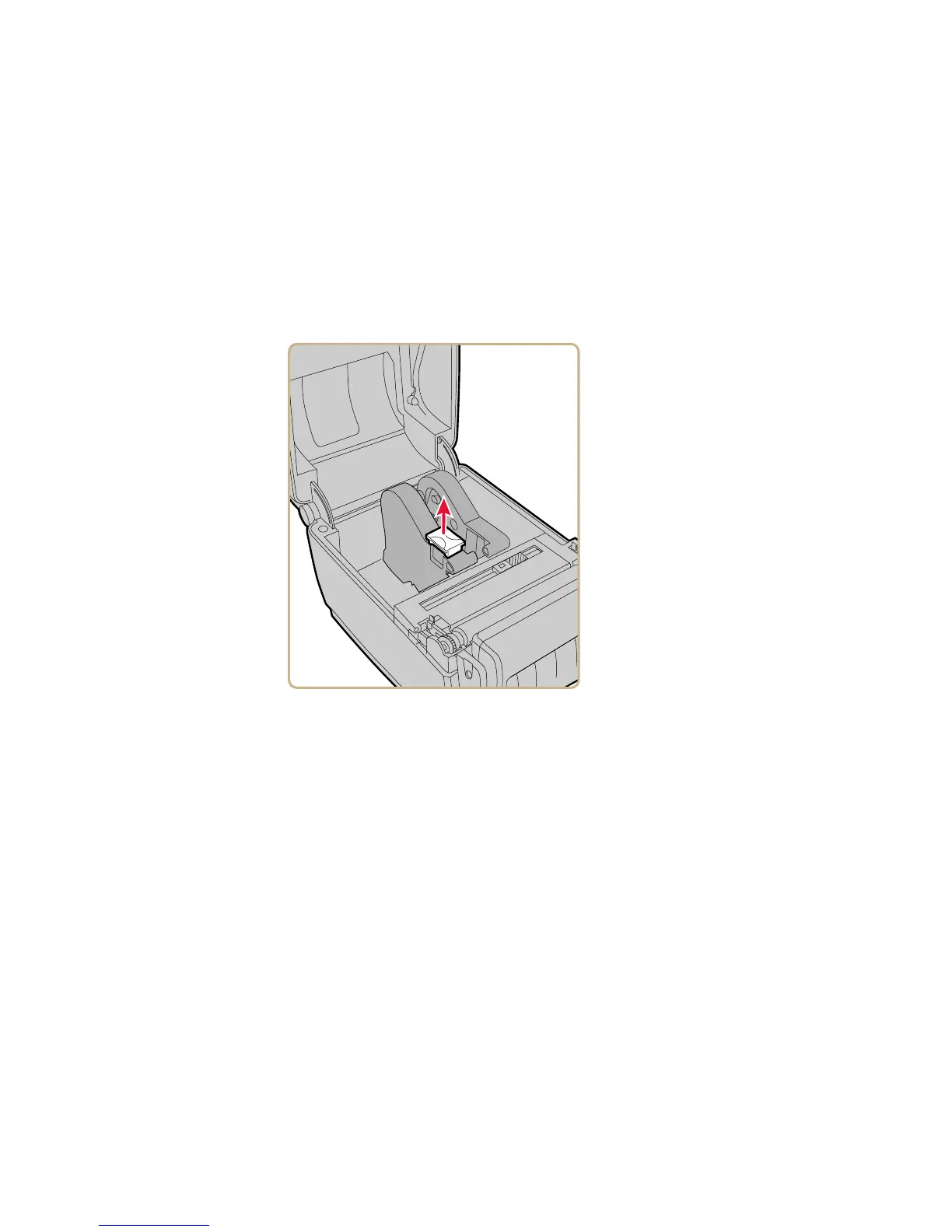

a Pull the locking tab up.

Intermec PC43d Specifications

General

Print Technology	Direct Thermal
Print Resolution	203 dpi (8 dots/mm)
Max Print Width	4.1 inches
Max Print Speed	8 ips
Connectivity	USB, Serial, Ethernet
Media Handling	fanfold
Memory	128 MB Flash, 64 MB SDRAM
Media Type	Tags
Roll Maximum Outer Diameter	5 inches
Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	10 to 90% RH non-condensing
Power Requirements	100-240V AC, 50-60 Hz
