3.3 2x4 Pin Power Connector (J62, J63)

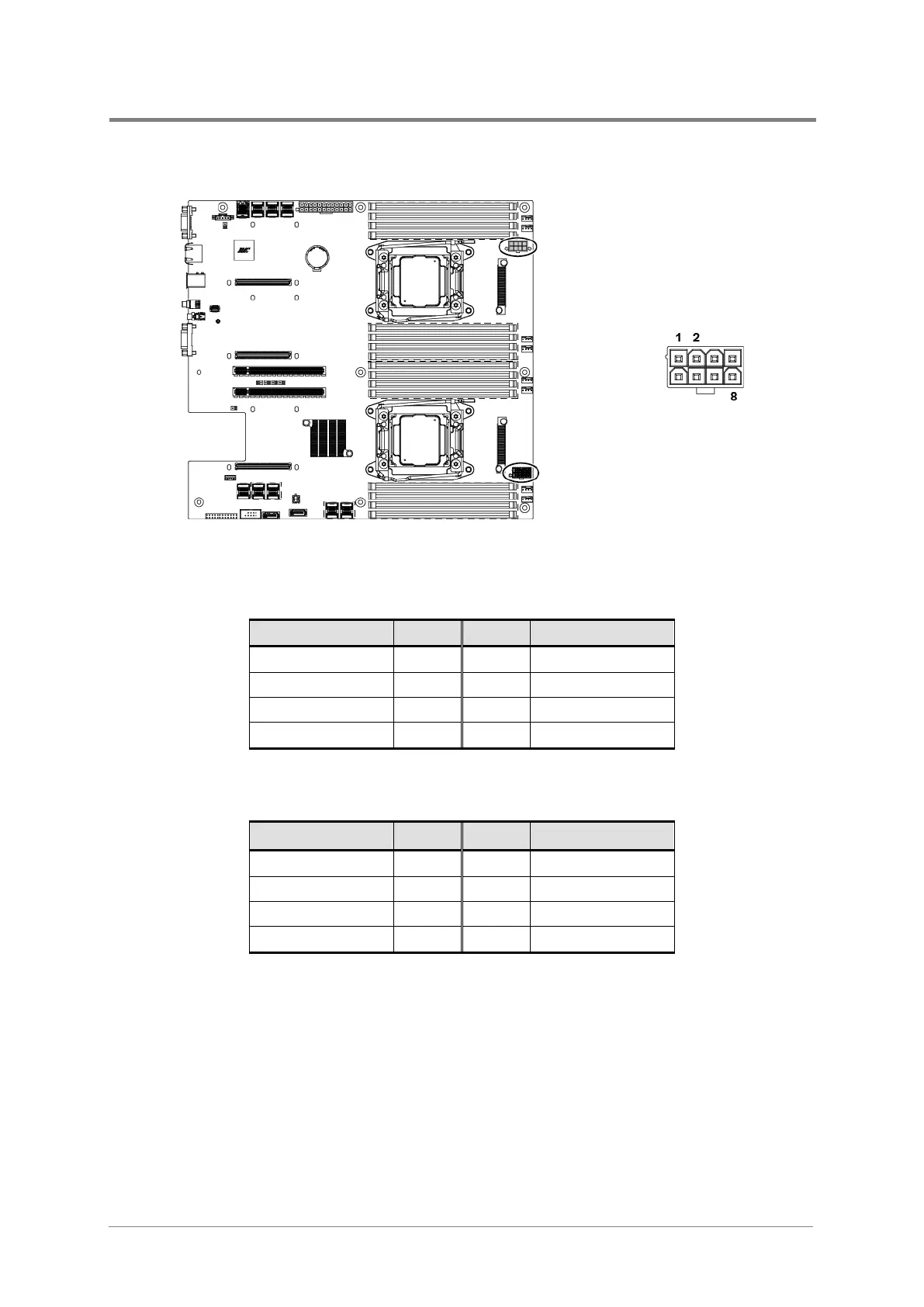

Figure 3-3 2x4 Pin Power Connector
Table 3-3 Pin Definition of 2x4 Pin Power Connector (J62)
Signal Name
Pin
Pin
Signal
Ground
1
5
P12VB
Ground
2
6
P12VB
Ground
3
7
P12VB
Ground
4
8
P12VB
Table 3-4 Pin Definition of 2x4 Pin Power Connector (J63)
信号名称
针脚
针脚
信号名称
Ground
1
5
P12VA
Ground
2
6
P12VA
Ground
3
7
P12VA
Ground
4
8
P12VA
