Inventec N800G3 - RAID Card; To Remove the RAID Card

Hardware Operations
2015-MNU-000023
2-15
2.9 RAID Card

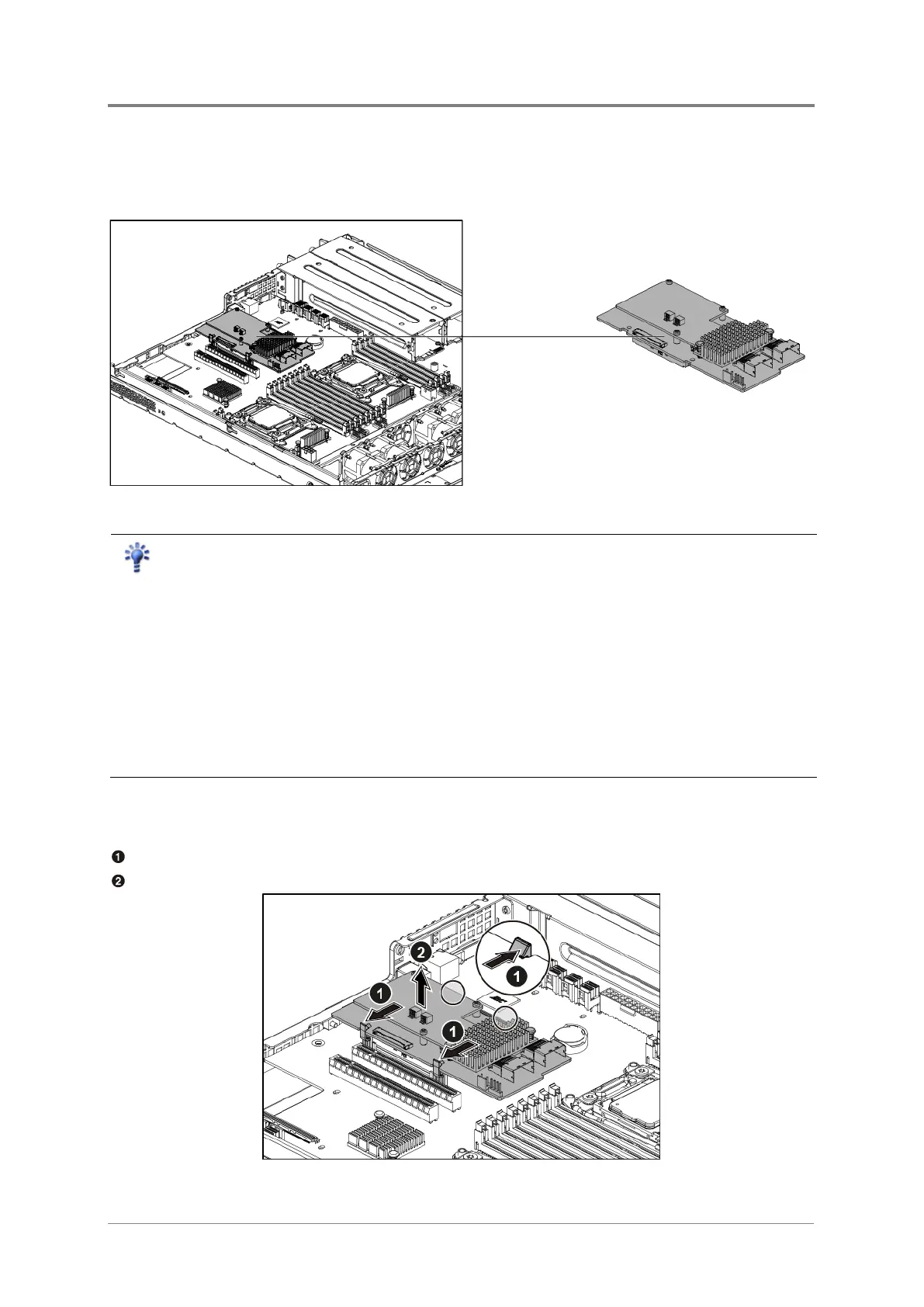

The location of the RAID card is shown below:
Figure 2-26 RAID Card Location
Reminder
Before you remove or install the RAID card, please follow the steps below:
Step 1:
Make sure the server is not turned on or connected to the AC power. To power off
the server, see “2.1.1 Power Off”.
Step 2:
Remove the chassis cover. To remove the chassis cover, see “2
.2 Chassis
Cover”.
Step 3:
Remove the PCI-E expansion card. To remove the PCI-E expansion card, see
“2.7 PCI-E Expansion Card”.
Step 4:
Disconnect all the necessary cables.
2.9.1 To remove the RAID card
Loosen the retaining clips that secure the RAID card.
Lift the RAID card out of the chassis.
Figure 2-27 Removing the RAID Card
