Inventec N800G3 - To Install the 2.5 HDD Backplane; To Remove the 2.5 HDD Backplane

Hardware Operations
2015-MNU-000023
2-22
Reminder
Before you remove or install the HDD backplane, please follow the steps below:
Step 1:
Make sure the server is not turned on or connected to the AC power. To power off
the server, see “2.1.1 Power Off”.
Step 2:
Remove the chassis cover. To remove the chassis cover, see “2
.2 Chassis
Cover”.
Step 3:
Remove the HDDs.To remove a HDD, see ”2.10
2.5” SATA HDDs”.
Step 4:
Disconnect all the necessary cables.
2.12.1 To remove the 2.5” HDD backplane
Remove the screws that secure the HDD cage.
Remove the HDD cage along the direction of the arrow.

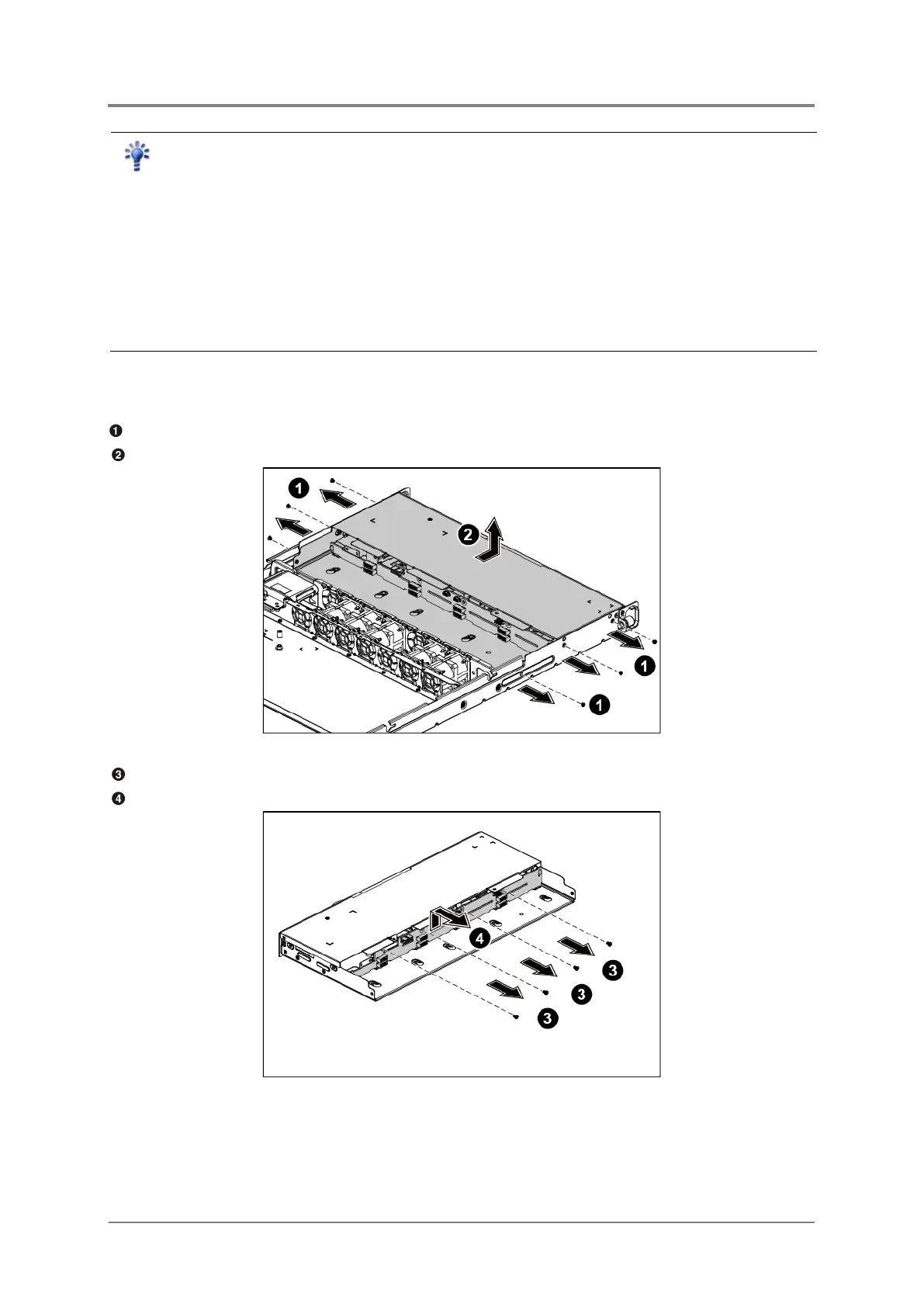

Figure 2-41 Removing the 2.5” HDD Cage
Loosen the screws that secure the backplane to the HDD cage.
Remove the backplane from the HDD cage.
Figure 2-42 Removing the 2.5” HDD Backplane
2.12.2 To install the 2.5” HDD backplane
Reverse the steps above to install the backplane.
