Inventec N800G3 - Motherboard

Hardware Operations
2015-MNU-000023
2-4
Secure the chassis cover with one screw.

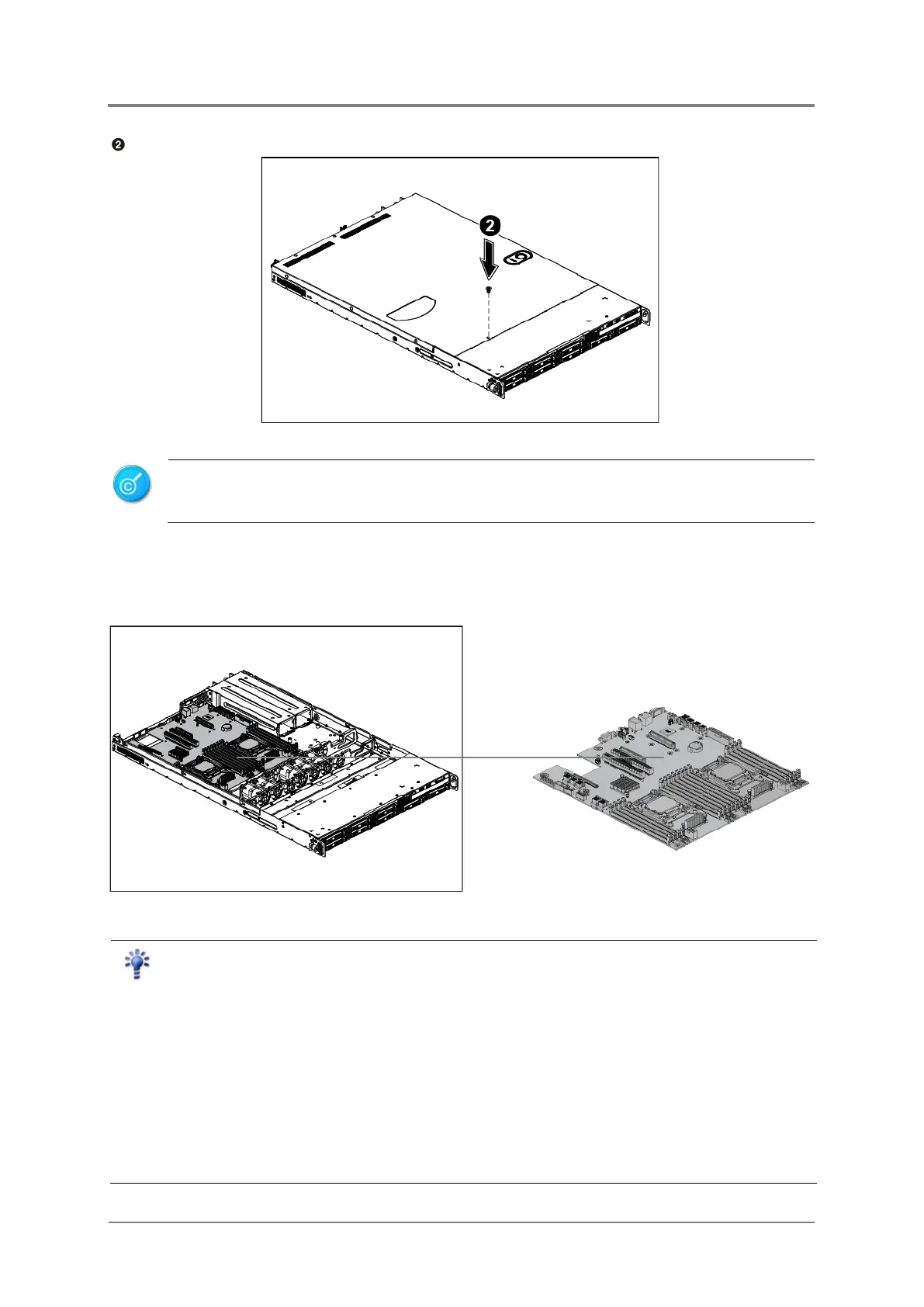

Figure 2-5 Tightening the Screw
2.3 Motherboard
The location of motherboard on the server is shown below:
Figure 2-6 Motherboard Location
Reminder
Before you remove or install the motherboard assembly, please follow the steps below:
Step 1
：
Make sure the server is not turned on or
connected to the AC power. To power off
the server, see “2.1.1 Power Off”.
Step 2:
Remove the chassis cover. To remove the chassis cover, see “2.2 Chassis
Cover”.
Step 3:
Remove the PCI-E expansion card. To remove the PCI-E expansion card, see
“2.7 PCI-E Expansion Card”.
Step 4 ：
Disconnect all necessary cables.
This
system must be operated with the chassis cover installed to ensure proper
cooling.
