Connectors and Jumpers
2015-MNU-000009
3-4

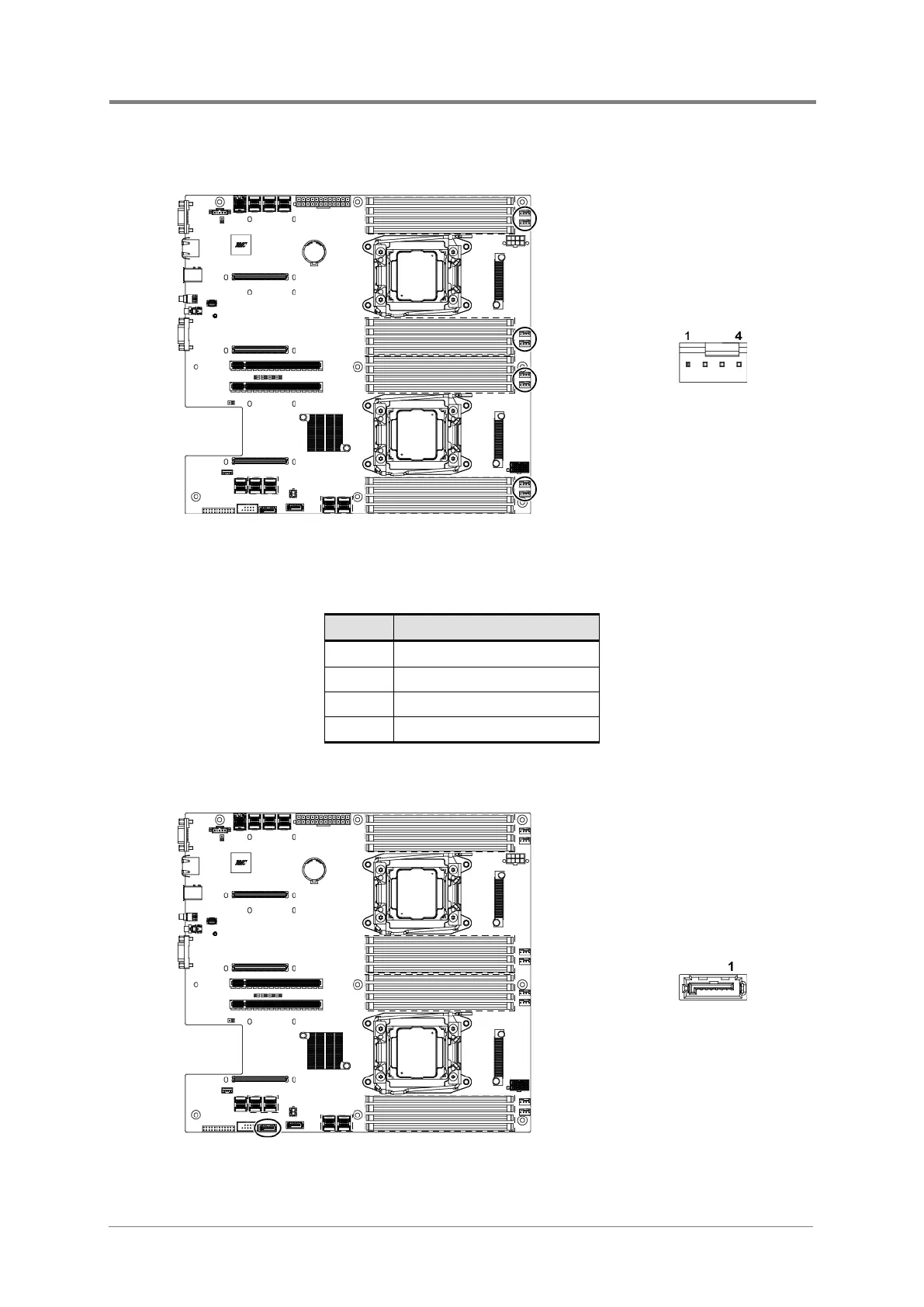

3.4 Fan Connectors (J64, J65, J66, J67, J68, J69, J70, J71)
Figure 3-4 Fan Connectors
Table 3-5 Pin Definition of Fan Connectors (J64,J65,J66,J67,J68,J69,J70,J71)
Pin
Signal Name
1
FAN_PWM_1
2
BMC_FAN_TACH_1_R
3
P12VA_FAN
4
Ground
3.5 SATA Connector (J12)
Figure 3-5 SATA Connector
