Connectors
2015-MNU-000023
3-1
3 Connectors
3.1 Backplane Connectors
8x2.5” HDD backplane is shown as below:

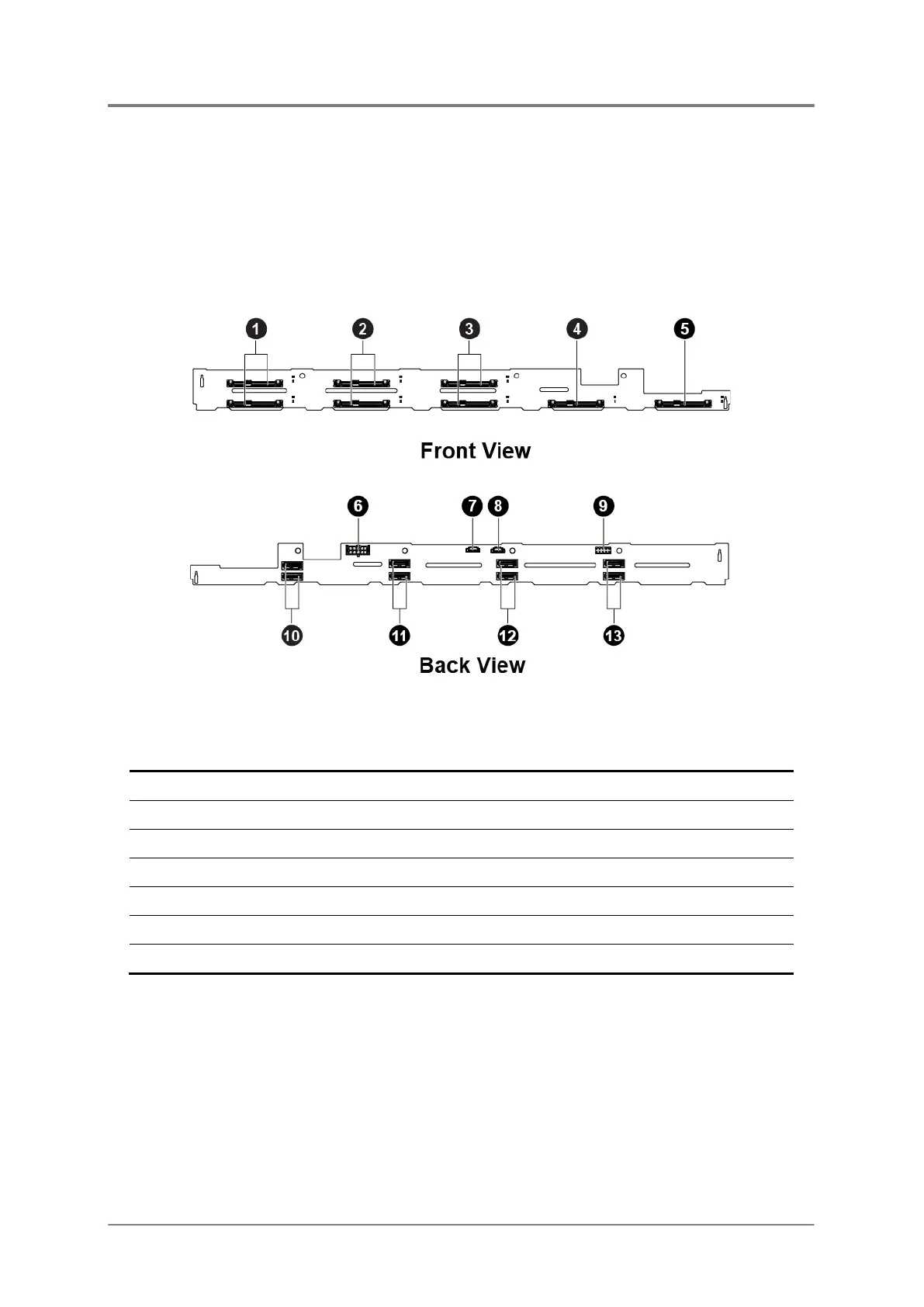

Figure 3-1 8x2.5”HDDs SATA Backplane
1 SATA HDD Connectors 1, 2 8 SGPIO Connector 1
2
SATA HDD Connectors 3, 4
9 CPLD JTAG Connector
3
SATA HDD Connectors 5, 6
10 Backplane SATA Connectors 7, 8
4
SATA HDD Connector 7
11
Backplane SATA Connectors 5, 6
5
SATA HDD Connector 8
12
Backplane SATA Connectors 3, 4
6
Backplane Power Connector
13
Backplane SATA Connectors 1, 2
7
SGPIO Connector 2
