ISCO 6700SR - Page 144

6700SR Refrigerated Sampler
126

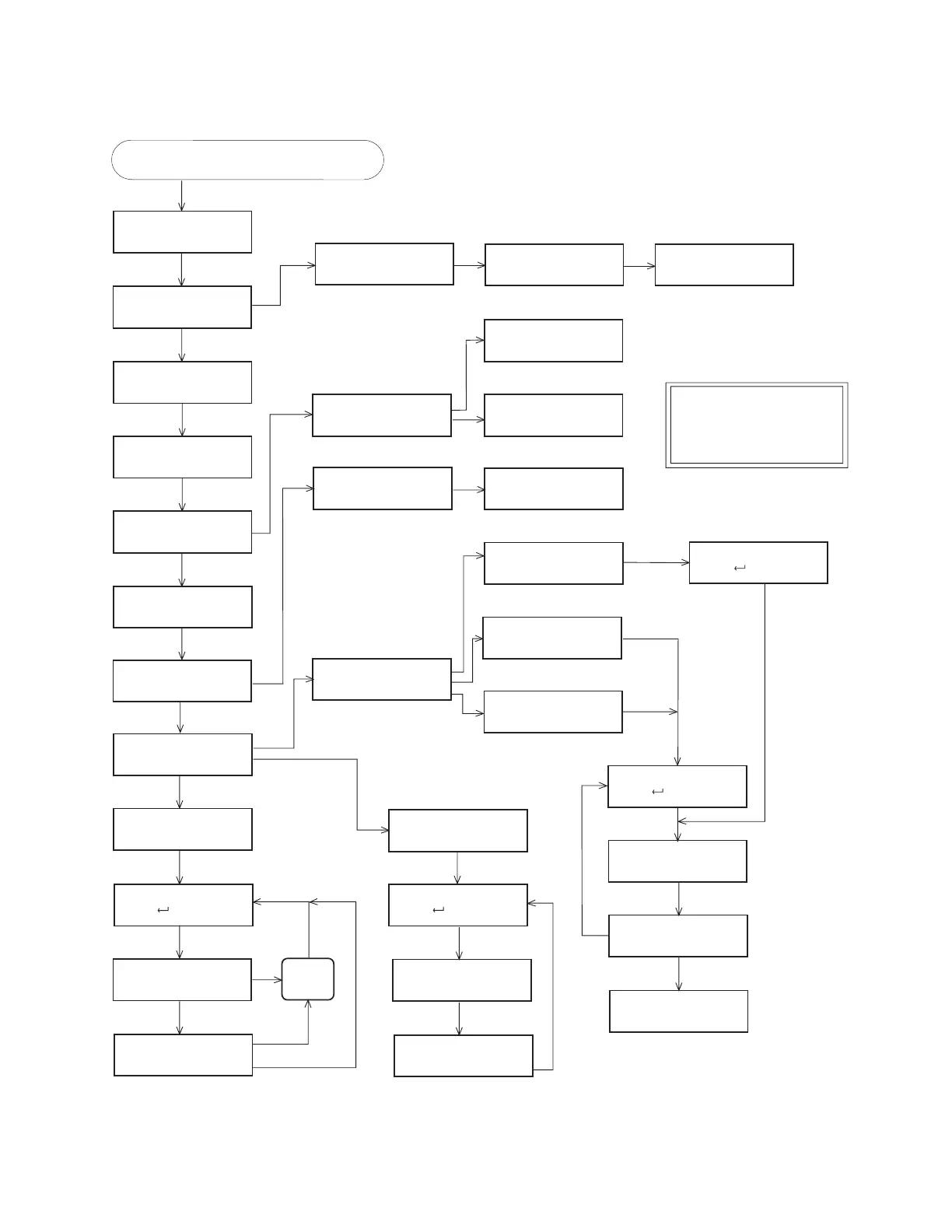

Figure 42 Extended Programming: YSI 600 Screens
DO YOU HAVE A
YSI 600 CONNECTED?
YES NO
DO YOU WANT
pH DATA?
YES NO
DO YOU WANT
D.O. DATA?
YES NO
DO YOU WANT
CONDUCTIVITY DATA?
YES NO
YES
See Note
NO
DO YOU WANT
TEMPERATURE DATA?
YES NO
NEW HARDWARE SETUP--
STORED DATA WILL
BE LOST! OK?
YES NO
SELECT PARAMETER
TO CALIBRATE
Y-pH Y-D.O. Y-COND
DONE
CALIBRATION METHOD:
D.O. STANDARD
BAROMETRIC PRESSURE
ALTITUDE
ENTER THE SPECIFIC
CONDUCTANCE OF YOUR
KCl STANDARD
____mS/cm
SELECT DATA TYPE:
SPECIFIC CONDUCTANCE
SALINITY T.D.S.
CONDUCTIVITY DONE
SPECIFIC CONDUCTANCE
TEMP. COEFFICIENT:
_.__%/C
(1.50-2.50)
T.D.S. SCALE FACTOR:
_.__
(0.55-0.90)
PLEASE WAIT!
CALIBRATION READING
OUT OF RANGE!
OVERRIDE?
YES NO
ENTER YOUR
ALTITUDE
_____ ft
ENTER THE ABSOLUTE
BAROMETRIC PRESSURE
____ mm Hg
ENTER THE D.O.
CONTENT OF YOUR
CALIBRATION STANDARD
__._ mg/l
PLACE PROBE IN
CALIBRATION CUP
PRESS WHEN STABLE
___mg/l ___ F
PLACE PROBE IN
__._ mg/l STANDARD
PRESS WHEN STABLE
___mg/l ___ F
PLEASE WAIT!
D.O. CALIBRATED TO:
___.__ mg/l
pH CALIBRATION:
pH04 and pH07
pH07 and pH10
pH04, pH07 and pH10
CALIBRATION READING
OUT OF RANGE!
OVERRIDE?
YES NO
RINSE PROBE, THEN
PLACE IN pH__BUFFER
PRESS WHEN STABLE
__.__
PLACE PROBE IN
____mS/cm STANDARD
PRESS WHEN STABLE
____mS/cm
CALIBRATION READING
OUT OF RANGE!
OVERRIDE?
YES NO
REPEAT
FOR
ALL pH
BUFFERS
PLEASE WAIT!
YES
NO
If applicable
Y-pH
Y-COND
Y- D. O .
Y-SAL
Y-TDS
Y-SP CO
If applicable
If applicable
If applicable
NO
TEST YSI 600
COMMUNICATIONS?
YES NO
YES
NO
WARNING!
DO NOT REMOVE
YSI 600 POWER
... TESTING
COMMUNICATIONS RATE
SET AT 2400 BAUD
YES
PLEASE WAIT!
PARTITION MEMORY
WILL LAST __ DAYS
Conductivity Units:
Salinity = parts-per-thousand
T.D.S. = grams/liter
Specific Conductance = mS/cm
Conductivity = mS/cm
Note
TEST YSI 600
COMMUNICATIONS?
YES NO
From
Figures 40
and
41
, Extended
Programming Hardware Screens
.
