20 Uni-3 Technical Manual

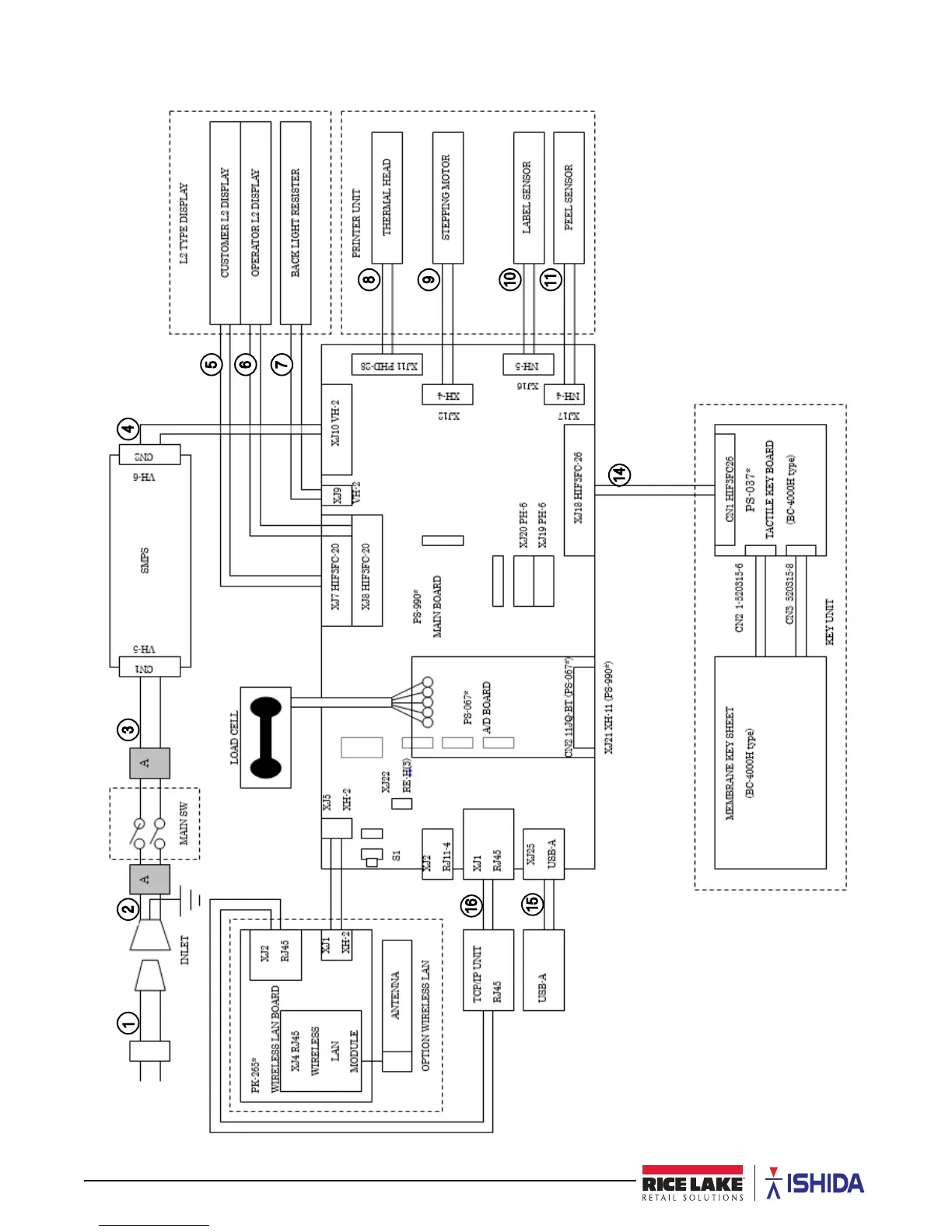

Figure 2-5. Block Diagram (Hanging)
2 3 4
10
9
8
7
5
6
11
14
1
POWER CORD
16
15
Numbering is
explained in Section
2.3.1
