30 Uni-3 Technical Manual
Power Supply Disassembly Procedure
1. Remove the two screws.

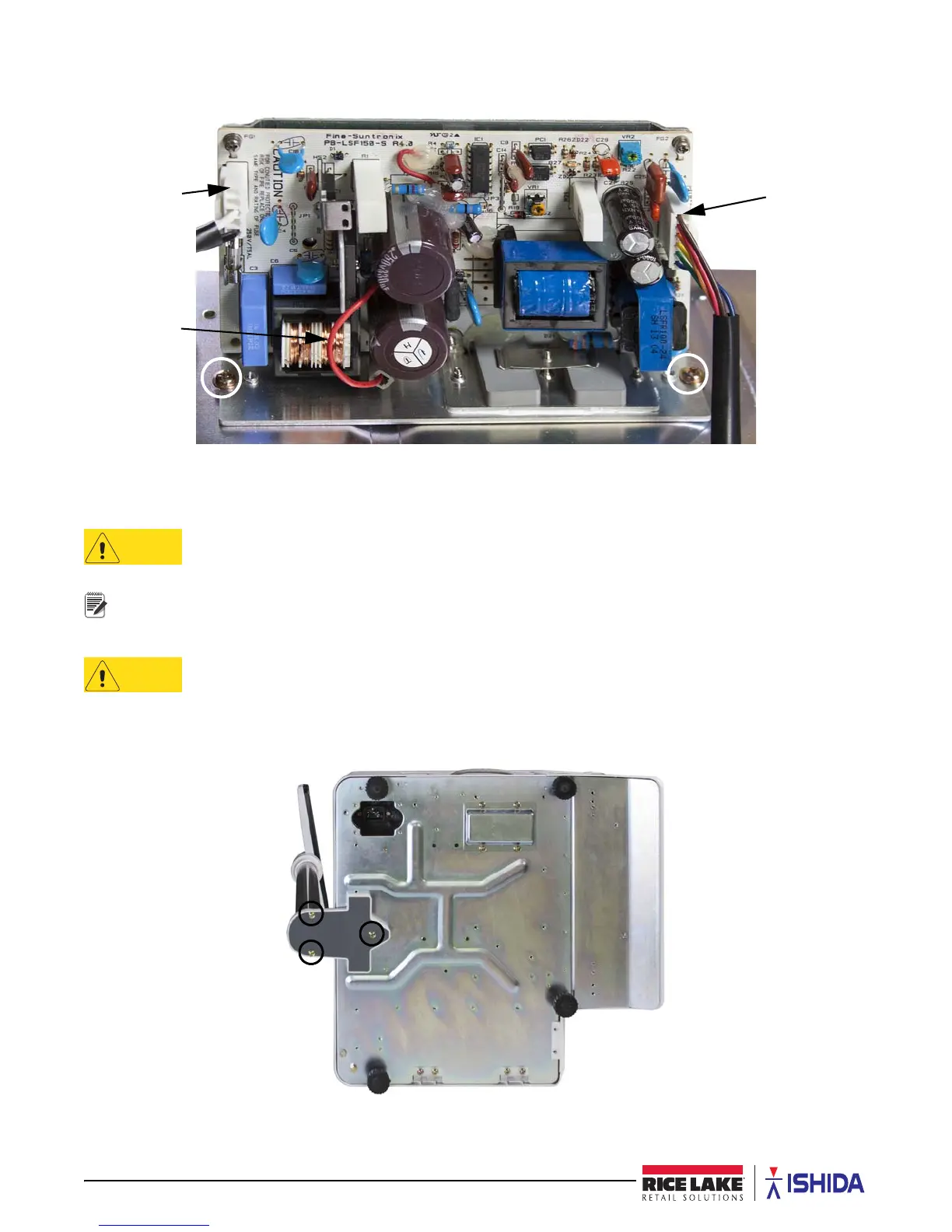

Figure 2-19. Power Supply Disassembly
2. Unplug the two connectors from the power supply.
3. Remove the power supply.
When installing a new power supply, be sure the input voltage jumper is set correctly for 110V or 220V.
The power supply will be damaged or not operate if the jumper is set incorrectly.
Reverse this procedure for assembly.
2.5.2 Pole Type
Make sure to unplug the power cord from the wall outlet before starting the disassembly work.
Pole Unit
1. Remove the platter.
2. Carefully tip the scale on its side to access the base of the pole at the bottom of the scale. See Figure 2-20.
Figure 2-20. Pole Disassembly
3. Remove the three screws from the base of the pole. See Figure 2-20.
