Installation 31
4. Detach the pole base plate.

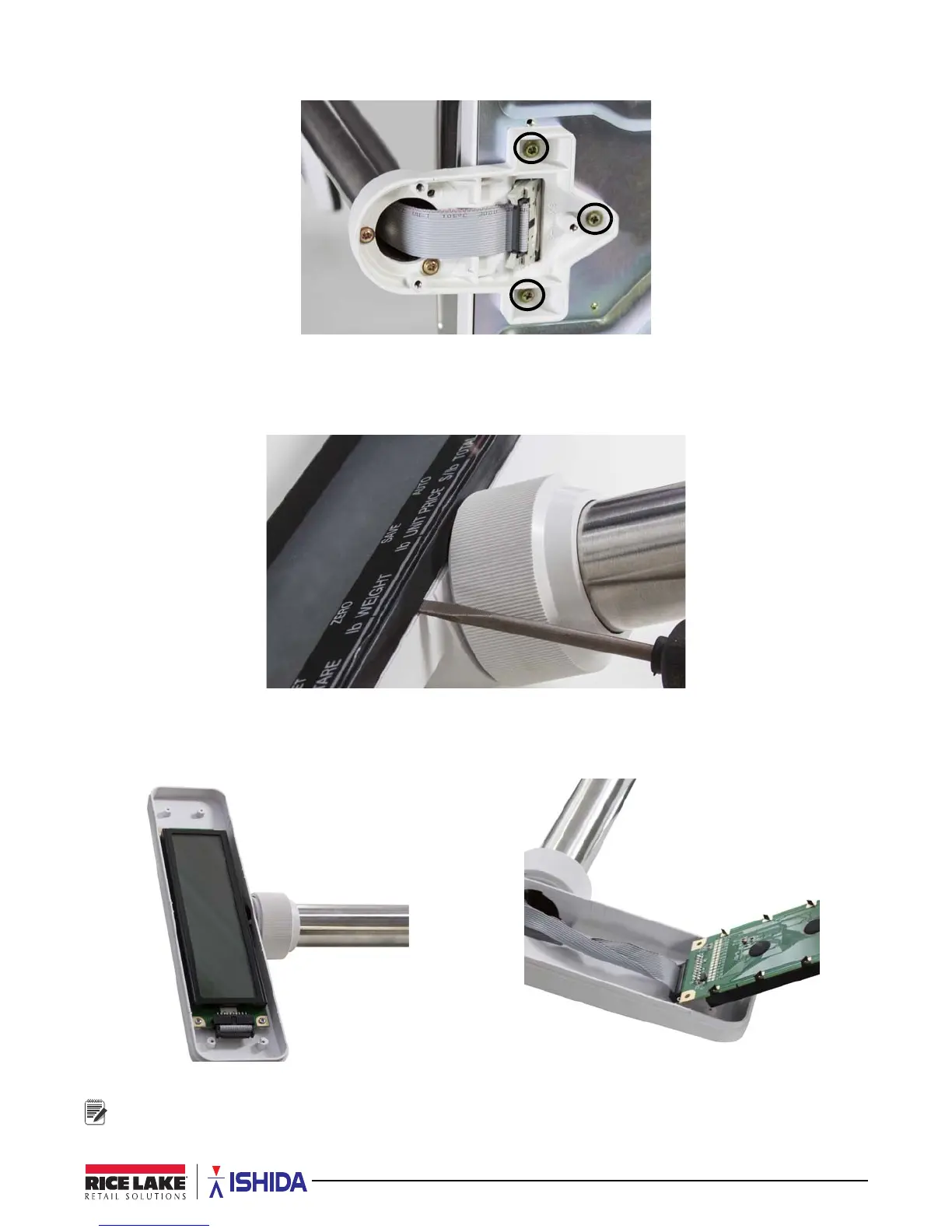

Figure 2-21. Detach the Pole Base Plate
5. Unplug the connector. See Figure 2-21.
6. Remove the three screws and detach the pole unit. See Figure 2-21.
7. Insert a flathead screwdriver into the slit at the base of the display enclosure.
Figure 2-22. Detach the Front Cover of the Customer Display
8. Detach the front cover of the customer display.
9. Remove the four screws and unplug the connector in order to detach the display board. See Figure 2-23.
Figure 2-23. Detach the Display Board
Reverse this procedure for assembly.
