Juice ULTRA - Figure 3: Quadruple Slot Version with One, Two, Three and Four Power-Stacks; Figure 4: Quadruple Slot Version with Four DC Charging Cables and One AC Socket

JUICE ULTRA - Operation Instructions and Installation Guide
Version 1-3A
Page 12 of 72
2 Product description
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic s.r.l.
As shown in the following picture the quadruple slot version can be equipped with one, two,
three or four power-stacks:

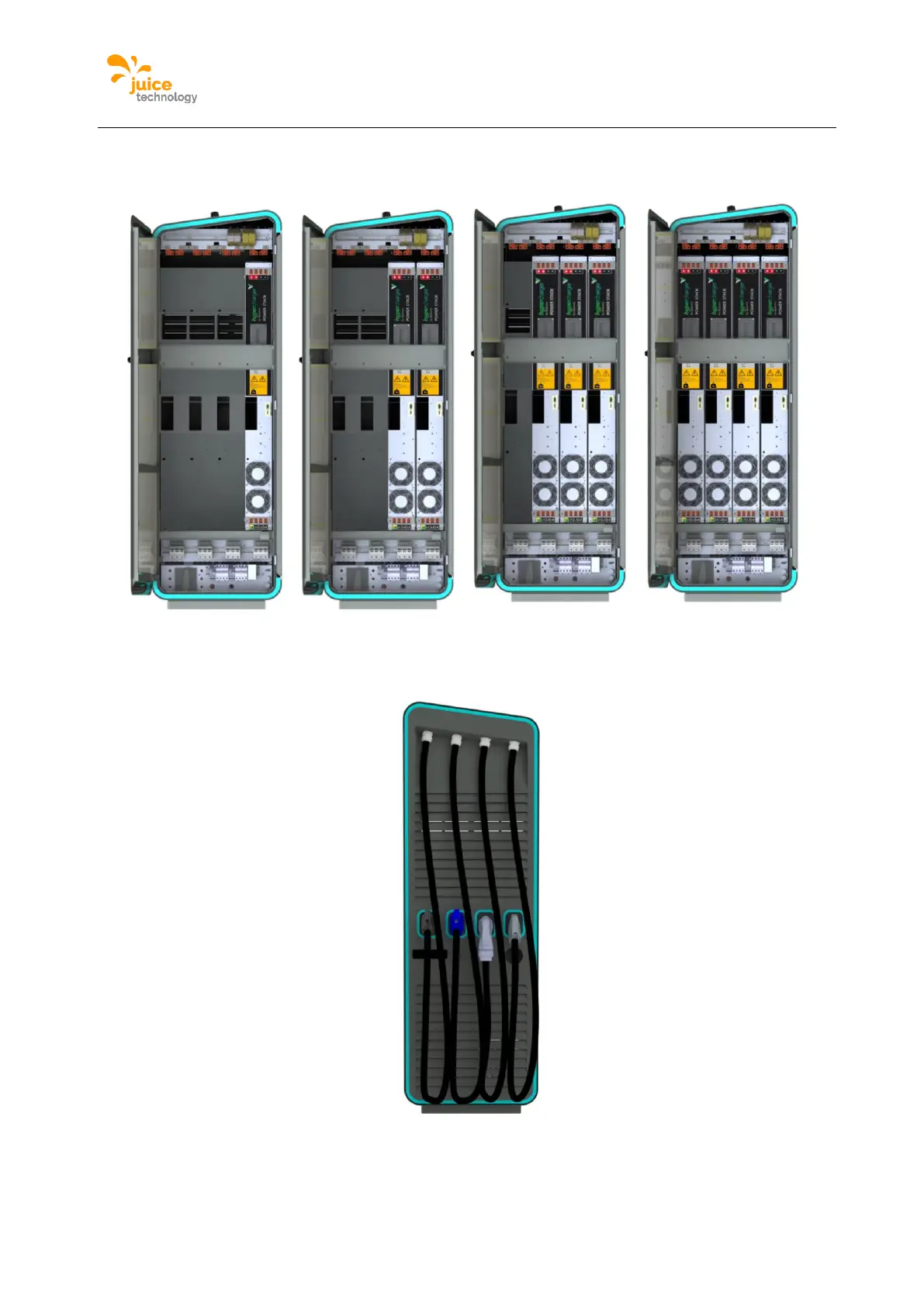

Figure 3: quadruple slot version with one, two, three and four power-stacks
The quadruple slot version can be equipped with up to four DC charging cables and one
22kW AC socket:
Figure 4: quadruple slot version with four DC charging cables and one AC socket
The different cable combinations for DC charging are described in section 2.2 and 2.3.
