3. Transport, storage, unpacking and handling
3.1. Packaging

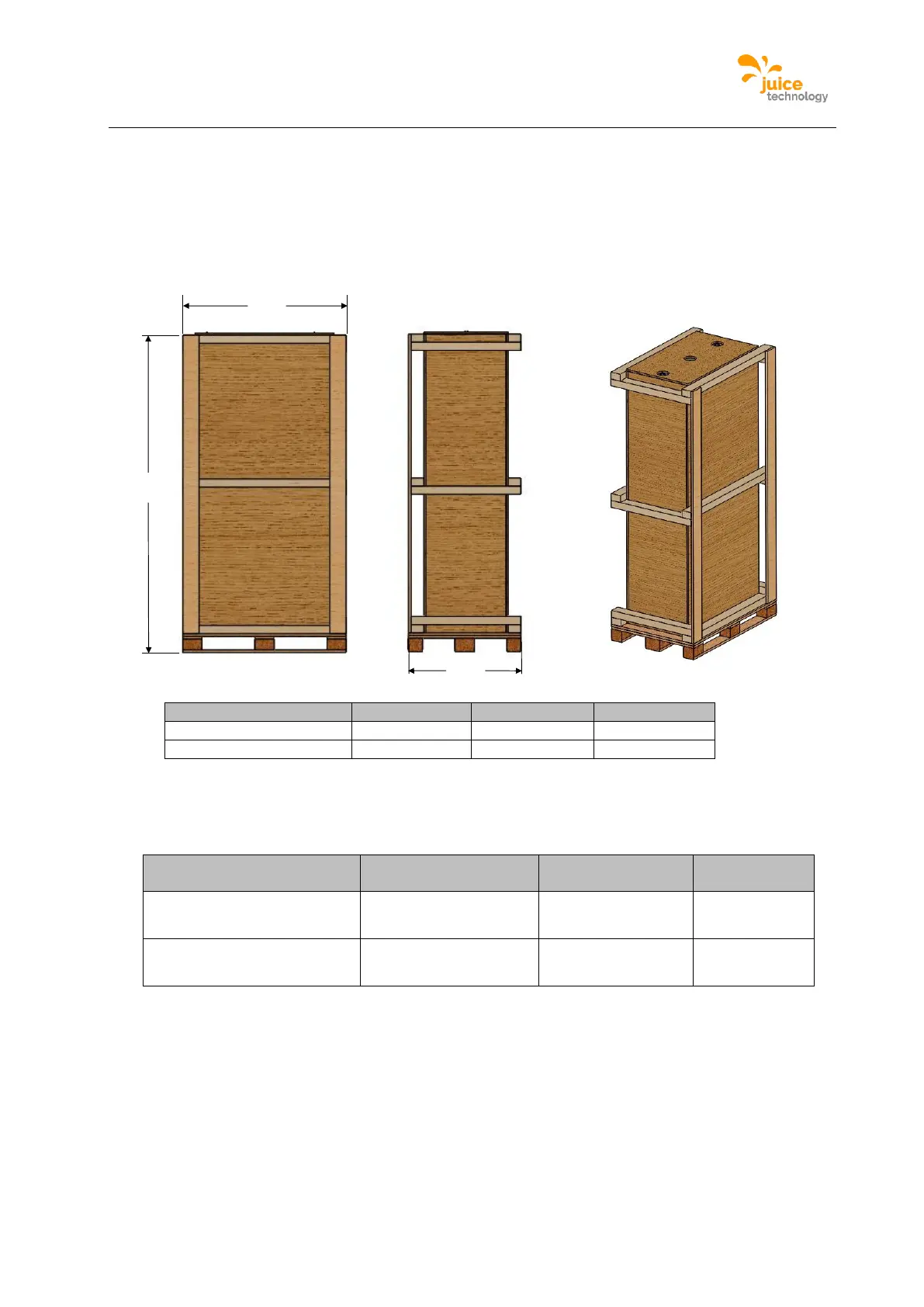

The JUICE ULTRA is delivered in a specialized wood packaging. The following figure shows
the packaging, and size information for the two charger types.
Type
W [mm]
D [mm]
H [mm]
double slot version
1200
800
2340
quadruple slot version
1200
1120
2340
Table 9: Dimension of the packaging
The following table contains the weight indication for JUICE ULTRA types:
Type
Weight
JUICE ULTRA [kg]
Weight
packaging [kg]
Threat size
for eyebolts
double slot version
s… number of power-stacks
c… number of charging interfaces
~ 200+s*95+c*30
<450
100
2xM12
quadruple slot version
s… number of power-stacks
c… number of charging interfaces
~ 250+s*95+c*30
<750
100
4xM12
Table 10: Maximum weight and threat size for eyebolts for different JUICE ULTRA product types
W
H
D
