4.1. JUICE ULTRA mechanical installation
4.1.1. Relevant components for JUICE ULTRA installation
The mounting of the JUICE ULTRA must be performed on a solid ground, this can be a
concrete foundation or a concrete floor. When dimensioning the foundation, it’s
recommended to perform a static load capacity analysis according to relevant norms.
The following figure defines the naming of relevant components for the mechanical
installation:

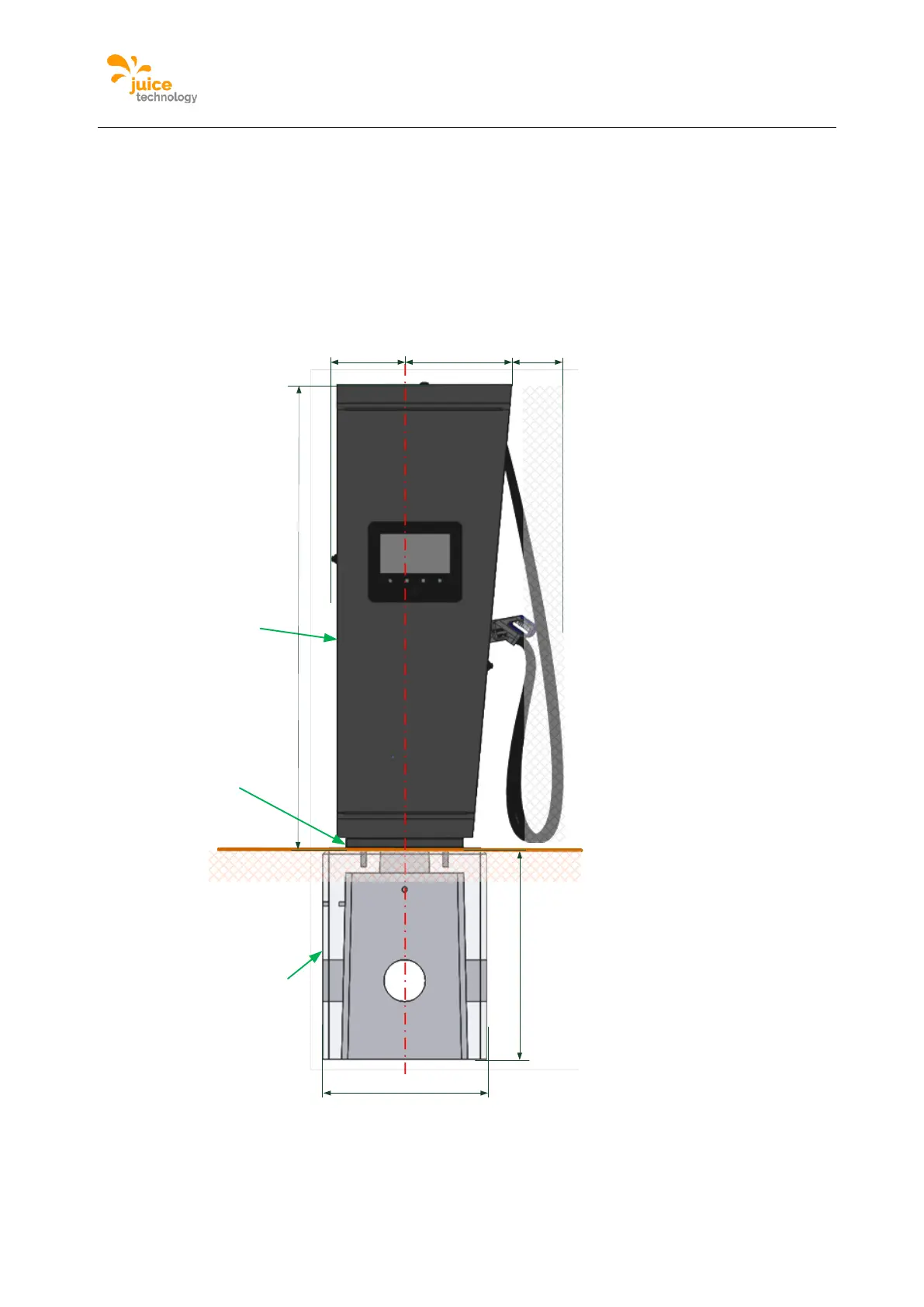

Figure 21: Relevant components for the mechanical installation of the JUICE ULTRA
The mains power-supply cables for connecting the JUICE ULTRA to the grid are guided from
the ground over the foundation to the JUICE ULTRA.
The JUICE ULTRA base is an installation plate which is mounted in the first installation step
