The following table describes the single components highlighted in the table above:
Identifier
Description
-BC1
DC fault current monitoring for AC charging (optional, only when AC-socket is
present)
-BE1
DC-meter for DC-outlet 1
-BE2
DC-meter for DC-outlet 2 (optional)
-BE3
AC meter
-BX1.1, -BX2.1
DC-outlet 1 isolation monitoring device
-BX2.2, -BX1.2
DC-outlet 1 isolation monitoring device (optional, only when DC-outlet 2 is
present)
-FC1.1, FC1.2
DC-outlet 1 fuses
-FC2.1, FC2.2
DC-outlet 2 fuses
-KF3
CTRL_IO control board
-QB2.1, -QB2.2
DC-outlet 1 contactors
-QB3.1, -QB3.2
DC-outlet 2 contactors (optional, only when DC-outlet 2 is present)
-QB4.1, -QB4.2
-QB5.1, -QB5.2
-QB6.1, -QB5.2
DC-link contactors
-QB7
Contactors for AC charging (optional, only when AC-socket is present)
-XD3.1
DC-busbar + pole for vehicle cable connection XD5 (DC-outlet 1)
-XD3.2
DC-busbar – pole for vehicle cable connection XD5 (DC-outlet 1)
-XD4.1
DC-busbar + pole for vehicle cable connection XD6 (DC-outlet 2)
-XD4.2
DC-busbar – pole for vehicle cable connection XD6 (DC-outlet 2)
Table 7: DC output switchgear components for JUICE ULTRA quadruple slot version

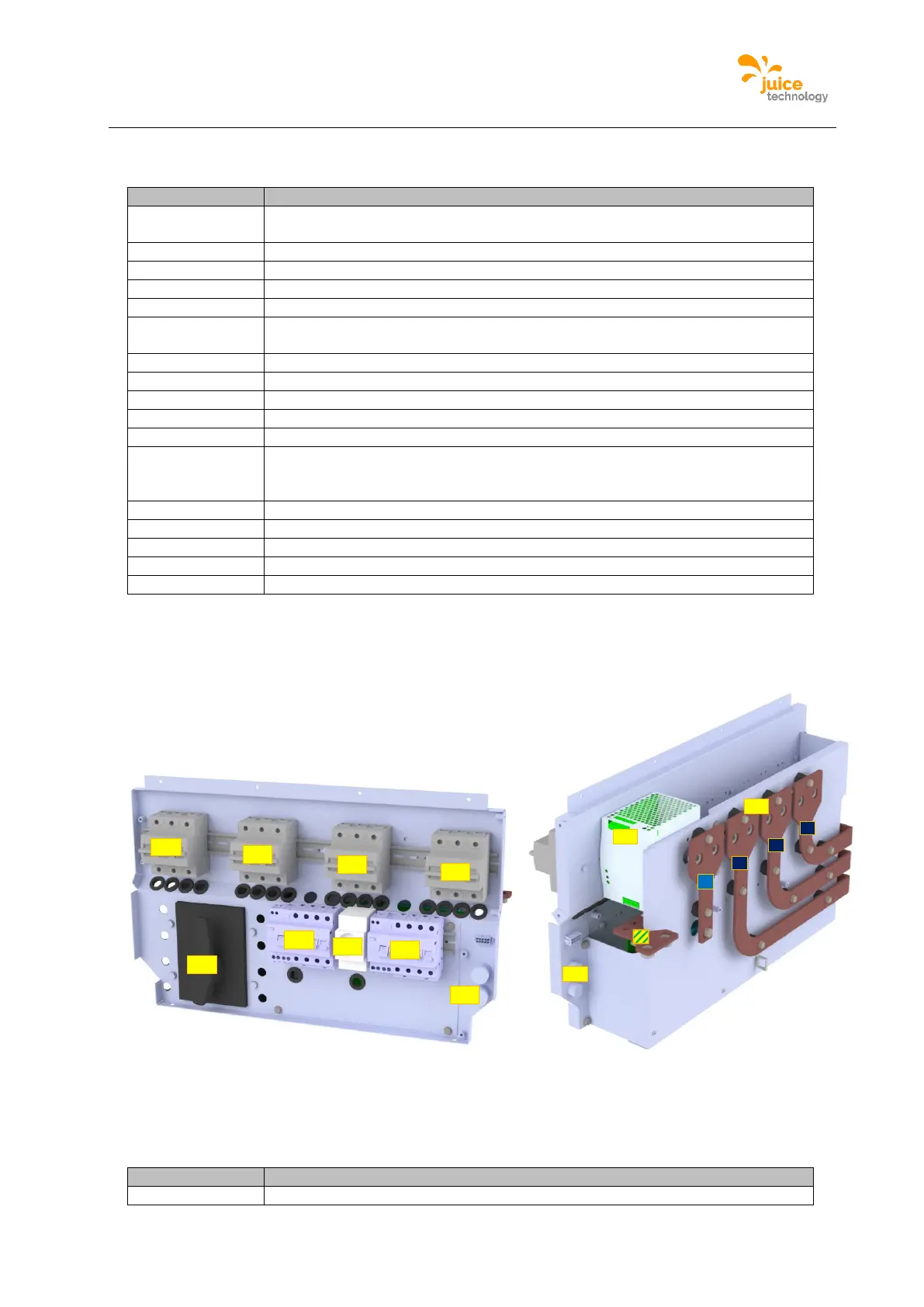

The following figure shows the AC input switchgear of the quadruple slot version:
Figure 17: AC input switchgear of the quadruple slot version
The following table describes the single components highlighted in the figure above:
Identifier
Description
-FA1
Lightning protection and EMI filter device
-QA1
-QA2
-QA3
-QA4
-FB1
-FB2
-QB1
-XD2
-XF1
-XD1
-TB1
-XF1
L3
L2
L1
N
PE
