JUICE ULTRA - Operation Instructions and Installation Guide
Version 1-3A
Page 40 of 72
4 JUICE ULTRA installation
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic s.r.l.
4.1.5. JUICE ULTRA base

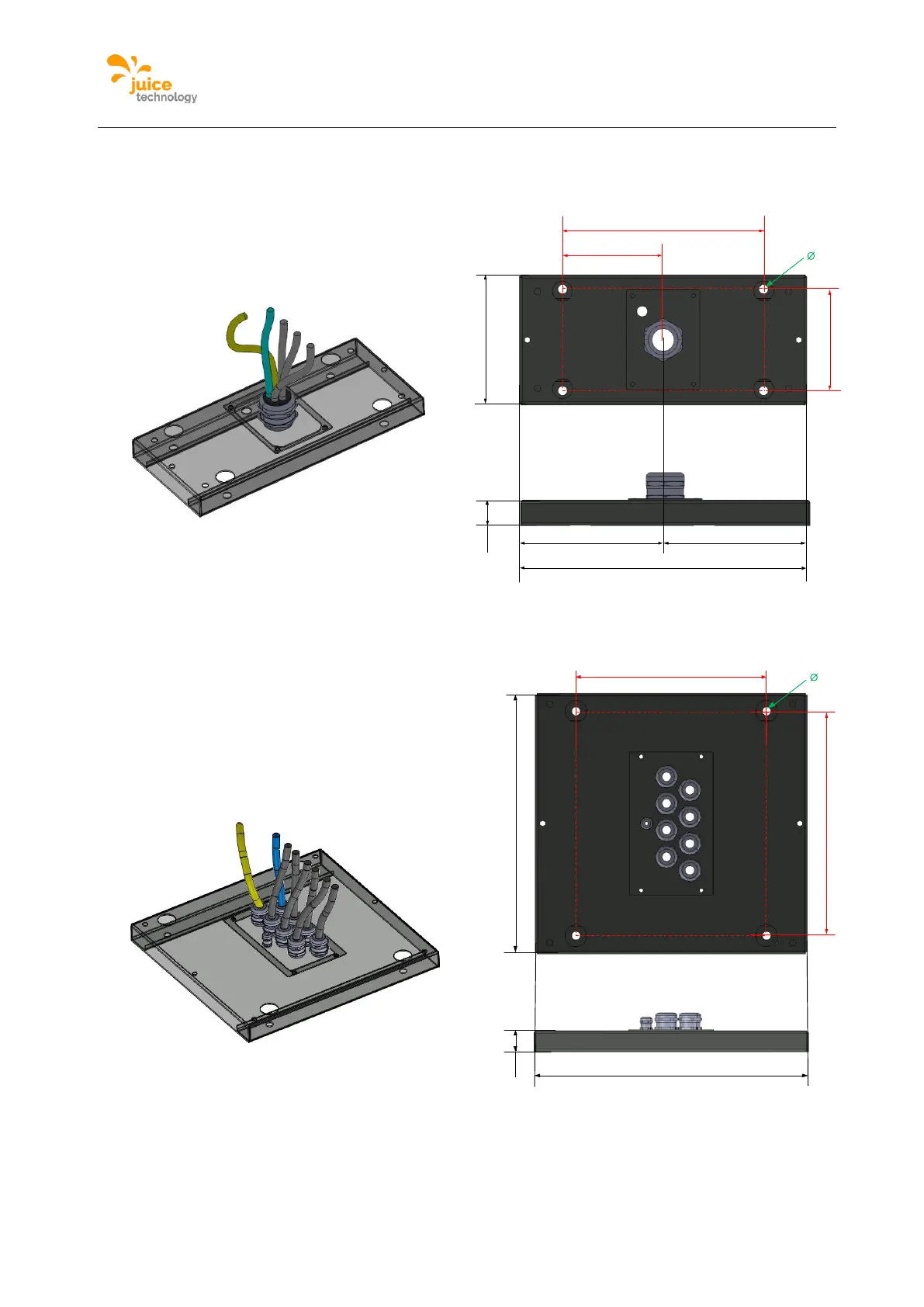

The following figure shows the JUICE ULTRA-base for the double slot version:
Figure 26: JUICE ULTRA-base for the double slot version
The following figure shows the JUICE ULTRA-base for the quadruple slot version:
Figure 27: JUICE ULTRA-base for the quadruple slot version
The JUICE ULTRA base has to be screwed together with the concrete foundation by min.
4x M12x30 screws and washers (M12 x 32mm / delivered together with the JUICE ULTRA).
The screws are to be tightened with a torque of 90Nm.
400
200
200
256
18mm
572
50
286
286
400
470
546
18mm
50
572
