Juice ULTRA - Cable Reach; Figure 23: Cable Reach for the Two DC Outlets of the JUICE ULTRA

JUICE ULTRA - Operation Instructions and Installation Guide
Version 1-3A
4 JUICE ULTRA installation
Page 35 of 72
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic s.r.l.
on the concrete foundation or the concrete floor and builds the mechanical base for the
JUICE ULTRA installation and fixes the connection of the mains-side supply cables into the
JUICE ULTRA with cable glands.
Attention
Before installation, compliance with all legal requirements for the
installation site (for example, stability against tipping, impact protection,
effects of frost, etc.) must be checked.
Each outlet or each vehicle clutch must be arranged in consideration of the
ergonomics and mechanical impact protection, as close as possible to the
car park to be supplied.

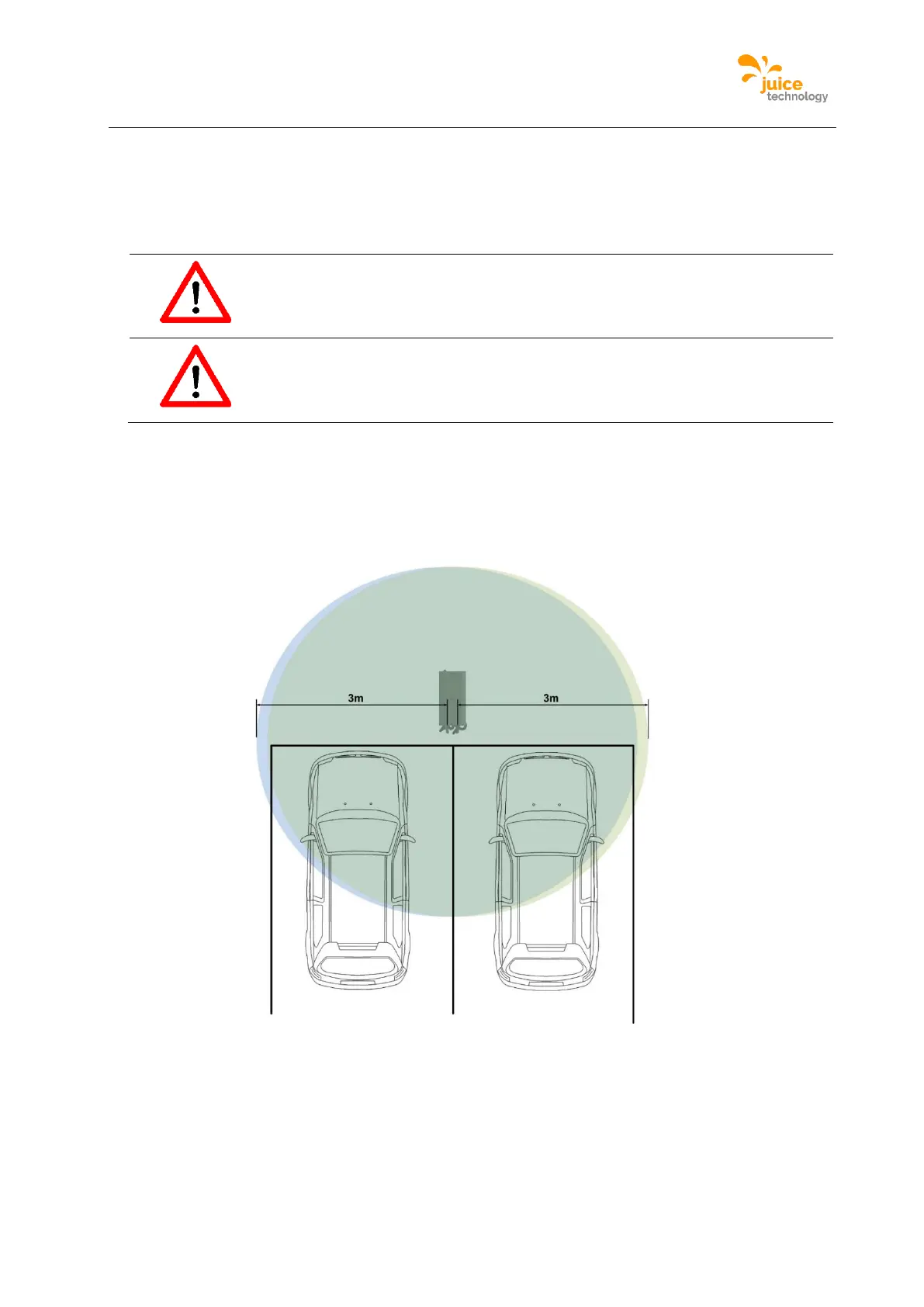

4.1.2. Cable reach
In its default configuration, the JUICE ULTRA comes with a cable length of 350cm. The
following figure shows the operating radius (3m) of the cables for the two DC outlets of the
JUICE ULTRA.
Figure 22: Cable reach for the two DC outlets of the JUICE ULTRA
