4.2.3. Preparation mains power-supply cables
After the JUICE ULTRA base is mounted (see chapter 4.1.5), the mains-side cables should
be conducted through foundation and JUICE ULTRA-base. Then the mains-side cables
should be fixed by tightening the cable gland.
For the hypercharge-base different cable entry plates are available to enable different mains
power-supply cable types:
1 x M63 Hole for 3 different cable
glands with a clamping range of:
27-39mm
34-45mm
44-55mm
1 x M20 Hole for a cable gland
with a clamping range of:
7-13mm
5 x M40 Hole for cable glands
with a clamping range of:
19-28mm
1 x M20 Hole for cable glands
with a clamping range of:
7-13mm
8-10 x M40 Hole for cable
glands with a clamping range of:
19-28mm
0-1 x M25 Hole for cable glands
with a clamping range of:
11-17mm
0-1 x M20 Hole for cable glands
with a clamping range of:
7-13mm
Table 13: Available cable entry plates for JUICE ULTRA-base
The necessary cable entry plate depends on the used mains power-supply cable and should
be defined during the ordering of the JUICE ULTRA.
Afterwards M12 - M16 (preferable M16 - to facilitate the connection) cable lugs can be
mounted on the positions defined in Figure 30.

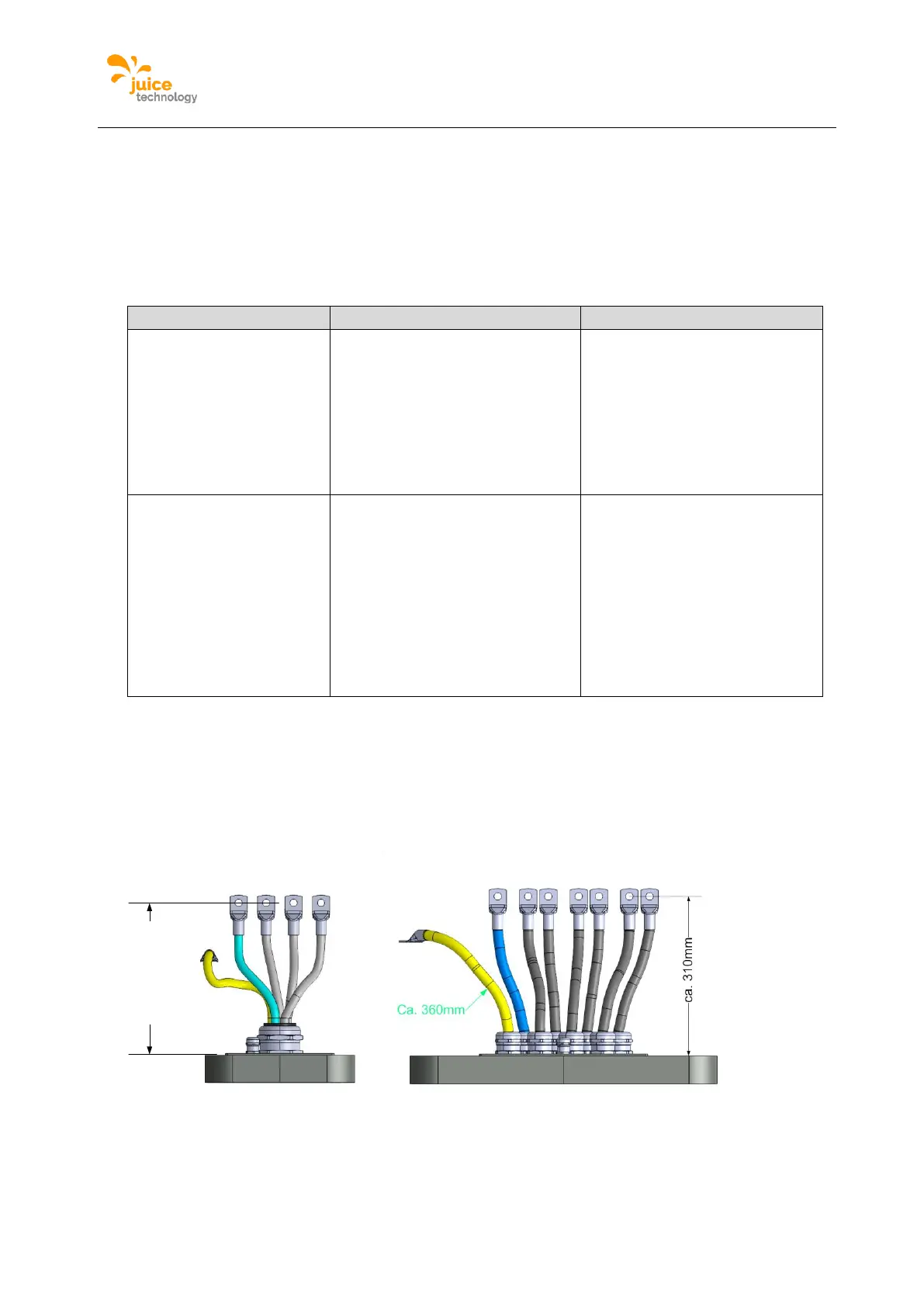

Figure 30: Cable inlet and connection lengths for double slot version and quadruple slot version
