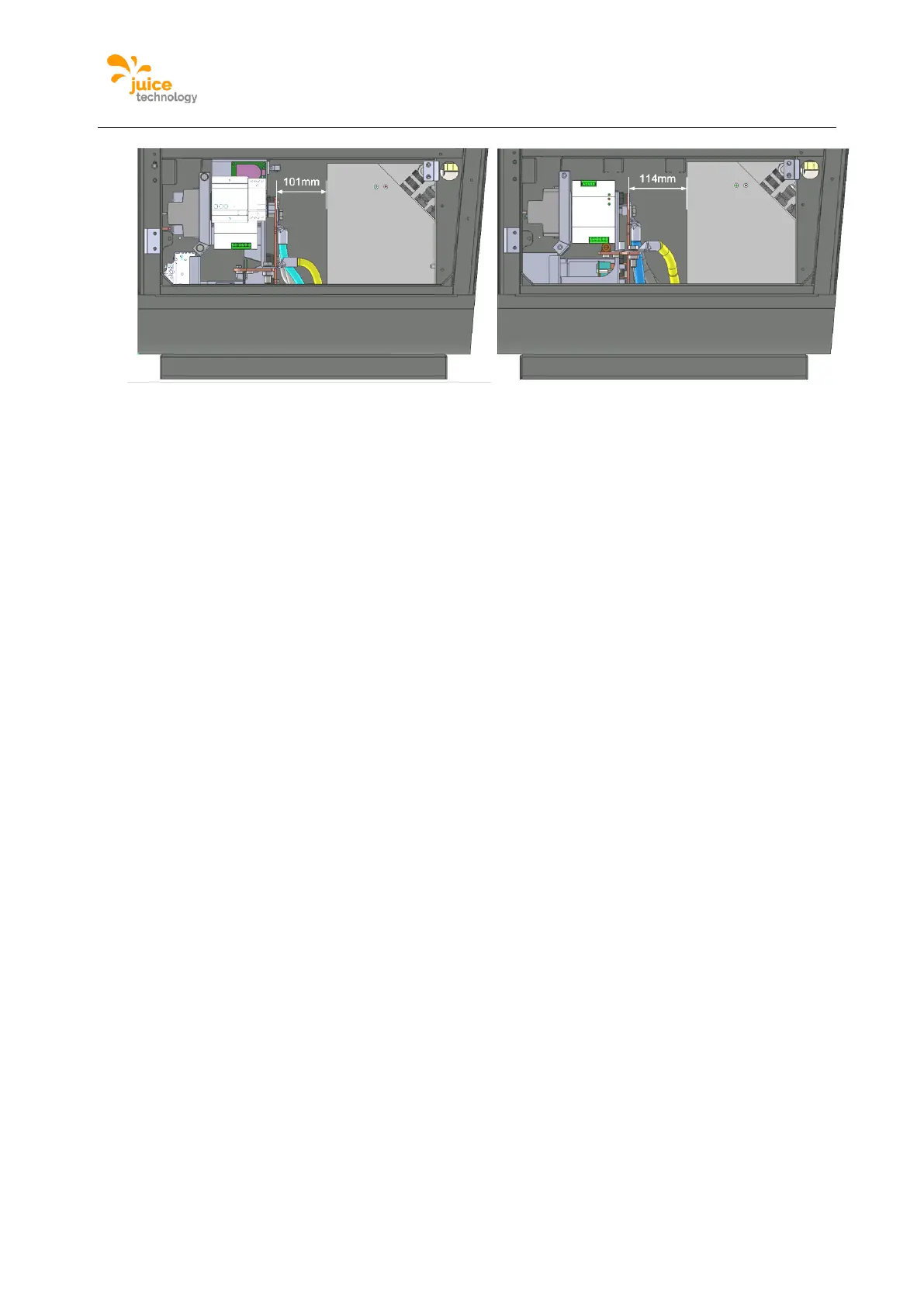

Figure 32: Sideview of the input Busbars (double slot version left, quadruple slot version right)
If an active cooled Cable is used (option), the cooling unit for cooled charging cable should
be removed during grid connection (see 7.3.).
