JUICE ULTRA - Operation Instructions and Installation Guide
Version 1-3A
4 JUICE ULTRA installation
Page 39 of 72
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic s.r.l.
The outer dimensions related to the center of the base plate are shown in Figure 25 for the
quadruple slot version:

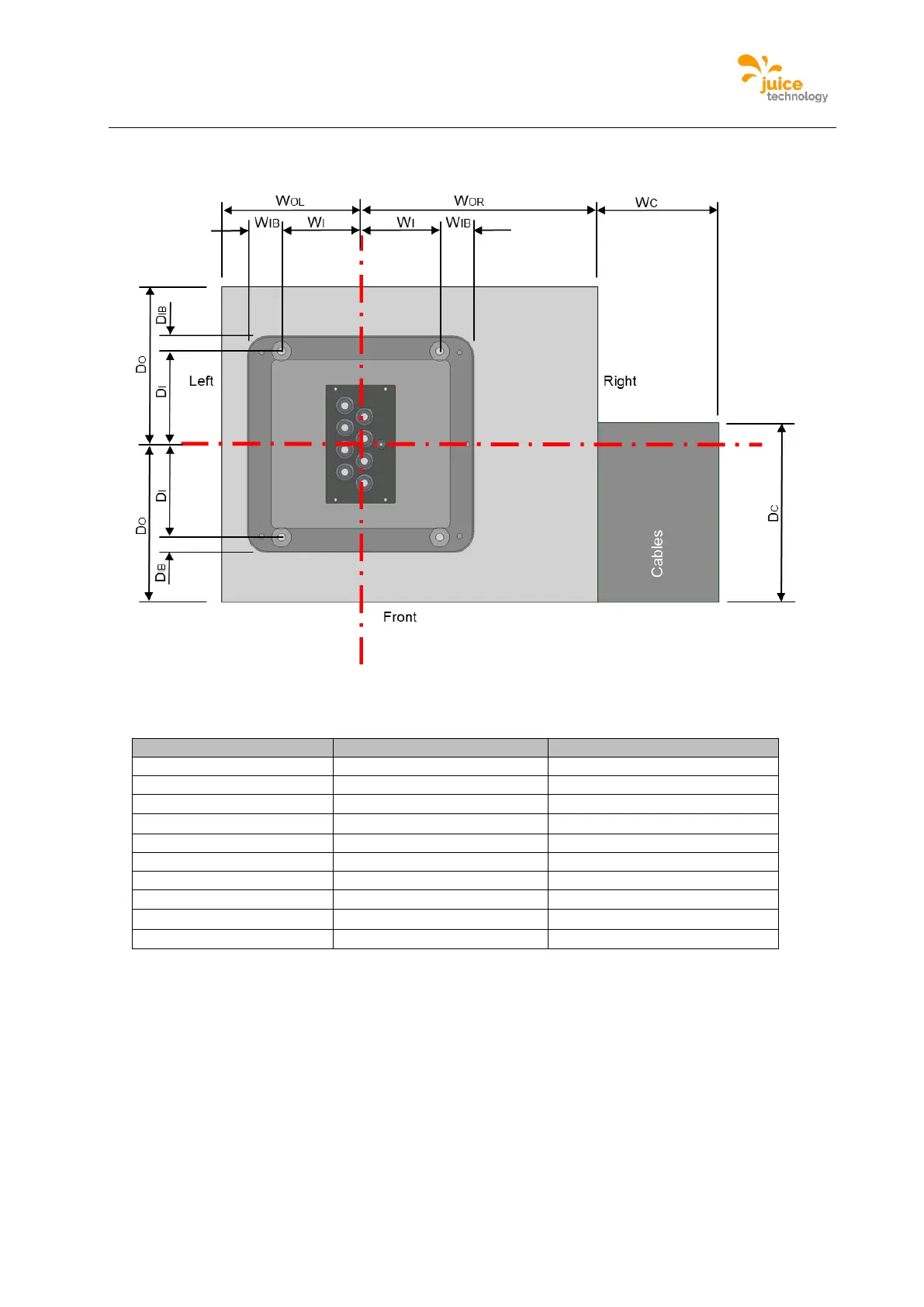

Figure 25: Distances between base plate and outer dimensions of charging station on the concrete
foundation quadruple slot version (display/top view)
Distance
double slot version
quadruple slot version
DC
420 mm
420 mm
DI
100 mm
235 mm
DIB
36 mm (± 3 mm)
36 mm (± 3 mm)
DO
210 mm (± 3 mm)
366 mm (± 3 mm)
HT
2250 mm (± 3 mm)
2250 mm (± 3 mm)
WC
300 mm
300 mm
WI
200 mm
200 mm
WIB
86 mm (± 3 mm)
86 mm (± 3 mm)
WOL
357 mm (± 3 mm)
357 mm (± 3 mm)
WOR
519 mm (± 3 mm)
516 mm (± 3 mm)
Table 12: Distances between base plate and outer dimensions of charging station
The JUICE ULTRA base includes cable entry plate for the cable glands which must be
defended at the order.
