4 JUICE ULTRA installation
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic s.r.l.

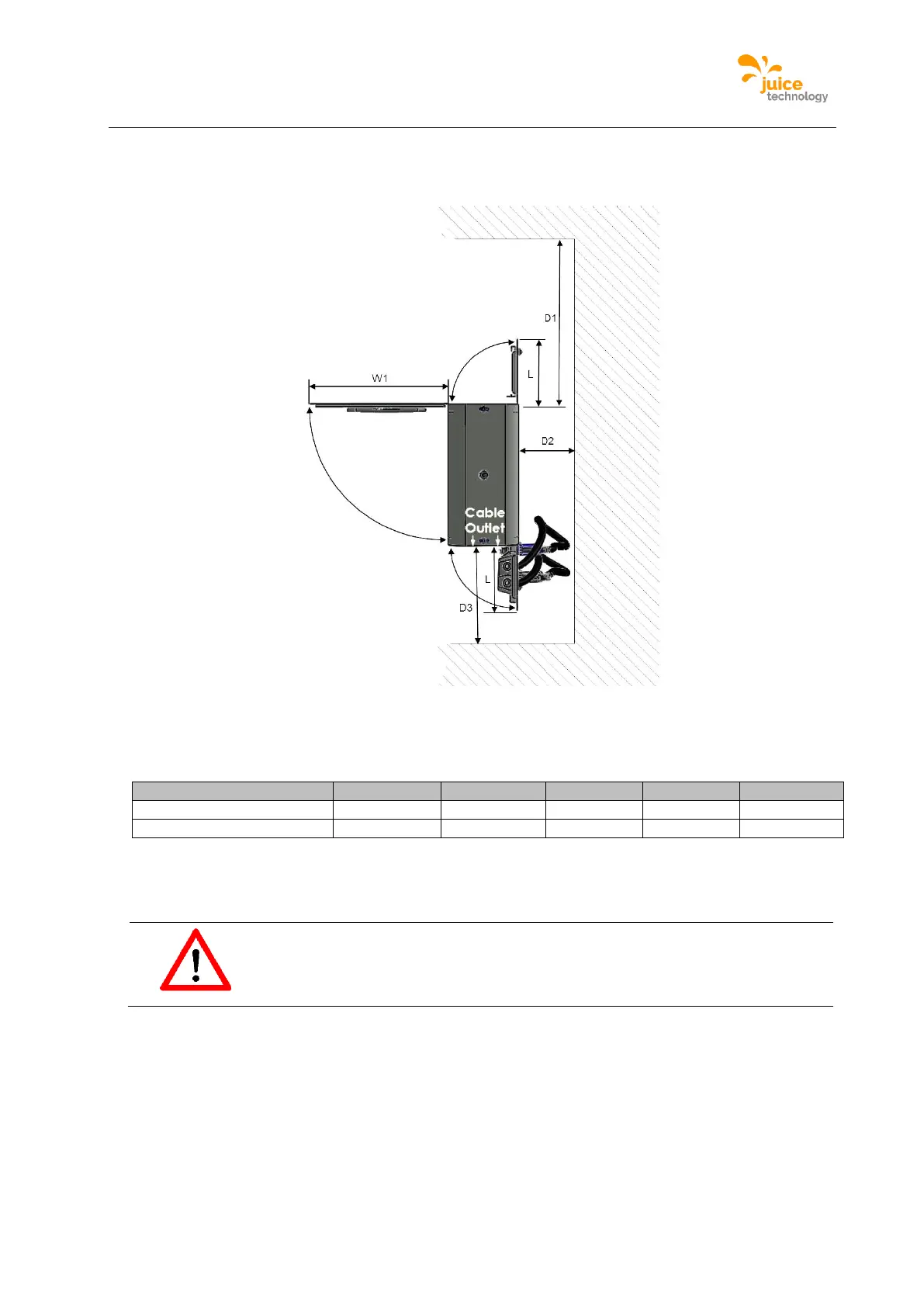

The following figure shows the recommended minimum distances which should be kept free
during installation on site:
Figure 23: Recommended distances for site configuration
The figure above shows the JUICE ULTRA housing for the double slot version, the distances
for the both housings can be found in the following table.
Table 11: Distances to keep free for service
Attention
The legal minimum widths for escape routes must be respected in any
case.
To allow easy replacement of the power-stacks, a clearance of at least 110cm must be
available on the left side (see D1).
At least a distance of 1100mm (D1) and 1000mm (D3) must be maintained in front of the
ventilation grilles to not impair the circulation of the supply and exhaust air. It must also be
prevented that the exhaust air is reintroduced into the supply air circuit.
Impairments to the air circulation may lead to a derating of the charging station.
