The display door can be opened with the release of the locking mechanism behind the
charging cable door, see following picture.

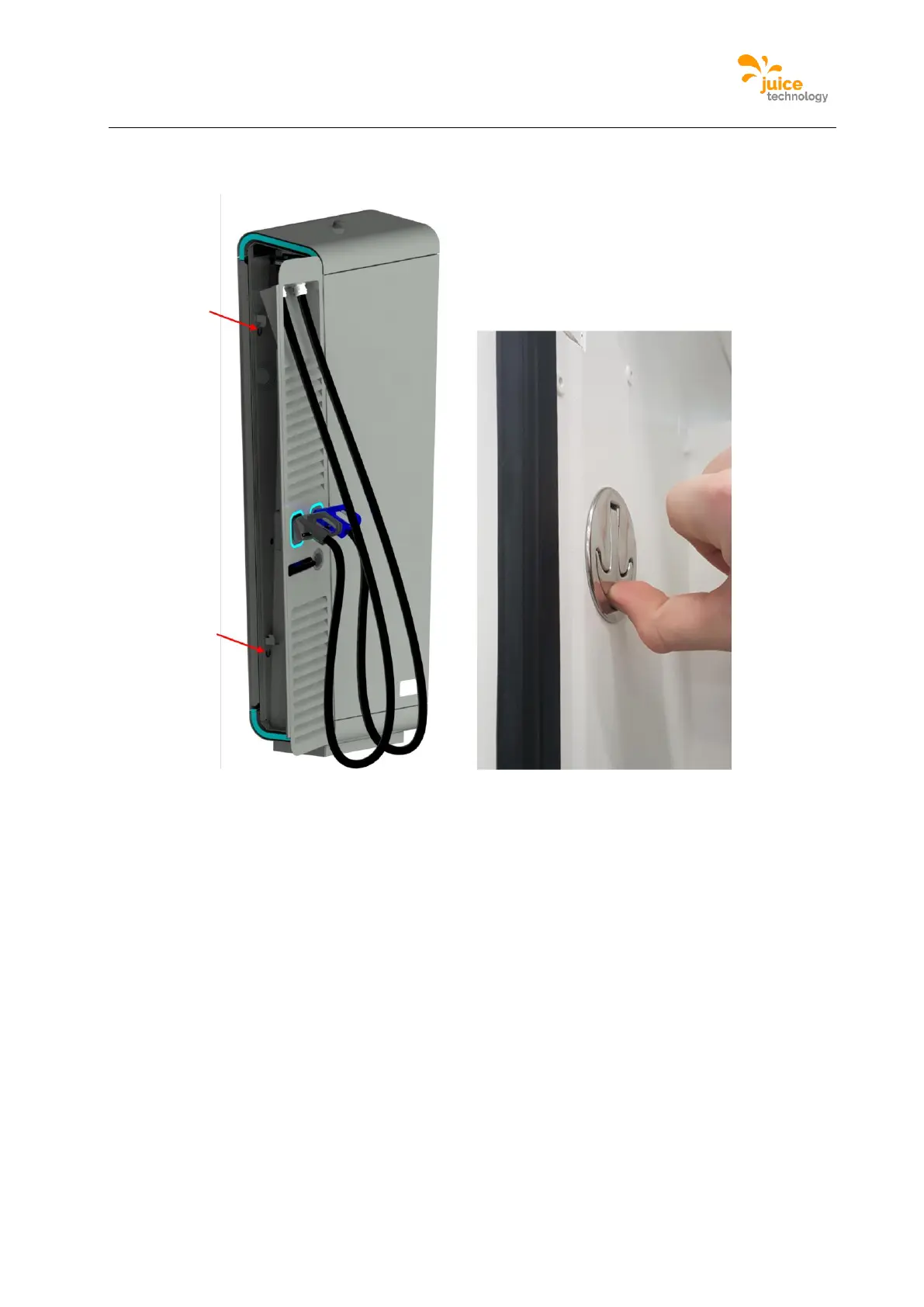

Figure 9: Locking mechanism for the display door
