Juice ULTRA - DC-Power; Figure 6: DC-Power Characteristic with One, Two, Three and Four JUICE ULTRA Power-Stacks

JUICE ULTRA - Operation Instructions and Installation Guide
Version 1-3A
Page 14 of 72
2 Product description
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic s.r.l.
2.2. DC-Power
75kW JUICE ULTRA power-stacks are used to supply the DC-charging cables installed on
the JUICE ULTRA. One power-stack can supply only one DC-charging cable at the same
time.
The JUICE ULTRA power-stacks can be switched in parallel mode to increase the power
conducted via one DC-charging cable.
Hint
The usable DC-Power on a DC-outlet is limited by the maximum current of
the used DC-charging cable.

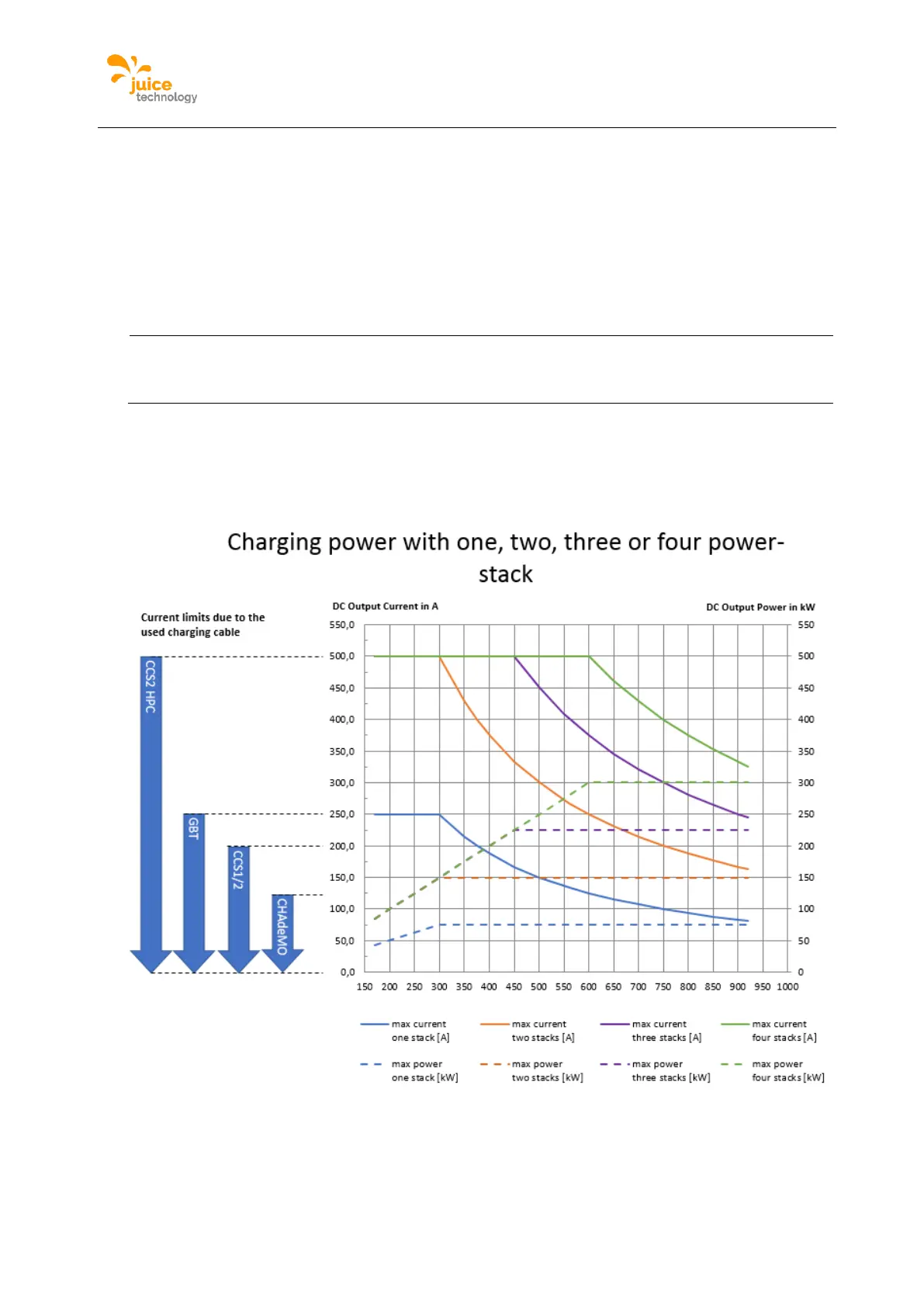

The following picture shows the DC-Power characteristic with one, two, three and four JUICE
ULTRA power-stacks and different cable types (CCS2 HPC liquid cooled cable, 250A not
liquid cooled GB/T cable, 200A not liquid cooled CCS1 and CCS2 cable, 125A not liquid
cooled CHAdeMO cable)
Figure 6: DC-Power characteristic with one, two, three and four JUICE ULTRA power-stacks and
different cable types
