Juice ULTRA - Figure 9: Order for Opening the JUICE ULTRA Doors

JUICE ULTRA - Operation Instructions and Installation Guide
Version 1-3A
Page 18 of 72
2 Product description
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic s.r.l.
Attention
When opening the display door, make sure that the service door is open
before (see the following figure).
Otherwise there is a risk to damage the reflector stripe of the service door.

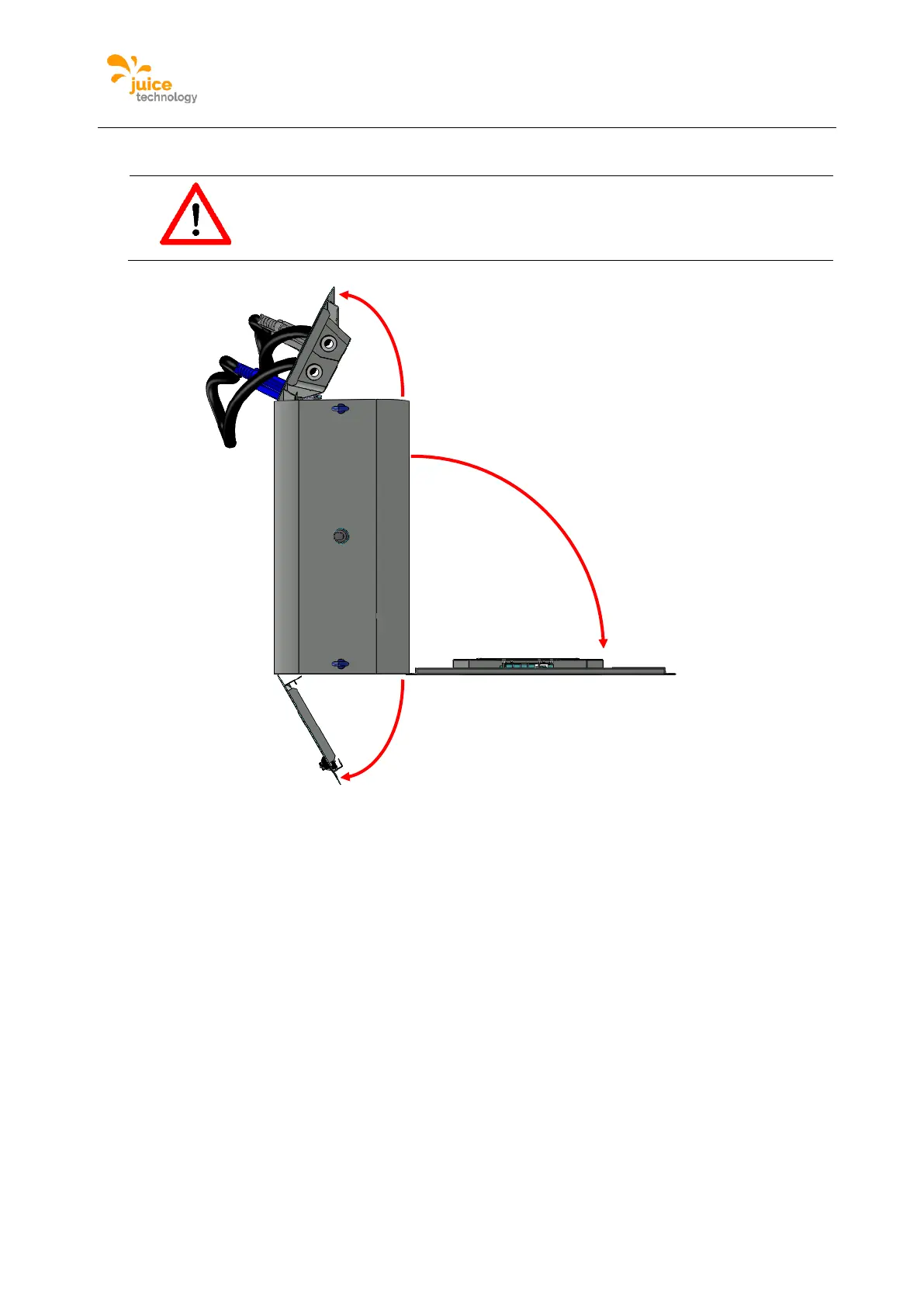

Figure 8: Order for opening the JUICE ULTRA doors
2° open charging cable door
3° open display door
1° open service door
