b. Use the thumbscrews to fasten or loosen the cable guard so that you can insert cables. See Figure
52 on page 110.

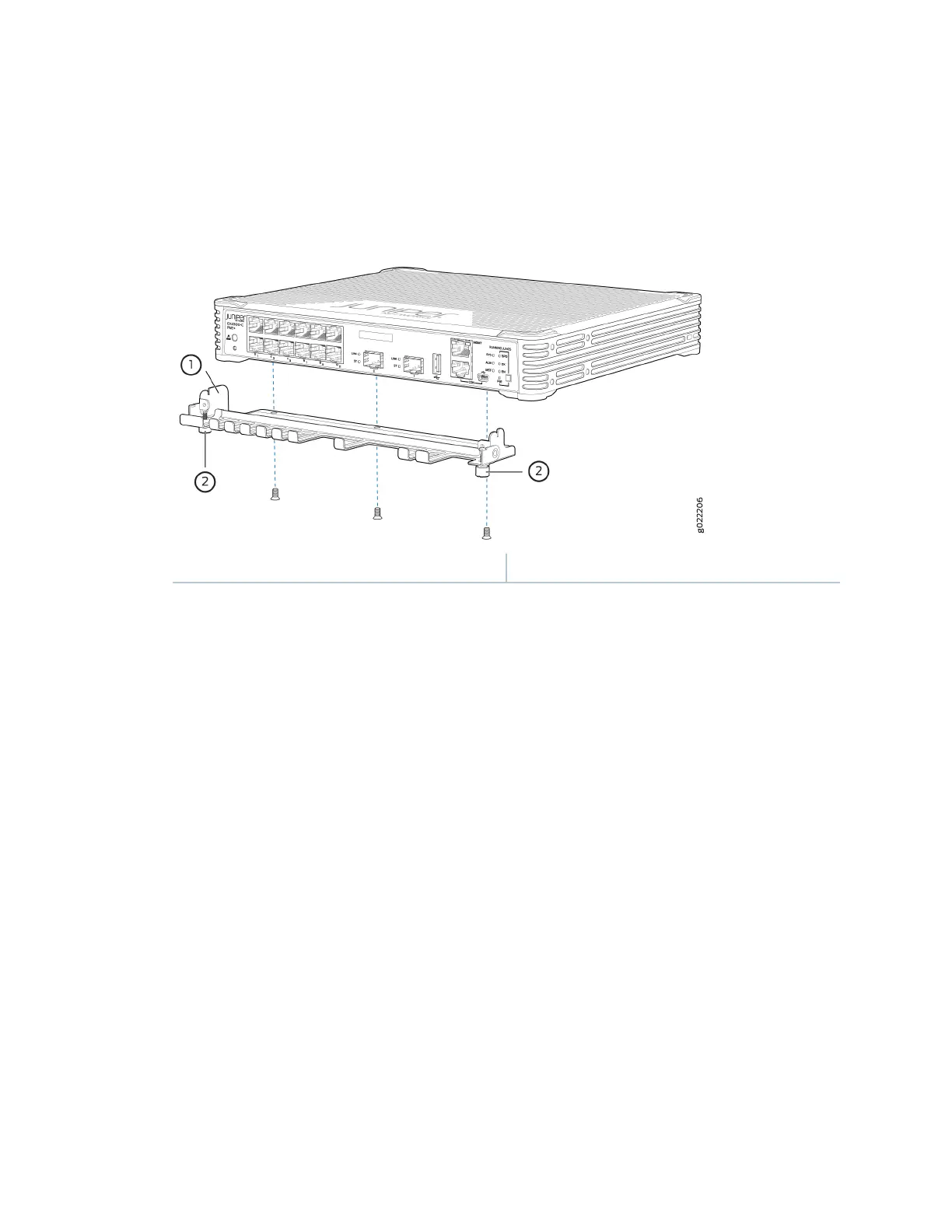

Figure 52: Aaching a Cable Guard to an EX2300-C Switch
1— Cable guard 2— Thumb screws
3. Install three mounng screws under the desk or the level surface at the locaons A, B, and C shown
in Figure 53 on page 111.
