Juniper EX2300 Series Hardware Guide

Figure 1 on page 6 shows the front panel of an EX2300-C switch with 12 Gigabit Ethernet ports with
PoE capability and Figure 2 on page 6 shows the front panel of an EX2300-C switch with 12 Gigabit
Ethernet ports without PoE capability.

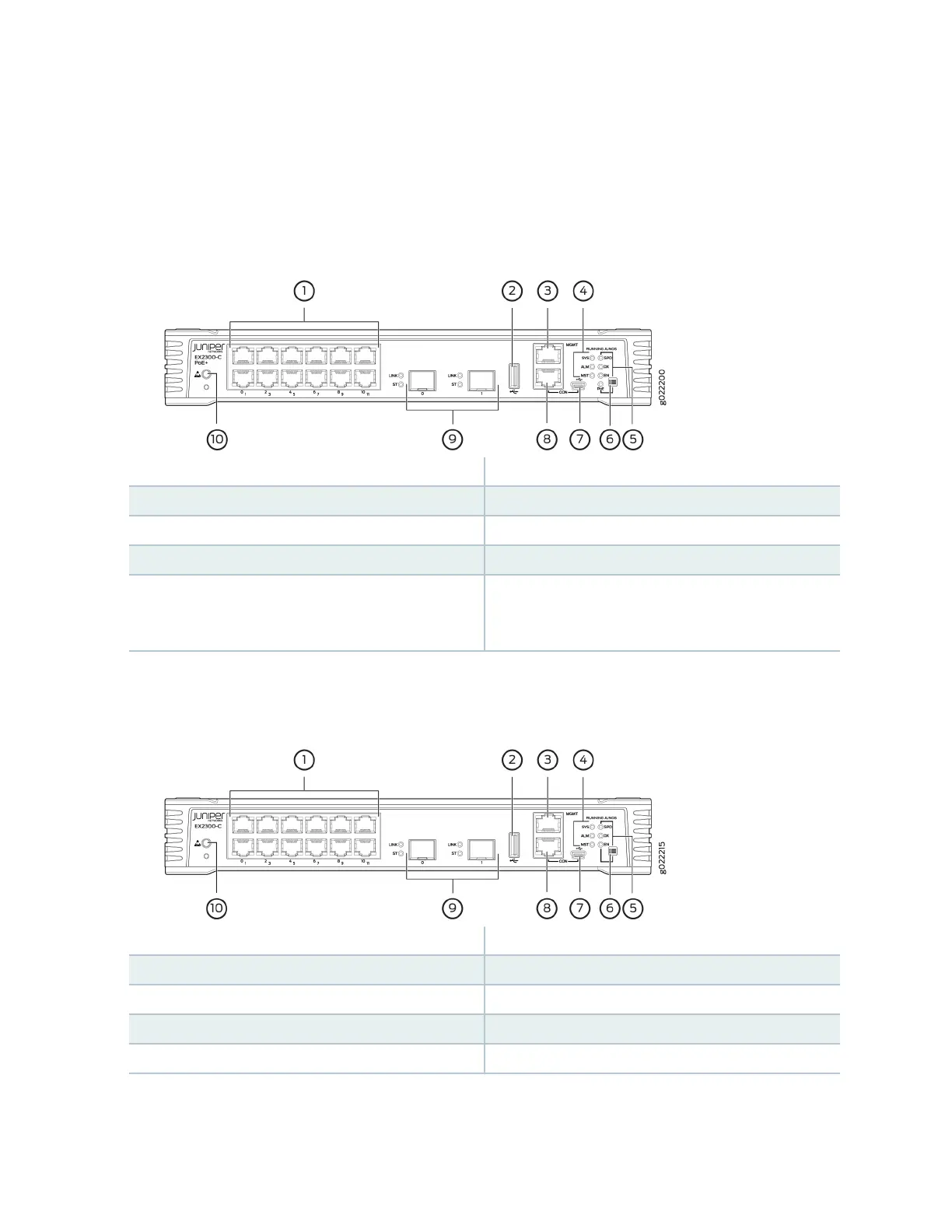

Figure 1: Front Panel of an EX2300-C Switch with 12 Gigabit Ethernet Ports with PoE Capability
1—
RJ-45 network ports
6—
Factory Reset/Mode buon
2—
USB port
7—
Mini-USB console port
3—
Management Ethernet port
8—
RJ-45 console port
4—
Chassis status LEDs
9—
10-Gigabit Ethernet uplink ports
5—
Port status mode LEDs. The LED labeled PoE
is present only on models with PoE
capability.
10—
ESD point
Figure 2: Front Panel of an EX2300-C Switch with 12 Gigabit Ethernet Ports without PoE Capability
1—
RJ-45 network ports
6—
Factory Reset/Mode buon
2—
USB port
7—
Mini-USB console port
3—
Management Ethernet port
8—
RJ-45 console port
4—
Chassis status LEDs
9—
10-Gigabit Ethernet uplink ports
5—
Port status mode LEDs
10—
ESD point
6

Juniper EX2300 Series Specifications

General

Software	Junos OS
Model	EX2300
Ports	24 or 48 10/100/1000BASE-T ports
Uplinks	4 x 1GbE/10GbE SFP+/SFP uplinks
Power Supply	Internal or external power supply options
Rack Units	1U
PoE/PoE+ Ports	Available on some models (EX2300-C and EX2300)
Operating Temperature	0° to 45°C
Input Voltage	100 to 240 VAC
Layer 3 Features	RIP, OSPF, VRRP
Layer 2 Features	VLAN, STP, RSTP, MSTP, LACP
Security Features	802.1X, DHCP snooping
Management	CLI, Web UI, SNMP
