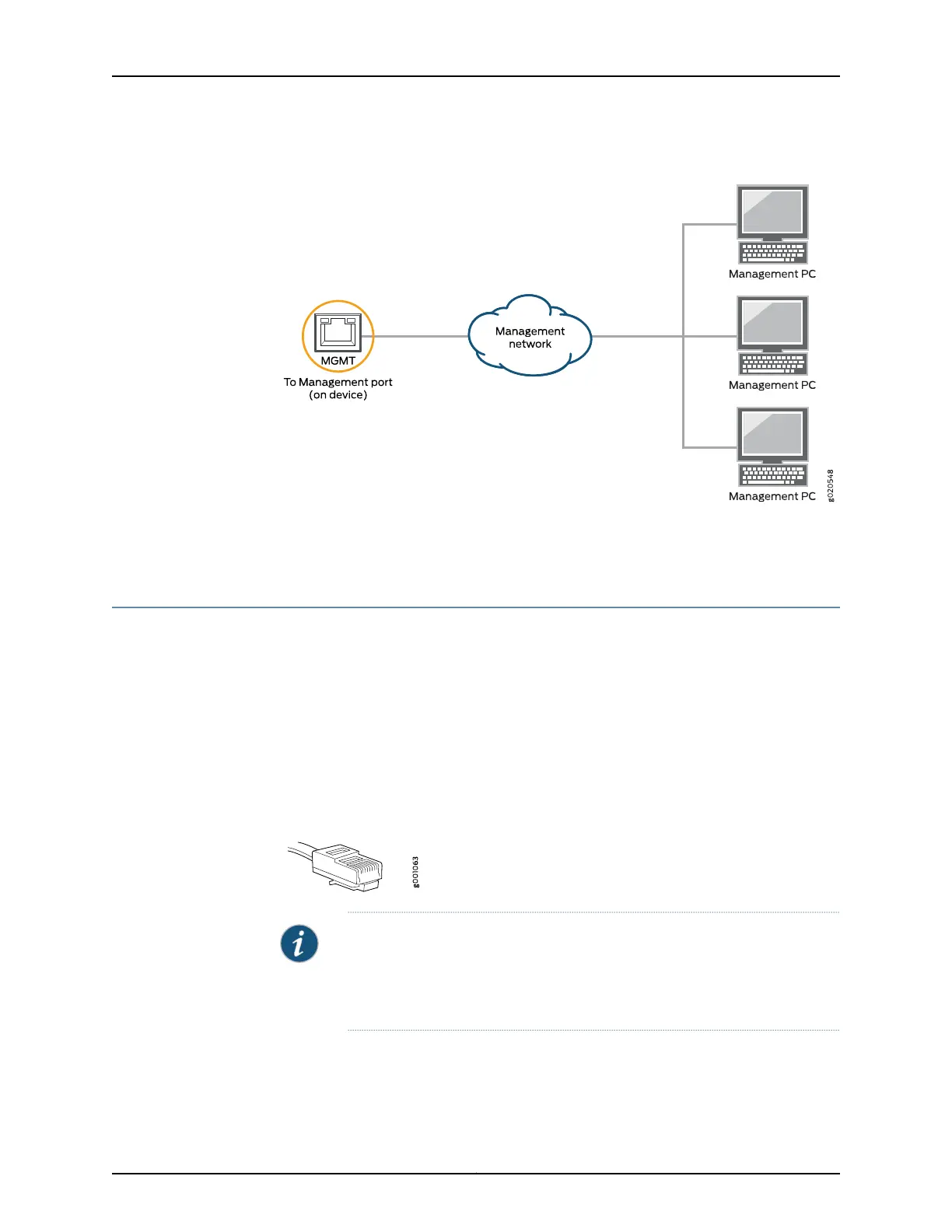

Figure 32: Connecting a Device to a Network for Out-of-Band Management
Related
Documentation
Connecting a Device to a Management Consoleby Using an RJ-45 Connector on page94•
Connecting a Device to a Management Console by Using an RJ-45 Connector
You can configure and managethese devices by using a dedicatedmanagementchannel.
Each device has a console port to which you can connect an Ethernet cable with an RJ-45
connector. Use the console port to connect the device to the console server or
management console. The console port accepts a cable that has an RJ-45 connector.
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. One
such cable and an RJ-45 to DB-9 serial port adapter are supplied with the device.
Figure 33 on page 94 shows the RJ-45 connector of the Ethernet cable.
Figure 33: RJ-45 Connector on an Ethernet Cable
NOTE: If your laptop or PC does not have a DB-9 male connector pin and you
want to connect your laptop or PC directly to the device, use a combination
of the RJ-45 to DB-9 female adapter supplied with the device and a USB to
DB-9 male adapter. You must provide the USB to DB-9 male adapter.
Copyright © 2017, Juniper Networks, Inc.94
QFX5110 Switch Hardware Guide

Juniper QFX5110 Specifications

General

Model	QFX5110
Power Supply	Dual, hot-swappable
Rack Units	1U
Operating Relative Humidity	5% to 90% non-condensing
Input Voltage	100-240 VAC
Operating System	Junos OS
Layer Support	Layer 2 and Layer 3
Virtual Chassis Support	Yes
Ports	48 x 10GbE SFP+
Jumbo Frames	9216 bytes
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Altitude	Up to 3, 048 m
Management	CLI
AC Input Frequency	50/60 Hz
Storage Temperature	-40°C to 70°C
MTBF	Consult Juniper documentation for specific values.
