Juniper QFX5240 - Page 106

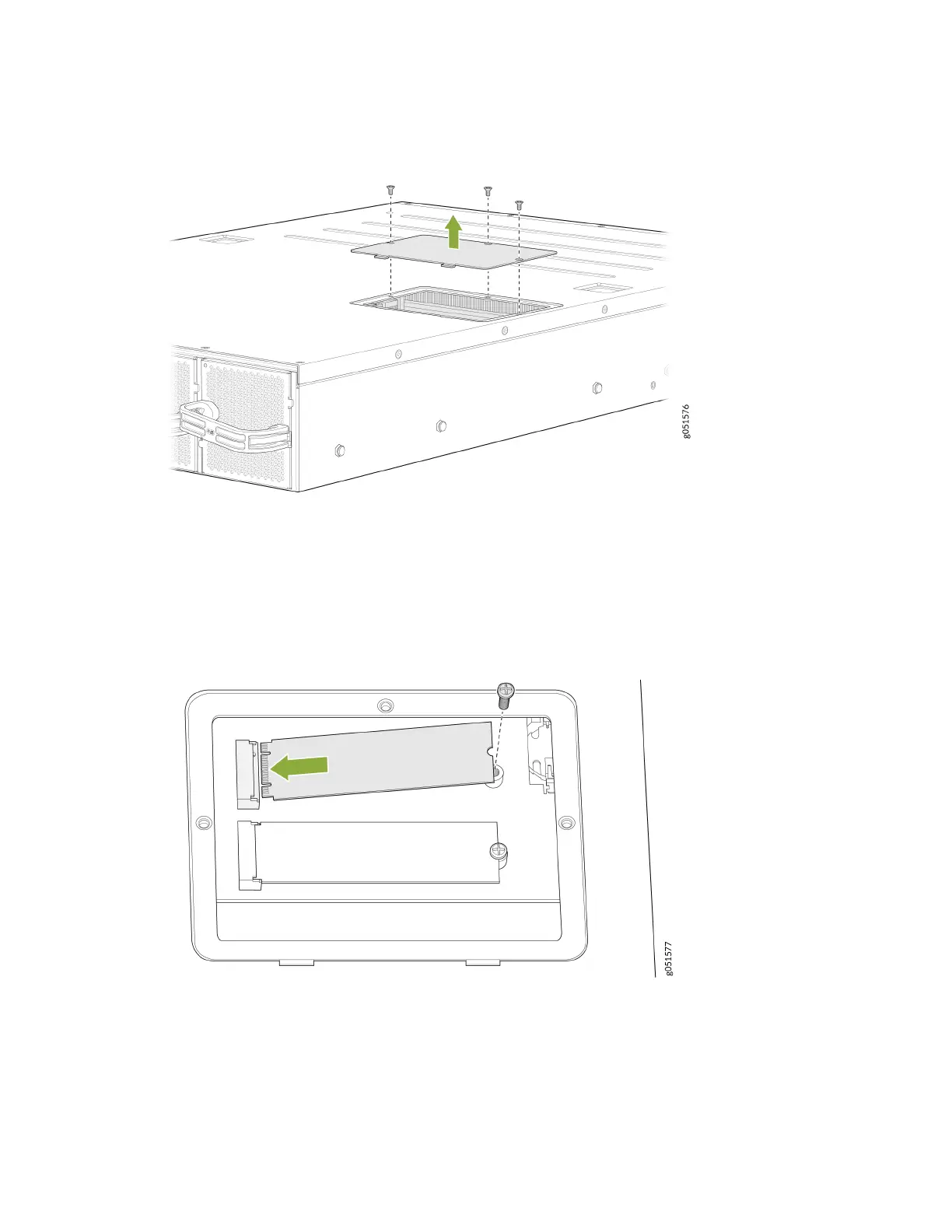

Figure 37: Remove the SSD Cover Plate
5. Slide the drive into the SSD plug and ghten the single screw holding the SSD (see Figure 38 on page
99).
Figure 38: Install the SSD
6. Place the SSD cover plate back on the chassis and ghten the three screws securing the SSD cover
plate. See Figure 39 on page 100.
99
