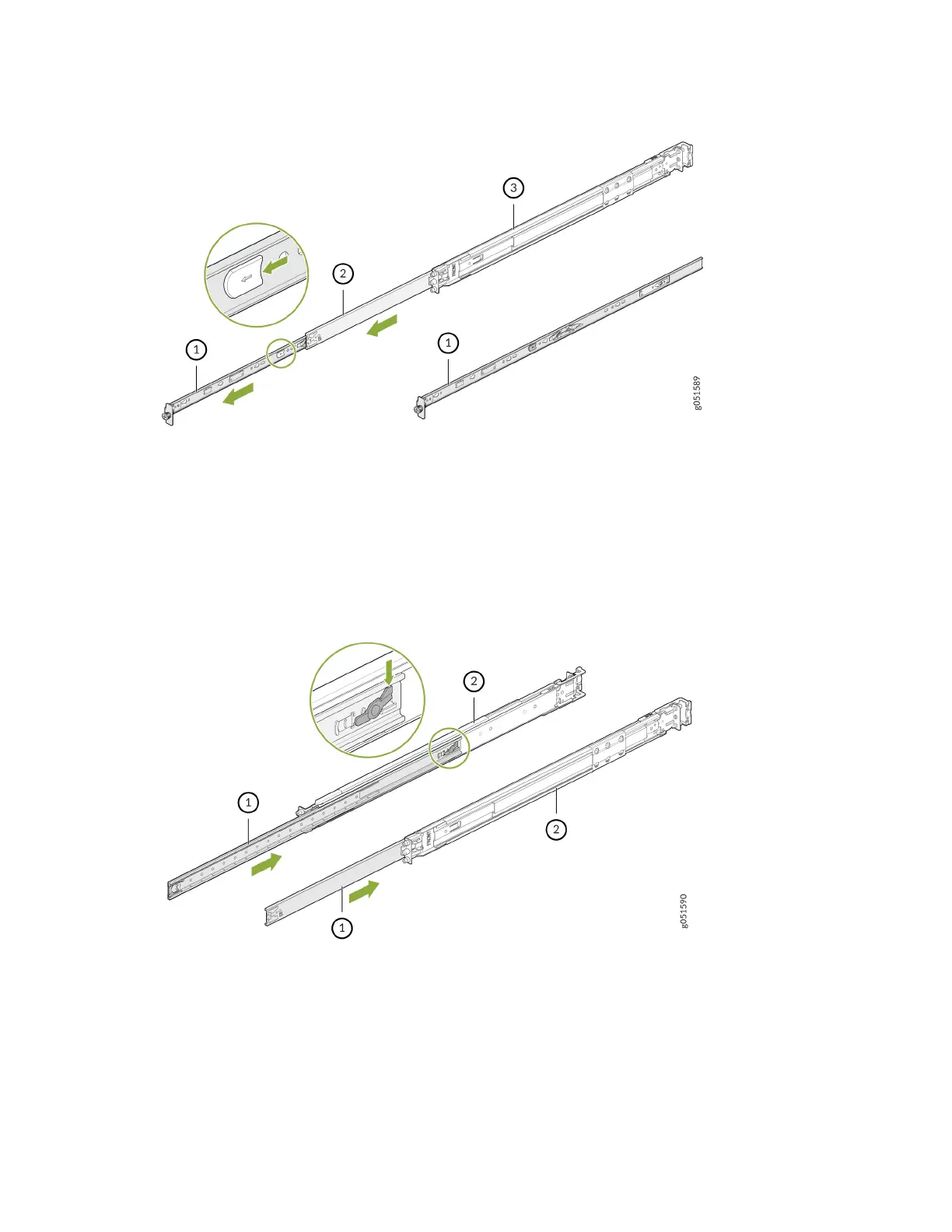

a. Inner rail bracket
b. Slider rail
c. Outer rail
4. Press the latch on the slider rail down and retract the slider rail into the slide rail assembly.
a. Slider rail
b. Outer rail
75
