To measure:
8. Click and drag any of the grab points on either side of the vertical
midline. A set of measurements is displayed.
In the example above, the first number, -12.66, is the horizontal
distance in millimeters of the grab point to the vertical midline. The
second number, 63.86, is the distance in millimeters from the
anterior start of the image. When the patient’s left and right side grab
points are touched, these numbes give an indication of symmetry.
The vertical midline represents the center of the slice and is
determined by the point fartherest anterior from the contour line
when the contour line is created.

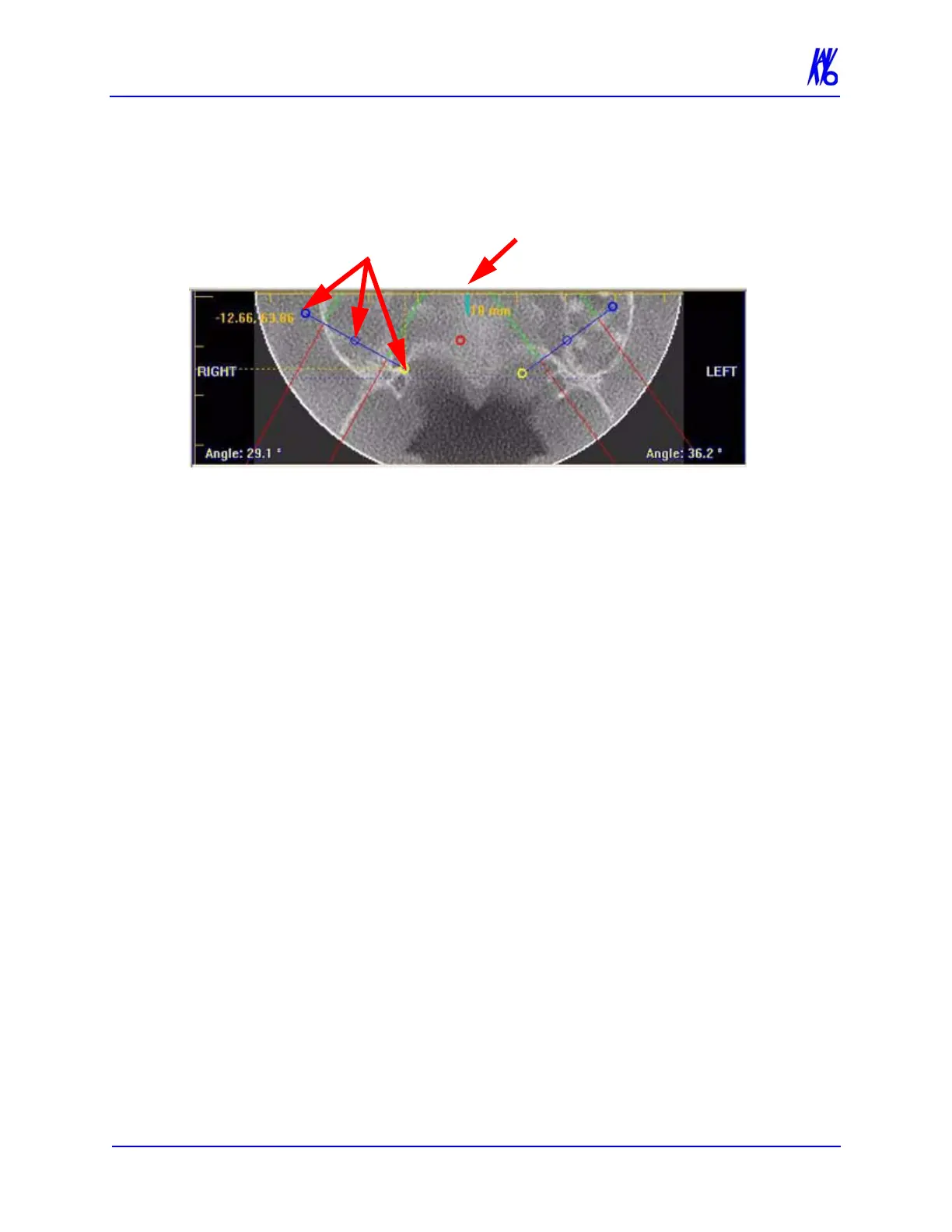

VERTICAL MIDLINE
GRAB POINTS
