Special Tools
Special tools are the specially designed tools used for special positions in order to assemble or disassemble
certain parts of the motorcycle. Proper special tools are essential in terms of the complete and proper adjustment
and assembling. The special tools can assemble and disassemble parts safely, dependably and quickly, which can
improve working efficiency by saving labor and energy.
1 Tools used for the overhaul of engine
When assembling and disassembling the engine, specially designed tools are needed to properly assemble and
disassemble some parts.

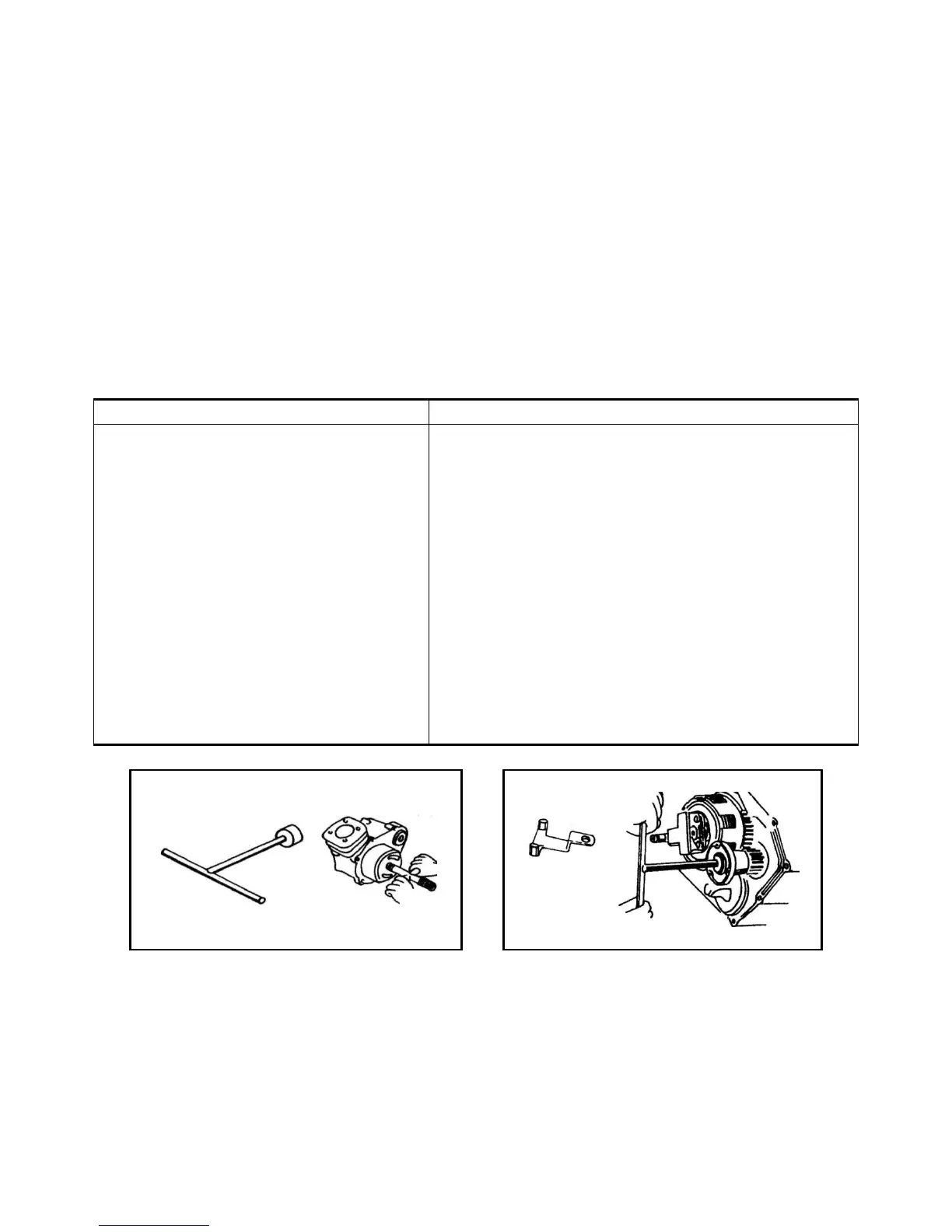

The special tools list to assemble and disassemble the engine parts and the corresponding physical figure,
please see Table 1-1 and 1-2.
Table 1-1
special socket wrench
clutch clamper
flywheel extractor
proof stick
bearing disassembling tool
bearing assembling tool
oil seal assembler/disassembler
dismantling tool handle
piston pin pulling off device
piston ring opening pliers
spark plug socket wrench
measuring the thickness of clutch
cylinder diameter determinator
dial gauge
Used for assembling and disassembling Flywheel Bolt, Figure 1-3
Figure 1-4
Figure 1-5
Figure 1-6
Figure 1-7
Figure 1-8
Figure 1-9
Figure 1-10
Figure 1-11
Figure 1-12
Figure 1-13
Figure 1-14
Figure 1-15
Measuring the inside diameter of piston pin hole，Figure 1-16
