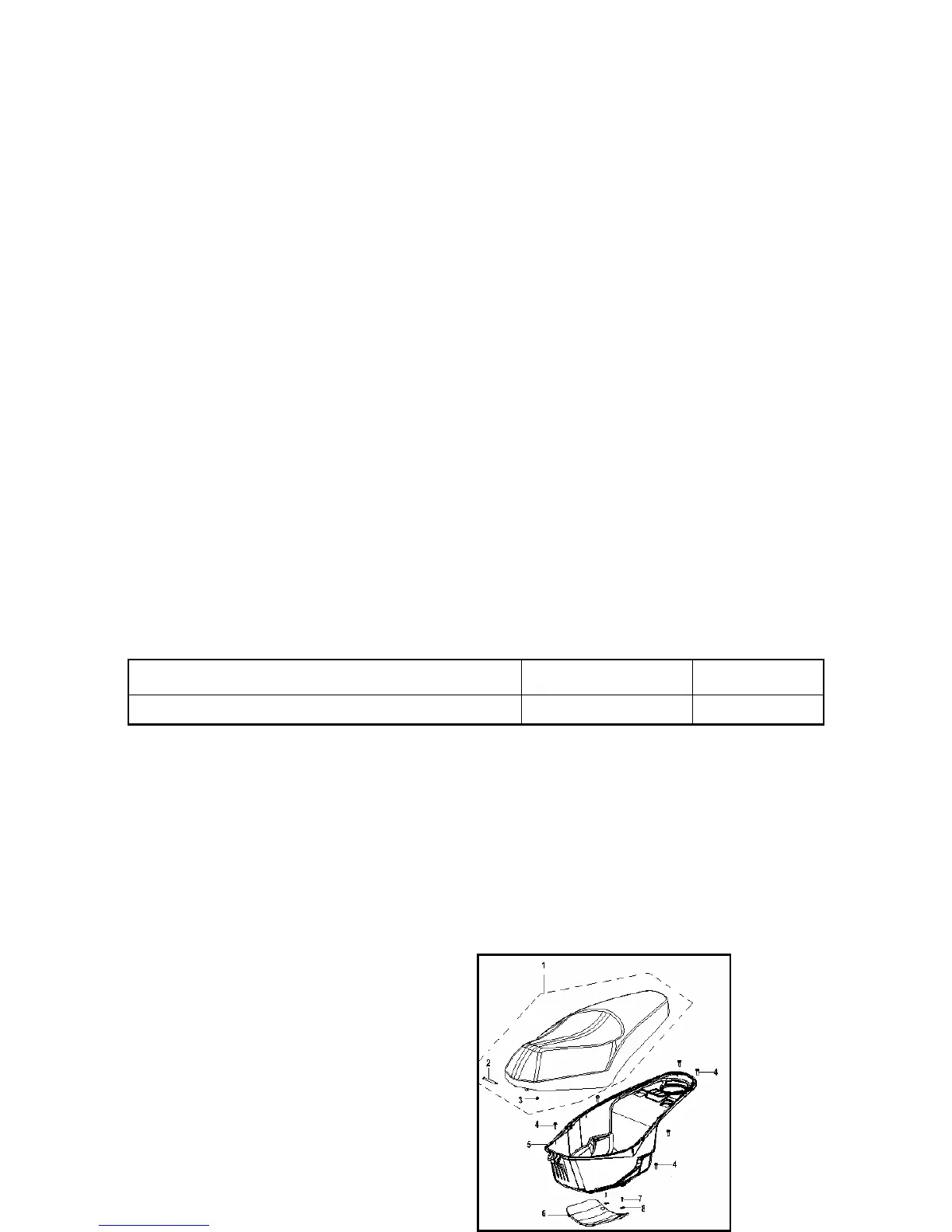

7 self-tapping screw ST4.2×13 8 clip sheet ST4.2
9. Tank/seat cushion
Preparation data-----------9.1
Fault diagnosis-----------9.2
Tank/seat cushion----------9.3
9.1 Preparation data
Operation precaution
Removing site should be away from the fire source.
When removing the tank, the switch of it must be turned at ―OFF‖.
When assembling, fasten the bolt and nut to the specified torque value.
After assembling, check whether all the parts have been installed correctly and whether the operation is correct.
Standard value
Locking torque
Rear shelf fixing screw 22-29 N·m
Tank fixing bolt 5 - 9 N·m
Helmet bucket fixing bolt 5 - 9 N·m
9.2 Fault diagnosis
Gasoline reducing
Gas naturally consumes
