10.3 Machine oil pump

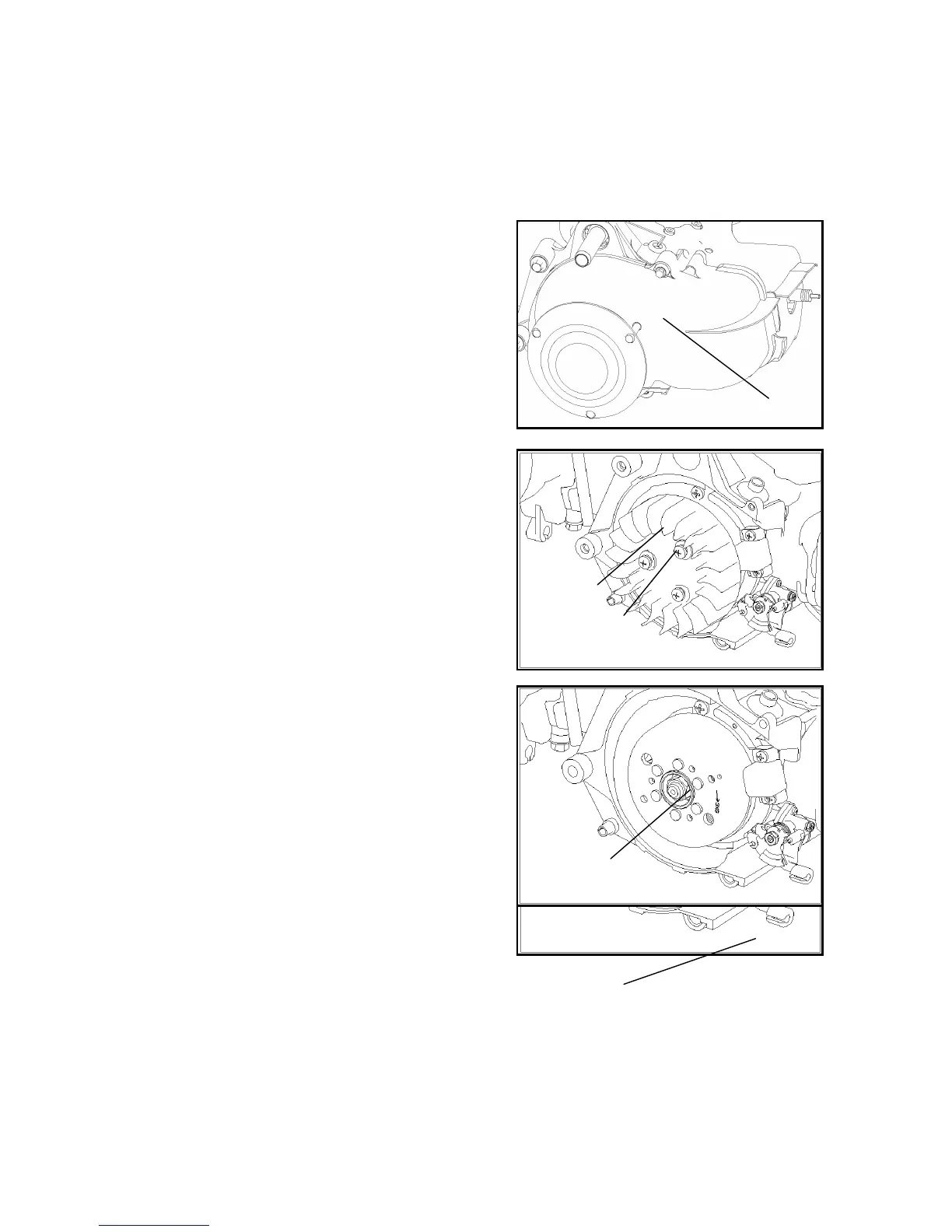

10.3.1 Removing
Loosen the bolt and remove the wind guiding cover
component.
Loosen the screw on the fan and remove the fan.
Remove the magnetic motor, rotor and bracket.
Remove the worm gear and machine oil component from the crane
Wind guiding cover
Machine oil pump component
Fan
Screw
Magnetic motor stator, rotator,
bracket
