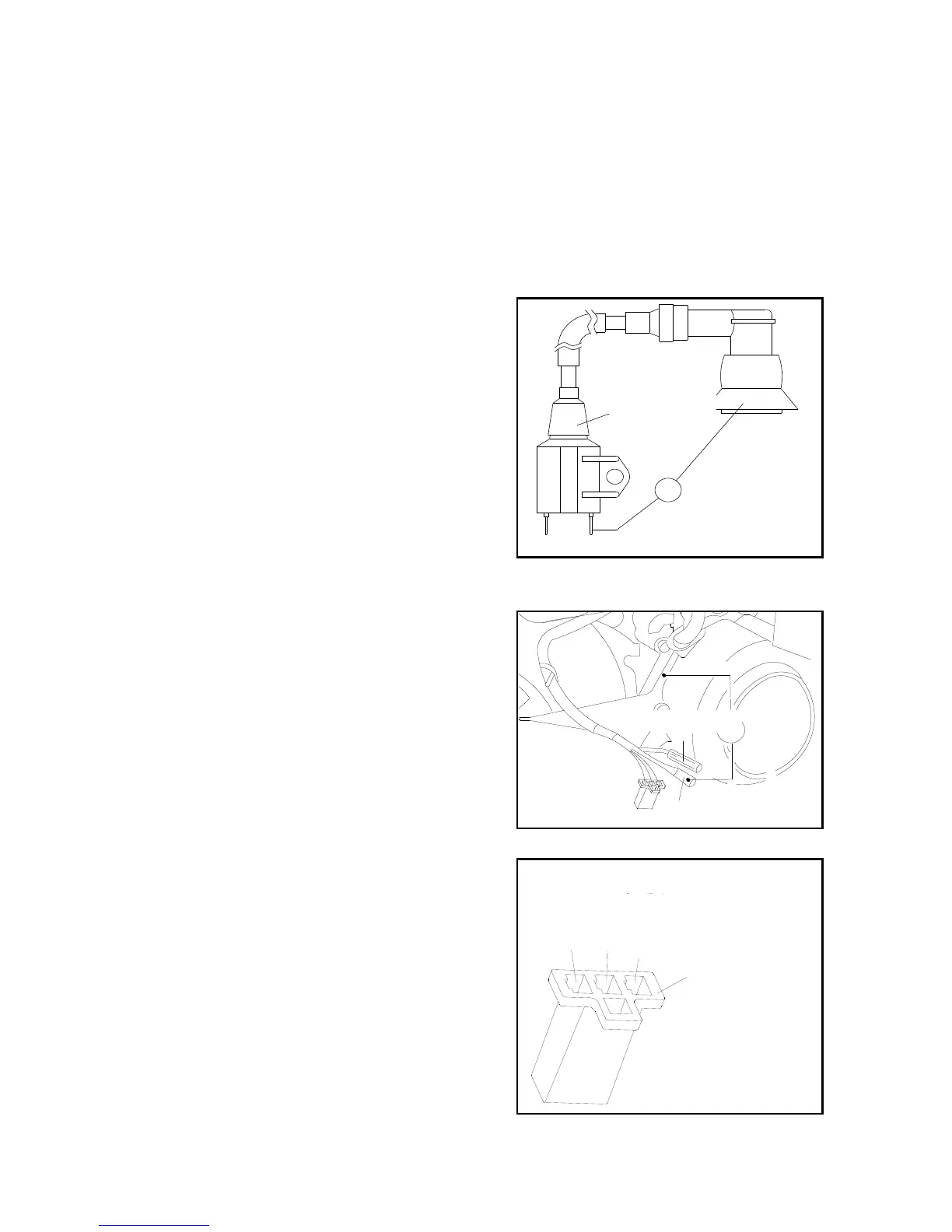

2.5.2 Primary Coil Inspection
Impedance measuring between the ends of the primary coil.
Standard Value：0.6Ω±10％（20℃）
Impedance value within the range is good.
If the impedance value is "∞", there is wire break in the coil. Replace it with a new one.
2.5.3 Secondary Coil
With a spark plug attached. Measure the impedance value
between the wire side and the end of the spark plug cap.
Standard Value：5-11KΩ（20℃）
If the impedance is "∞", there is wire break in the coil.
Remove the spark plug cap, measure the impedance
value between a side wire and the negative end.
Standard Value：0.5-5.5KΩ±10％（20℃）
2.6 Trigger
* Note
Make sure the trigger could be carried out on the engine.
Inspection
Remove the body shield.
Remove the wire adaptor of the trigger.。
Measure the impedance value between the blue/white end
of the wire at the engine side and the ground strap connection
of the body.
Standard Value：100-500Ω（20℃）
Change the alternator when the value is beyond the range of
the standard value.
To Next Page
