Warning！
• Battery should be far away from fire source
•Turn off the charger switches when starting or completing
charging in order to prevent spark of the connections resulting
in explosion.
• You must follow the required current time when charging.
*Note
• Except emergencies, you should not use emergency charge.
• Measure the voltage for every other 30 minutes.
Charging current：standard：0.4A
Emergency：4.0A
Charging time：standard：10-15h.
Emergency：30min.
Charging complete：closed circuit voltage: above12.8V

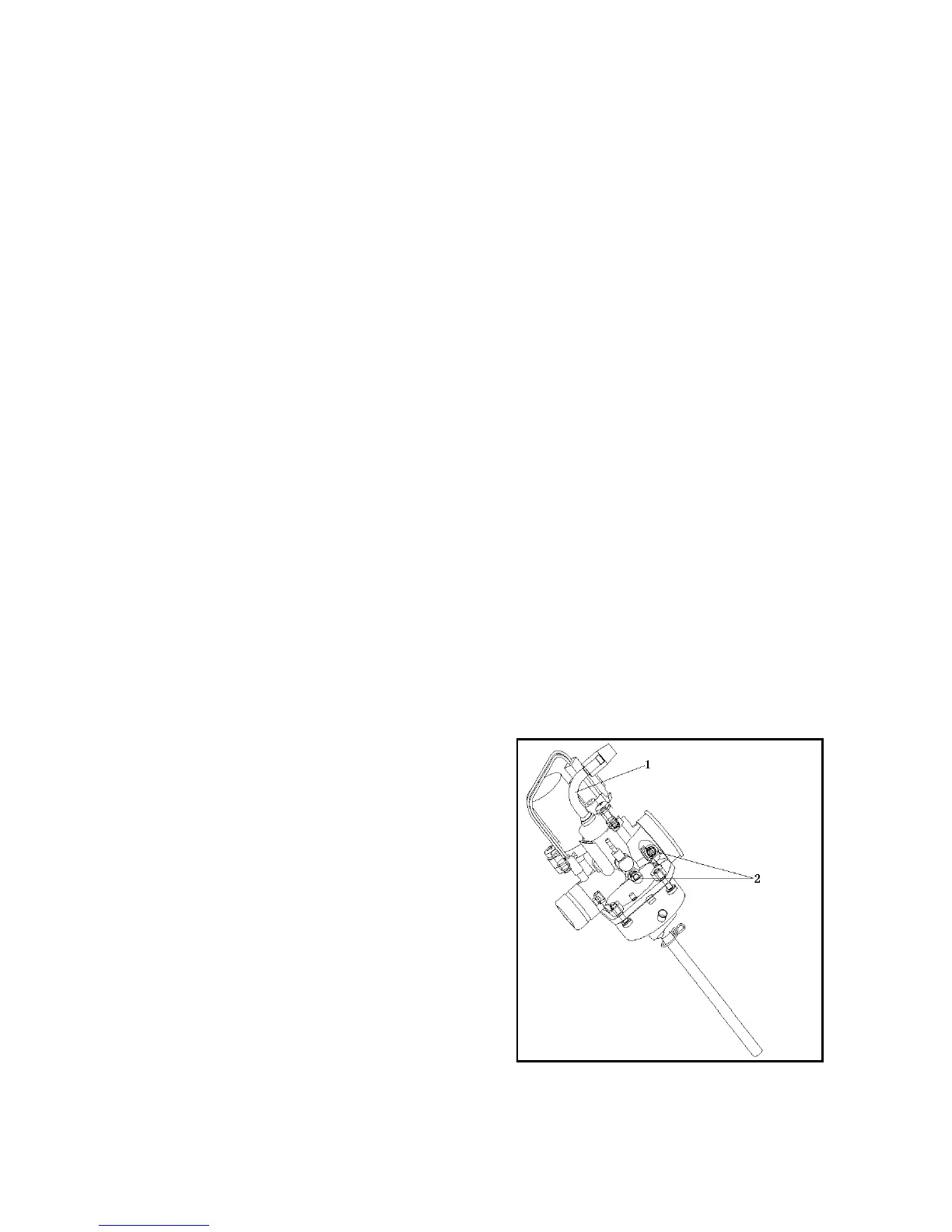

Carburetor
Idle speed adjustment
* Note
Idle adjustment was made in the implementation
of the engine warm-up state.
Implement after warm-up of the engine.
Connect the engine rotation meter after running the engine.
Adjust the screw of the cable accelerator to rotating velocity.
Idle speed：1800±100rpm/min
Adjust the idling adjusting screw when idle speed
is unstable or unsmooth after oiling lightly.
Ignition Timing
* Note
